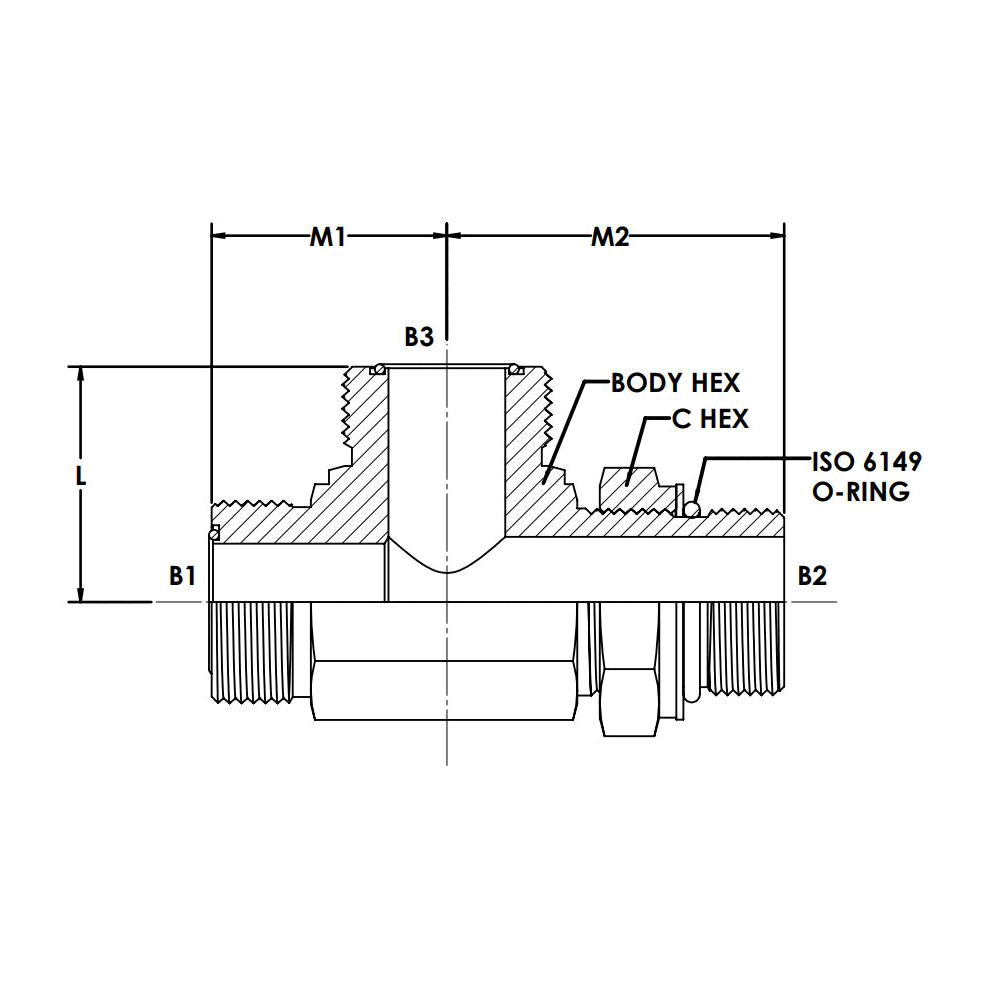

MFS-MMAORB-MFS ISO 6149 BRANCH TEE. MALE METRIC ADJUSTABLE ISO 6149
Description
Variations (1)
FS7350-24-48-24-NWO-FG-VITON
$0.00Attribute: FS7350-24-48-24-NWO-FG-VITON (24...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 2-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M48X2.0 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE 3 | MALE FACE SEAL O-RING |
| THREAD SIZE 3 | 2-12 |
| THREAD SPECIFICATION 3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
