Description

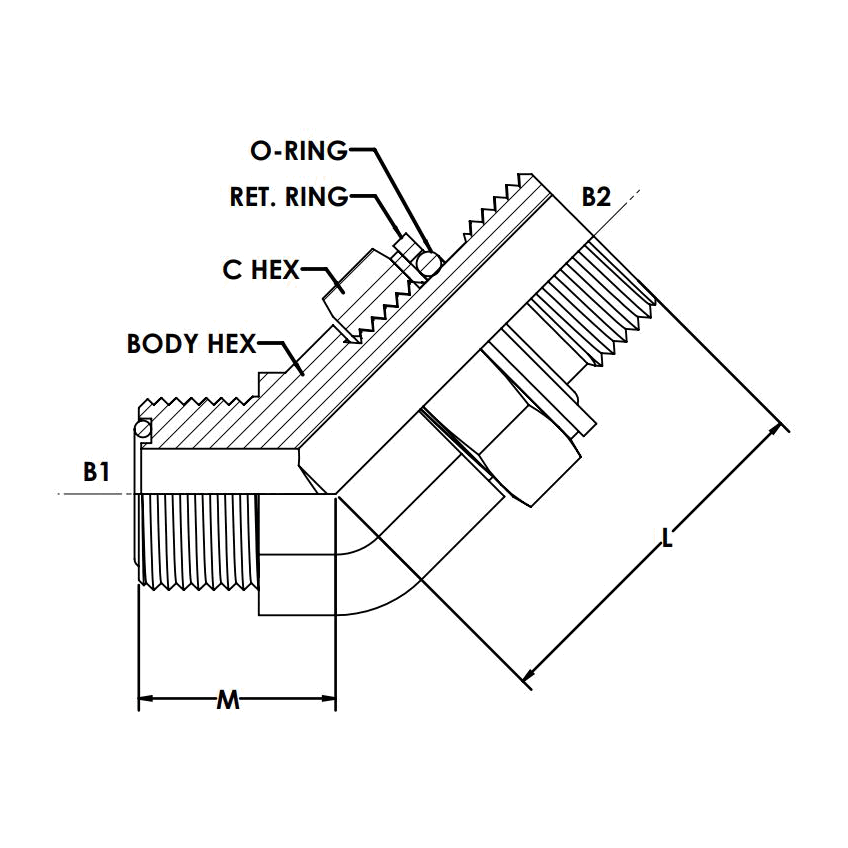

MFS-MBSPPAORB RR 45 ELBOW. MALE BSPP ADJUSTABLE WITH O-RING AND RETAINING RING
Description
Variations (15)
FS7102-04-02-NWO-FG
$20.93Attribute: FS7102-04-02-NWO-FG (04MFS-02MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-04-04-NWO-FG
$23.04Attribute: FS7102-04-04-NWO-FG (04MFS-04MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-06-04-NWO-FG
$24.02Attribute: FS7102-06-04-NWO-FG (06MFS-04MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-06-06-NWO-FG
$52.33Attribute: FS7102-06-06-NWO-FG (06MFS-06MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-06-08-NWO-FG
$64.57Attribute: FS7102-06-08-NWO-FG (06MFS-08MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-08-06-NWO-FG
$53.02Attribute: FS7102-08-06-NWO-FG (08MFS-06MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 13/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-08-08-NWO-FG
$54.39Attribute: FS7102-08-08-NWO-FG (08MFS-08MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 13/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-10-08-NWO-FG
$32.39Attribute: FS7102-10-08-NWO-FG (10MFS-08MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-14 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-10-10-NWO-FG
$101.45Attribute: FS7102-10-10-NWO-FG (10MFS-10MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-14 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 5/8-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-10-12-NWO-FG
$37.56Attribute: FS7102-10-12-NWO-FG (10MFS-12MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-14 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-12-12-NWO-FG
$63.94Attribute: FS7102-12-12-NWO-FG (12MFS-12MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-3/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-12-16-NWO-FG
$143.46Attribute: FS7102-12-16-NWO-FG (12MFS-16MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-3/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-16-12-NWO-FG
$109.18Attribute: FS7102-16-12-NWO-FG (16MFS-12MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-7/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-16-16-NWO-FG
$100.47Attribute: FS7102-16-16-NWO-FG (16MFS-16MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-7/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7102-20-20-NWO-FG
$156.44Attribute: FS7102-20-20-NWO-FG (20MFS-20MBS...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-11/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | Face Seal, BSP |
|---|---|
| Shape | Elbow |
