Description

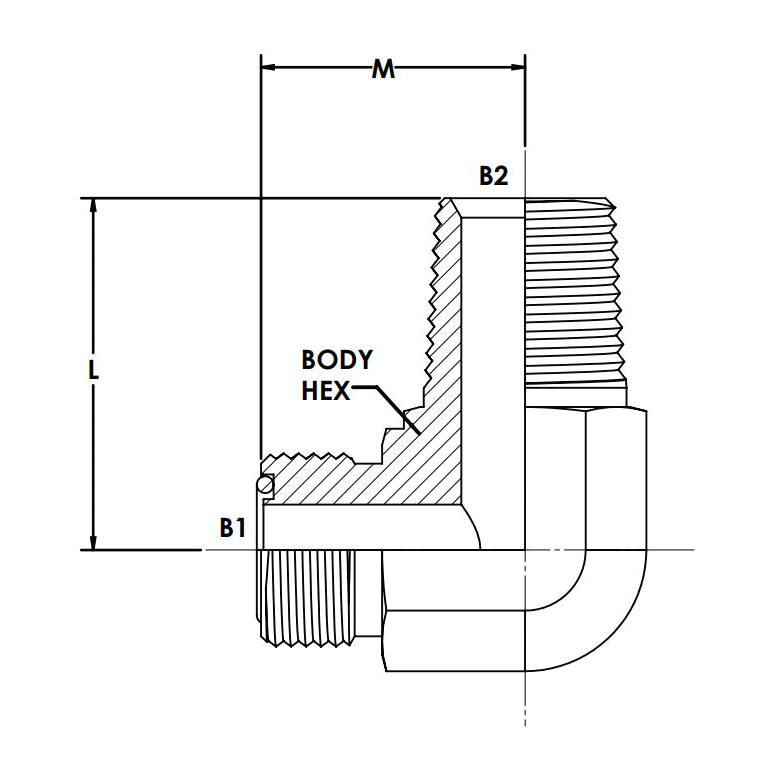

MFS-MBSPT 90 ELBOW
Description
Variations (3)
FS7200-04-04-SS
$184.10Attribute: FS7200-04-04-SS (04MFS-04MBSPT 9...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7200-06-06-SS
$278.29Attribute: FS7200-06-06-SS (06MFS-06MBSPT 9...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7200-08-06-SS
$233.27Attribute: FS7200-08-06-SS (08MFS-06MBSPT 9...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 13/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | Face Seal, BSP |
|---|---|
| Shape | Elbow |
