Description

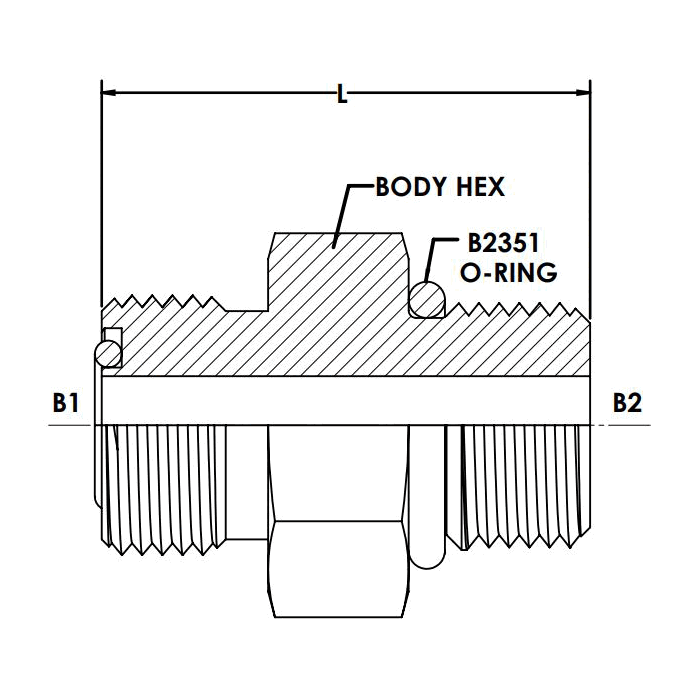

MFS-MBSPP B2351 STRAIGHT. JIS B2351 O-RING PORT
Description
Variations (2)
FS7013-12-12
$0.00Attribute: FS7013-12-12 (12MFS-12MBSPP B235...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-3/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP WITH JIS B2351 ORING |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | PORT ONLY |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7013-12-12-ZN
$0.00Attribute: FS7013-12-12-ZN (12MFS-12MBSPP B...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-3/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP WITH JIS B2351 ORING |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | PORT ONLY |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | Face Seal, BSP |
|---|---|
| Shape | Straight |
