Description

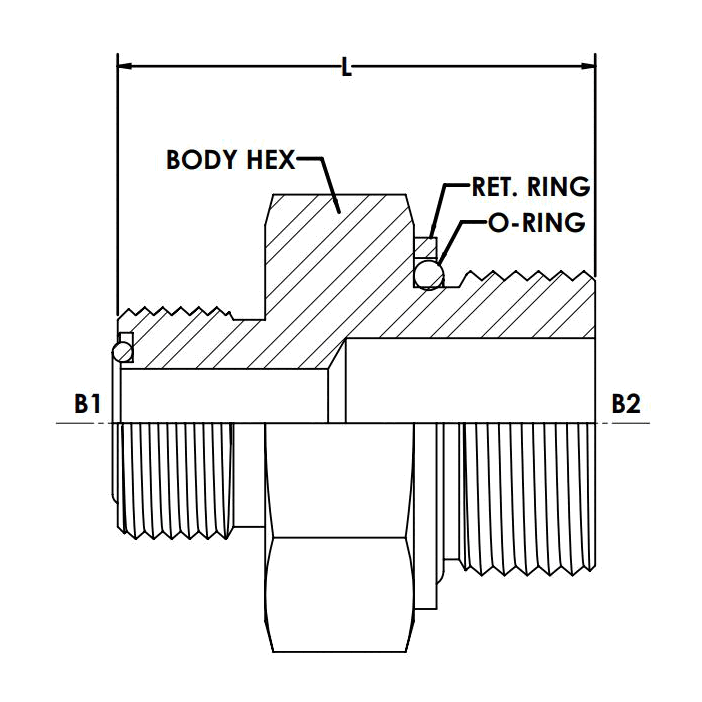

MFS-MM ORR STRAIGHT. METRIC O-RING AND RETAINING RING (FOR ISO 9974 PORT)
Description
Variations (15)
FS7001-04-10
$23.04Attribute: FS7001-04-10 (04MFS-10MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M10X1.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-04-12
$30.92Attribute: FS7001-04-12 (04MFS-12MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M12X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-04-14
$19.64Attribute: FS7001-04-14 (04MFS-14MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M14X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-06-12
$57.84Attribute: FS7001-06-12 (06MFS-12MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M12X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-06-14
$20.43Attribute: FS7001-06-14 (06MFS-14MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M14X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-06-16
$29.49Attribute: FS7001-06-16 (06MFS-16MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M16X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-06-18
$36.33Attribute: FS7001-06-18 (06MFS-18MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M18X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-06-18-VITON
$43.47Attribute: FS7001-06-18-VITON (06MFS-18MM O...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M18X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-06-27
$40.07Attribute: FS7001-06-27 (06MFS-27MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M27X2.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-08-18-VITON
$35.37Attribute: FS7001-08-18-VITON (08MFS-18MM O...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 13/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M18X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-08-22
$44.35Attribute: FS7001-08-22 (08MFS-22MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 13/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M22X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-08-27
$45.82Attribute: FS7001-08-27 (08MFS-27MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 13/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M27X2.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-10-22
$63.01Attribute: FS7001-10-22 (10MFS-22MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-14 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M22X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-12-22
$66.55Attribute: FS7001-12-22 (12MFS-22MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-3/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M22X1.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7001-16-27
$181.39Attribute: FS7001-16-27 (16MFS-27MM ORR Str...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-7/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M27X2.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | Face Seal, Metric |
|---|---|
| Shape | Straight |
