Description
BONDED SEAL FOR BRITISH PARALLEL THREAD
Description
Variations (39)
9900-02
$1.47Attribute: 9900-02 (02 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 02 MBSPP |

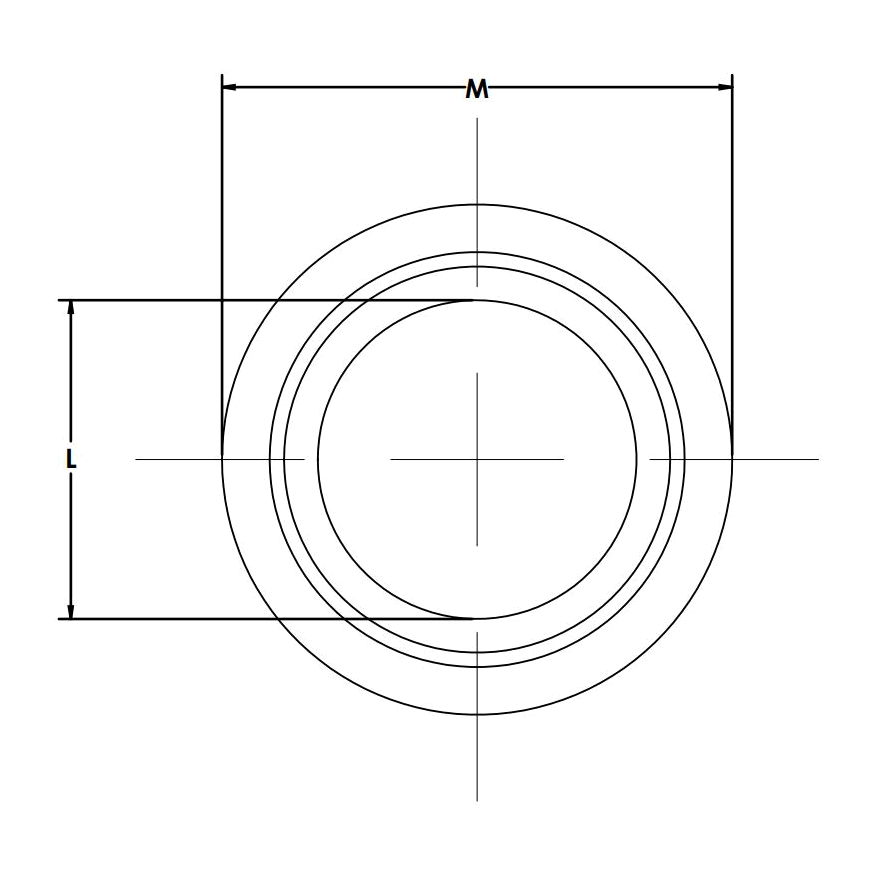

| DIAMETER L (MM) | 8.56 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 15.88 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.031 |
9900-02-SS
$8.12Attribute: 9900-02-SS (02 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 02 MBSPP |
| DIAMETER L (MM) | 8.56 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 15.88 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.005 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.031 |
9900-02-SS-VITON
$25.88Attribute: 9900-02-SS-VITON (02 BSPP Bonded...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 02 MBSPP |
| DIAMETER L (MM) | 8.56 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 15.88 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.031 |
9900-02-VITON
$8.61Attribute: 9900-02-VITON (02 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 02 MBSPP |
| DIAMETER L (MM) | 8.56 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 15.88 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.031 |
9900-04
$2.21Attribute: 9900-04 (04 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 04 MBSPP |
| DIAMETER L (MM) | 11.45 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 20.57 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.052 |
9900-04-SS
$14.76Attribute: 9900-04-SS (04 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 04 MBSPP |
| DIAMETER L (MM) | 11.45 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 20.57 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.013 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.052 |
9900-04-SS-VITON
$21.90Attribute: 9900-04-SS-VITON (04 BSPP Bonded...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 04 MBSPP |
| DIAMETER L (MM) | 11.45 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 20.57 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.019 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.052 |
9900-04-VITON
$9.35Attribute: 9900-04-VITON (04 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 04 MBSPP |
| DIAMETER L (MM) | 11.45 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 20.57 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.013 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.052 |
9900-06
$2.41Attribute: 9900-06 (06 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 06 MBSPP |
| DIAMETER L (MM) | 14.96 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 23.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.012 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.070 |
9900-06-SS
$22.60Attribute: 9900-06-SS (06 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 06 MBSPP |
| DIAMETER L (MM) | 14.96 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 23.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.070 |
9900-06-SS-VITON
$29.73Attribute: 9900-06-SS-VITON (06 BSPP Bonded...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 06 MBSPP |
| DIAMETER L (MM) | 14.96 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 23.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.070 |
9900-06-VITON
$9.55Attribute: 9900-06-VITON (06 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 06 MBSPP |
| DIAMETER L (MM) | 14.96 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.03 |
| DIAMETER M (MM) | 23.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.013 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.070 |
9900-08
$2.56Attribute: 9900-08 (08 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 08 MBSPP |
| DIAMETER L (MM) | 18.64 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.0 |
| DIAMETER M (MM) | 28.58 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.012 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.100 |
9900-08-SS
$19.89Attribute: 9900-08-SS (08 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 08 MBSPP |
| DIAMETER L (MM) | 18.64 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.0 |
| DIAMETER M (MM) | 28.58 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.013 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.100 |
9900-08-SS-VITON
$27.02Attribute: 9900-08-SS-VITON (08 BSPP Bonded...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 08 MBSPP |
| DIAMETER L (MM) | 18.64 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.0 |
| DIAMETER M (MM) | 28.58 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.013 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.100 |
9900-08-VITON
$9.69Attribute: 9900-08-VITON (08 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 08 MBSPP |
| DIAMETER L (MM) | 18.64 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.0 |
| DIAMETER M (MM) | 28.58 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.009 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.100 |
9900-10
$4.97Attribute: 9900-10 (10 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 10 MBSPP |
| DIAMETER L (MM) | 20.6 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 31.75 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.019 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.154 |
9900-10-SS
$24.47Attribute: 9900-10-SS (10 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 10 MBSPP |
| DIAMETER L (MM) | 20.6 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 31.75 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.014 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.154 |
9900-10-SS-VITON
$36.97Attribute: 9900-10-SS-VITON (10 BSPP Bonded...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 10 MBSPP |
| DIAMETER L (MM) | 20.6 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 31.75 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.154 |
9900-10-VITON
$12.11Attribute: 9900-10-VITON (10 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 10 MBSPP |
| DIAMETER L (MM) | 20.6 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 31.75 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.019 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.154 |
9900-12
$5.51Attribute: 9900-12 (12 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 12 MBSPP |
| DIAMETER L (MM) | 24.13 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.0 |
| DIAMETER M (MM) | 34.93 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.018 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.149 |
9900-12-SS
$24.47Attribute: 9900-12-SS (12 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 12 MBSPP |
| DIAMETER L (MM) | 24.13 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.0 |
| DIAMETER M (MM) | 34.93 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.019 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.149 |
9900-12-SS-VITON
$31.60Attribute: 9900-12-SS-VITON (12 BSPP Bonded...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 12 MBSPP |
| DIAMETER L (MM) | 24.13 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.0 |
| DIAMETER M (MM) | 34.93 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.149 |
9900-12-VITON
$12.65Attribute: 9900-12-VITON (12 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 12 MBSPP |
| DIAMETER L (MM) | 24.13 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.0 |
| DIAMETER M (MM) | 34.93 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.013 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.149 |
9900-16
$6.11Attribute: 9900-16 (16 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 16 MBSPP |
| DIAMETER L (MM) | 30.3 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 42.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.279 |
9900-16-SS
$42.73Attribute: 9900-16-SS (16 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 02 MBSPP |
| DIAMETER L (MM) | 30.3 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 42.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.019 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.279 |
9900-16-SS-VITON
$64.69Attribute: 9900-16-SS-VITON (16 BSPP Bonded...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 16 MBSPP |
| DIAMETER L (MM) | 30.3 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 42.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.279 |
9900-16-VITON
$13.25Attribute: 9900-16-VITON (16 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 16 MBSPP |
| DIAMETER L (MM) | 30.3 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 42.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.019 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.279 |
9900-20
$10.09Attribute: 9900-20 (20 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 20 MBSPP |
| DIAMETER L (MM) | 38.96 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 52.38 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.419 |
9900-20-SS
$61.04Attribute: 9900-20-SS (20 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 20 MBSPP |
| DIAMETER L (MM) | 38.96 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 52.38 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.419 |
9900-20-VITON
$17.23Attribute: 9900-20-VITON (20 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 20 MBSPP |
| DIAMETER L (MM) | 38.96 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 52.38 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.030 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.419 |
9900-24
$14.47Attribute: 9900-24 (24 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 24 MBSPP |
| DIAMETER L (MM) | 44.86 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 58.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.038 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.524 |
9900-24-SS
$77.33Attribute: 9900-24-SS (24 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 24 MBSPP |
| DIAMETER L (MM) | 44.86 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 58.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.056 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.524 |
9900-24-VITON
$21.61Attribute: 9900-24-VITON (24 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 24 MBSPP |
| DIAMETER L (MM) | 44.86 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 58.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.029 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.524 |
9900-32
$21.27Attribute: 9900-32 (32 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 32 MBSPP |
| DIAMETER L (MM) | 56.67 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 73.03 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.056 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.814 |
9900-32-SS
$182.82Attribute: 9900-32-SS (32 BSPP Bonded Seal ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 32 MBSPP |
| DIAMETER L (MM) | 56.67 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 73.03 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.050 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.814 |
9900-32-VITON
$28.41Attribute: 9900-32-VITON (32 BSPP Bonded Se...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 32 MBSPP |
| DIAMETER L (MM) | 56.67 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 73.03 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.044 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.814 |
9900-40
$59.71Attribute: 9900-40 (40 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 40 MBSPP |
| THREAD SPECIFICATION B1 | ISO 1179 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9900-48
$204.95Attribute: 9900-48 (48 BSPP Bonded Seal 90 ...)
Stock Status: True
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
|---|---|
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 48 MBSPP |
| THREAD SPECIFICATION B1 | ISO 1179 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | Other |
|---|---|
| Shape | Other |
PDF Documents
No PDF documents scraped.
