Description

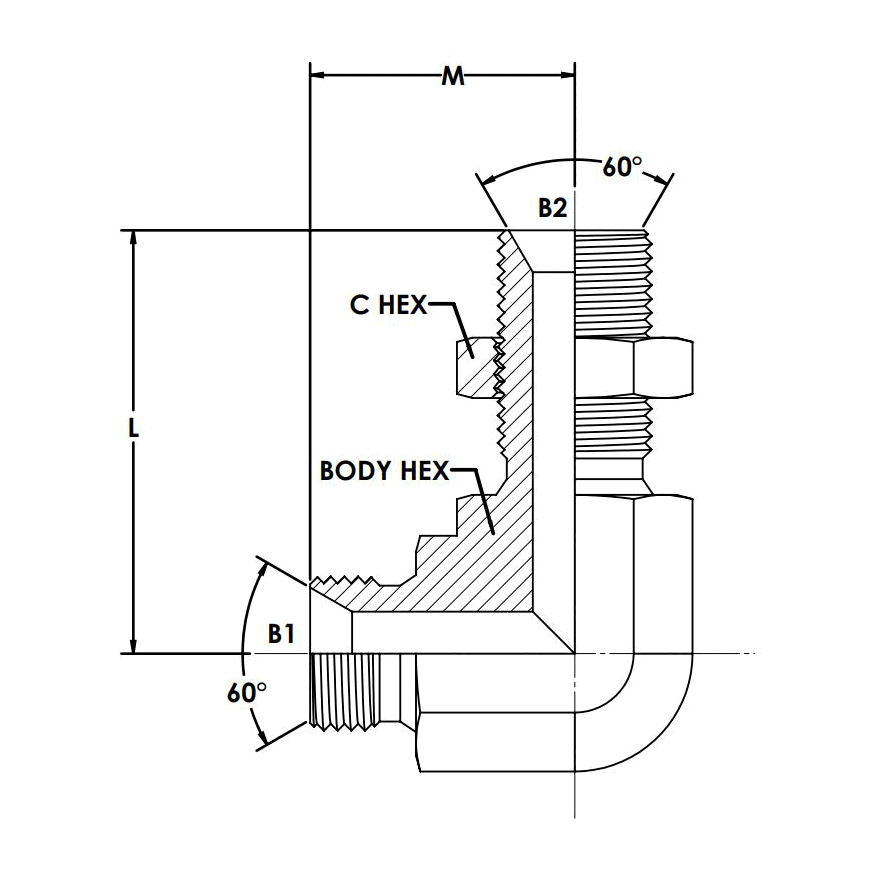

MBSPP-MBSPP BULKHEAD 90 ELBOW WITH BULKHEAD LOCK NUT
Description
Variations (5)
9725-04-04-LN
$18.96Attribute: 9725-04-04-LN (04MBSPP-04MBSPP B...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP BULKHEAD WITH LN |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| ASSEMBLED BSPP LOCK NUT | 9925-04 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9725-06-06-LN
$42.38Attribute: 9725-06-06-LN (06MBSPP-06MBSPP B...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP BULKHEAD WITH LN |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| ASSEMBLED BSPP LOCK NUT | 9925-06 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9725-08-08-LN
$30.86Attribute: 9725-08-08-LN (08MBSPP-08MBSPP B...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP BULKHEAD WITH LN |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| ASSEMBLED BSPP LOCK NUT | 9925-08 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9725-12-12-LN
$42.53Attribute: 9725-12-12-LN (12MBSPP-12MBSPP B...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP BULKHEAD WITH LN |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| ASSEMBLED BSPP LOCK NUT | 9925-12 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9725-16-16-LN
$142.21Attribute: 9725-16-16-LN (16MBSPP-16MBSPP B...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP BULKHEAD WITH LN |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| ASSEMBLED BSPP LOCK NUT | 9925-16 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Elbow |
