9722-LN

9722-02-02-LN

$5.31

Attribute: 9722-02-02-LN (02MBSPP-02MBSPP B...)

Stock Status: True

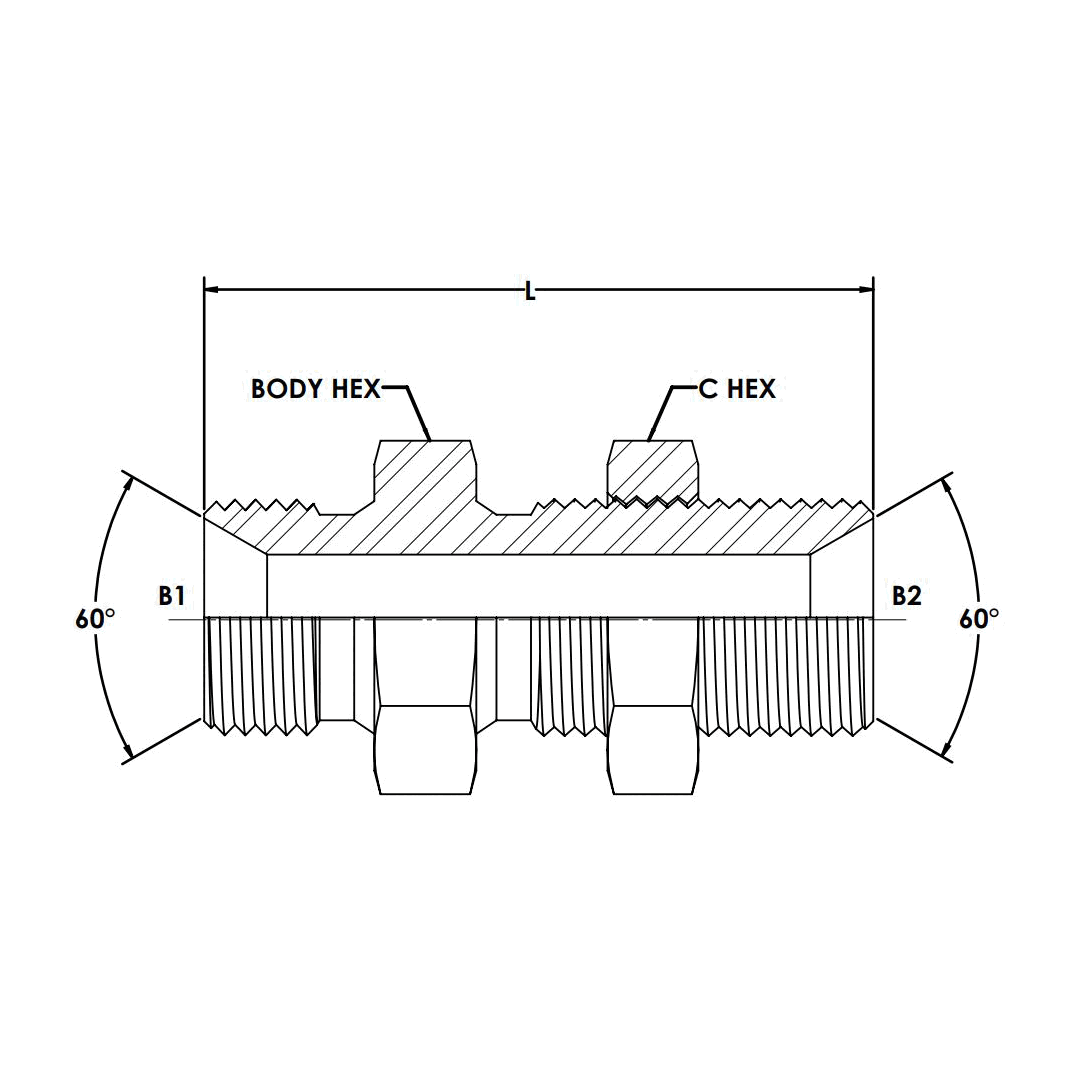

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-02
BODY HEX (MM)	14.0
C HEX 1 (MM)	14.0
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.455

9722-04-04-LN

$25.60

Attribute: 9722-04-04-LN (04MBSPP-04MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-04
BODY HEX (MM)	19.0
C HEX 1 (MM)	19.0
OVERALL LENGTH L (MM)	44.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.985

9722-04-04-LN-SS

$157.03

Attribute: 9722-04-04-LN-SS (04MBSPP-04MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-04-SS
BODY HEX (MM)	19.0
C HEX 1 (MM)	19.0
OVERALL LENGTH L (MM)	44.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.985

9722-04-06-LN

$40.51

Attribute: 9722-04-06-LN (04MBSPP-06MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-06
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.506

9722-06-04-LN

$36.82

Attribute: 9722-06-04-LN (06MBSPP-04MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-04
BODY HEX (MM)	22.0
C HEX 1 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-06-06-LN

$34.95

Attribute: 9722-06-06-LN (06MBSPP-06MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-06
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.477

9722-06-06-LN-SS

$189.71

Attribute: 9722-06-06-LN-SS (06MBSPP-06MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-06-SS
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.477

9722-06-08-LN

$37.16

Attribute: 9722-06-08-LN (06MBSPP-08MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-08
BODY HEX (MM)	27.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	4.400
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.580

9722-08-06-LN

$41.88

Attribute: 9722-08-06-LN (08MBSPP-06MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-06
BODY HEX (MM)	27.0
C HEX 1 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-08-08-LN

$42.68

Attribute: 9722-08-08-LN (08MBSPP-08MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-08
BODY HEX (MM)	27.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L (MM)	59.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.625

9722-08-08-LN-SS

$340.73

Attribute: 9722-08-08-LN-SS (08MBSPP-08MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-08-SS
BODY HEX (MM)	27.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L (MM)	59.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.625

9722-08-10-LN

$48.68

Attribute: 9722-08-10-LN (08MBSPP-10MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-10
BODY HEX (MM)	30.0
C HEX 1 (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-08-12-LN

$104.89

Attribute: 9722-08-12-LN (08MBSPP-12MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-12
BODY HEX (MM)	36.0
C HEX 1 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-10-10-LN

$53.30

Attribute: 9722-10-10-LN (10MBSPP-10MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-10
BODY HEX (MM)	30.0
C HEX 1 (MM)	30.0
OVERALL LENGTH L (MM)	63.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.275
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.488

9722-10-10-LN-SS

$369.32

Attribute: 9722-10-10-LN-SS (10MBSPP-10MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-10-SS
BODY HEX (MM)	30.0
C HEX 1 (MM)	30.0
OVERALL LENGTH L (MM)	63.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.488

9722-12-08-LN

$59.71

Attribute: 9722-12-08-LN (12MBSPP-08MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-08
BODY HEX (MM)	32.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.749

9722-12-12-LN

$72.56

Attribute: 9722-12-12-LN (12MBSPP-12MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-12
BODY HEX (MM)	36.0
C HEX 1 (MM)	32.0
OVERALL LENGTH L (MM)	66.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.413
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.220

9722-12-12-LN-SS

$328.80

Attribute: 9722-12-12-LN-SS (12MBSPP-12MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-12-SS
BODY HEX (MM)	36.0
C HEX 1 (MM)	32.0
OVERALL LENGTH L (MM)	66.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.220

9722-12-16-LN

$108.29

Attribute: 9722-12-16-LN (12MBSPP-16MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-16
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-16-12-LN

$83.54

Attribute: 9722-16-12-LN (16MBSPP-12MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-12
BODY HEX (MM)	41.0
C HEX 1 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-16-16-LN

$98.10

Attribute: 9722-16-16-LN (16MBSPP-16MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-16
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
OVERALL LENGTH L (MM)	74.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.731
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.591

9722-16-16-LN-SS

$519.81

Attribute: 9722-16-16-LN-SS (16MBSPP-16MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-16-SS
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
OVERALL LENGTH L (MM)	74.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.591

9722-20-20-LN

$156.00

Attribute: 9722-20-20-LN (20MBSPP-20MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-20
C HEX 1 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.038
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-20-20-LN-SS

$1,111.85

Attribute: 9722-20-20-LN-SS (20MBSPP-20MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-20-SS
C HEX 1 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-24-24-LN

$182.86

Attribute: 9722-24-24-LN (24MBSPP-24MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-24
BODY HEX (MM)	55.0
C HEX 1 (MM)	55.0
OVERALL LENGTH L (MM)	85.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.550
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.783

9722-24-24-LN-SS

$1,872.31

Attribute: 9722-24-24-LN-SS (24MBSPP-24MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-24-SS
C HEX 1 (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9722-32-32-LN

$319.80

Attribute: 9722-32-32-LN (32MBSPP-32MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP BULKHEAD WITH LN
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
ASSEMBLED BSPP LOCK NUT	9925-32
C HEX 1 (MM)	70.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	2.250
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	BSP
Shape	Straight

ID	10151278
Category	Conversion Adapters

Description

Description

Variations (27)

9722-02-02-LN

9722-04-04-LN

9722-04-04-LN-SS

9722-04-06-LN

9722-06-04-LN

9722-06-06-LN

9722-06-06-LN-SS

9722-06-08-LN

9722-08-06-LN

9722-08-08-LN

9722-08-08-LN-SS

9722-08-10-LN

9722-08-12-LN

9722-10-10-LN

9722-10-10-LN-SS

9722-12-08-LN

9722-12-12-LN

9722-12-12-LN-SS

9722-12-16-LN

9722-16-12-LN

9722-16-16-LN

9722-16-16-LN-SS

9722-20-20-LN

9722-20-20-LN-SS

9722-24-24-LN

9722-24-24-LN-SS

9722-32-32-LN

General Attributes

PDF Documents
