9650-FG

9650-04-04-04-04-FG

$54.15

Attribute: 9650-04-04-04-04-FG (04MBSPP-04M...)

Stock Status: True

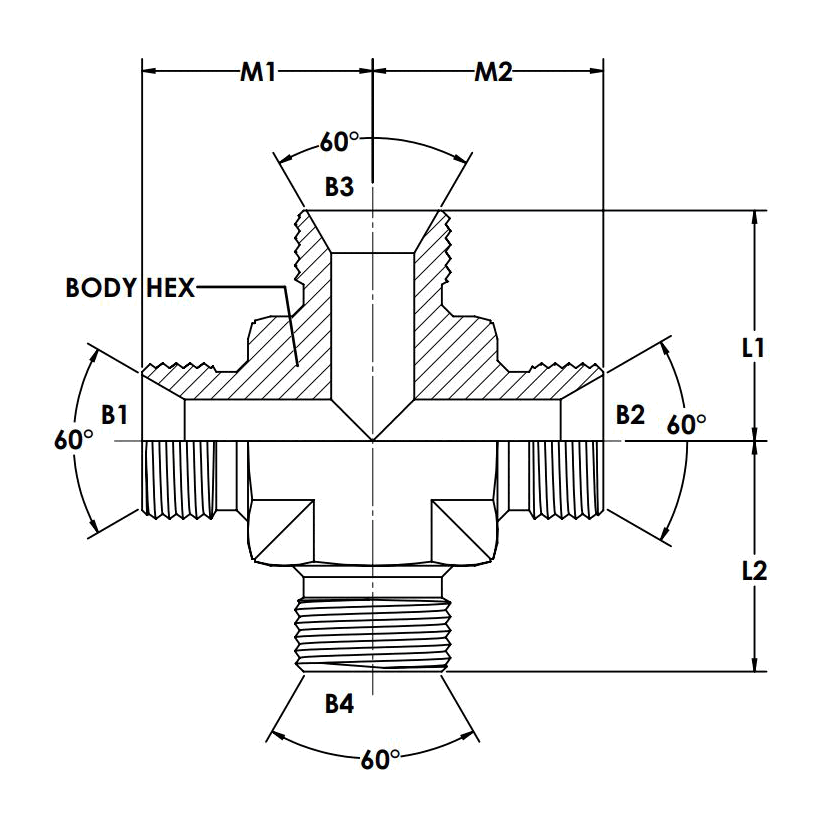

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	6.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	1/4-19
THREAD DRILL B4 (MM)	6.0
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.05
CENTERLINE LENGTH M1 (MM)	22.5
CENTERLINE LENGTH M2 (MM)	22.5
CENTERLINE LENGTH L1 (MM)	22.5
CENTERLINE LENGTH L2 (MM)	22.5
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.354

9650-04-04-04-04-SS

$1,886.91

Attribute: 9650-04-04-04-04-SS (04MBSPP-04M...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	6.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	1/4-19
THREAD DRILL B4 (MM)	6.0
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.05
CENTERLINE LENGTH M1 (MM)	22.5
CENTERLINE LENGTH M2 (MM)	22.5
CENTERLINE LENGTH L1 (MM)	22.5
CENTERLINE LENGTH L2 (MM)	22.5
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.354

9650-06-06-06-06-FG

$39.33

Attribute: 9650-06-06-06-06-FG (06MBSPP-06M...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	8.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	8.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	8.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	3/8-19
THREAD DRILL B4 (MM)	8.0
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.22
CENTERLINE LENGTH M1 (MM)	26.5
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH L1 (MM)	26.5
CENTERLINE LENGTH L2 (MM)	26.5
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.809

9650-06-06-06-06-SS

$1,936.93

Attribute: 9650-06-06-06-06-SS (06MBSPP-06M...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	8.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	8.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	8.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	3/8-19
THREAD DRILL B4 (MM)	8.0
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.22
CENTERLINE LENGTH M1 (MM)	26.5
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH L1 (MM)	26.5
CENTERLINE LENGTH L2 (MM)	26.5
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.809

9650-08-08-08-08-FG

$93.87

Attribute: 9650-08-08-08-08-FG (08MBSPP-08M...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	1/2-14
THREAD DRILL B4 (MM)	11.0
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	30.5
CENTERLINE LENGTH L2 (MM)	30.5
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	8.300
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.131

9650-12-12-12-12-FG

$139.41

Attribute: 9650-12-12-12-12-FG (12MBSPP-12M...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	14.3
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	3/4-14
THREAD DRILL B4 (MM)	14.3
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	33.32
CENTERLINE LENGTH M1 (MM)	35.5
CENTERLINE LENGTH M2 (MM)	35.5
CENTERLINE LENGTH L1 (MM)	35.5
CENTERLINE LENGTH L2 (MM)	35.5
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.250

9650-16-16-16-16-FG

$243.76

Attribute: 9650-16-16-16-16-FG (16MBSPP-16M...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	20.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-11
THREAD DRILL B3 (MM)	20.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	1-11
THREAD DRILL B4 (MM)	20.0
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.27
CENTERLINE LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	45.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.400

9650-16-16-16-16-SS

$4,325.90

Attribute: 9650-16-16-16-16-SS (16MBSPP-16M...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	20.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-11
THREAD DRILL B3 (MM)	20.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	1-11
THREAD DRILL B4 (MM)	20.0
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.27
CENTERLINE LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	45.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.400

9650-20-20-20-20-FG

$770.31

Attribute: 9650-20-20-20-20-FG (20MBSPP-20M...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-1/4-11
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B4	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B4	1-1/4-11
THREAD SPECIFICATION B4	60 DEG SEAT SWIVEL CONNECTION
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	BSP
Shape	Cross

ID	10151248
Category	Conversion Adapters

Description

Description

Variations (9)

9650-04-04-04-04-FG

9650-04-04-04-04-SS

9650-06-06-06-06-FG

9650-06-06-06-06-SS

9650-08-08-08-08-FG

9650-12-12-12-12-FG

9650-16-16-16-16-FG

9650-16-16-16-16-SS

9650-20-20-20-20-FG
