9644-C

9644-C-02

$16.29

Attribute: 9644-C-02 (02FBSPP Cap (Insert &...)

Stock Status: True

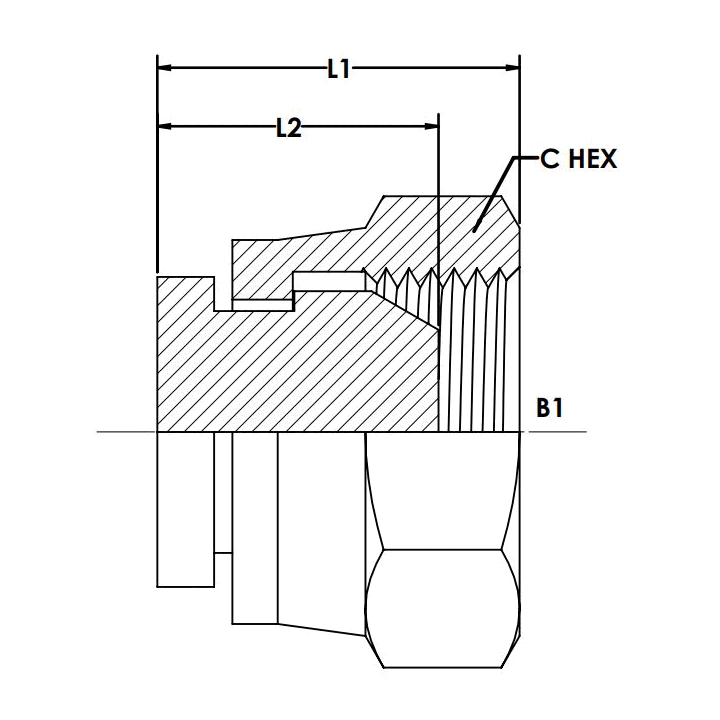

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	22.5
OVERALL LENGTH L2 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.044
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.269

9644-C-02-SS

$82.21

Attribute: 9644-C-02-SS (02FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	22.5
OVERALL LENGTH L2 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.269

9644-C-04

$16.93

Attribute: 9644-C-04 (04FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	18.4
OVERALL LENGTH L2 (MM)	13.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.405

9644-C-04-SS

$141.86

Attribute: 9644-C-04-SS (04FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	18.4
OVERALL LENGTH L2 (MM)	13.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.405

9644-C-06

$18.56

Attribute: 9644-C-06 (06FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	22.15
OVERALL LENGTH L2 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.654

9644-C-06-SS

$185.67

Attribute: 9644-C-06-SS (06FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	22.15
OVERALL LENGTH L2 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.654

9644-C-08

$21.95

Attribute: 9644-C-08 (08FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	25.45
OVERALL LENGTH L2 (MM)	18.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.132

9644-C-08-SS

$191.09

Attribute: 9644-C-08-SS (08FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	25.45
OVERALL LENGTH L2 (MM)	18.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.132

9644-C-10

$23.43

Attribute: 9644-C-10 (10FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	27.7
OVERALL LENGTH L2 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.188
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.521

9644-C-10-SS

$152.30

Attribute: 9644-C-10-SS (10FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	27.7
OVERALL LENGTH L2 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.521

9644-C-12

$31.75

Attribute: 9644-C-12 (12FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	28.05
OVERALL LENGTH L2 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.220
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.753

9644-C-12-SS

$268.67

Attribute: 9644-C-12-SS (12FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	28.05
OVERALL LENGTH L2 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.753

9644-C-16

$47.01

Attribute: 9644-C-16 (16FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	23.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.425
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.488

9644-C-16-SS

$447.21

Attribute: 9644-C-16-SS (16FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	23.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.488

9644-C-20

$87.12

Attribute: 9644-C-20 (20FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	25.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.806
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.492

9644-C-20-SS

$576.75

Attribute: 9644-C-20-SS (20FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	25.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.492

9644-C-24

$123.85

Attribute: 9644-C-24 (24FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	37.5
OVERALL LENGTH L2 (MM)	21.71
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.944
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.922

9644-C-24-SS

$589.41

Attribute: 9644-C-24-SS (24FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	37.5
OVERALL LENGTH L2 (MM)	21.71
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.922

9644-C-32

$257.64

Attribute: 9644-C-32 (32FBSPP Cap (Insert &...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	70.0
OVERALL LENGTH L1 (MM)	41.3
OVERALL LENGTH L2 (MM)	30.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.781
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.349

9644-C-32-SS

$809.06

Attribute: 9644-C-32-SS (32FBSPP Cap (Inser...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	70.0
OVERALL LENGTH L1 (MM)	41.3
OVERALL LENGTH L2 (MM)	30.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.349

ID	10151225
Category	Conversion Adapters

Description

Description

Variations (20)

9644-C-02

9644-C-02-SS

9644-C-04

9644-C-04-SS

9644-C-06

9644-C-06-SS

9644-C-08

9644-C-08-SS

9644-C-10

9644-C-10-SS

9644-C-12

9644-C-12-SS

9644-C-16

9644-C-16-SS

9644-C-20

9644-C-20-SS

9644-C-24

9644-C-24-SS

9644-C-32

9644-C-32-SS

General Attributes

PDF Documents

Connections	BSP
Shape	Cap
