9621-NWO-FG-ORR

9621-02-02-NWO-FG

$11.72

Attribute: 9621-02-02-NWO-FG (02MBSPP-02MBS...)

Stock Status: True

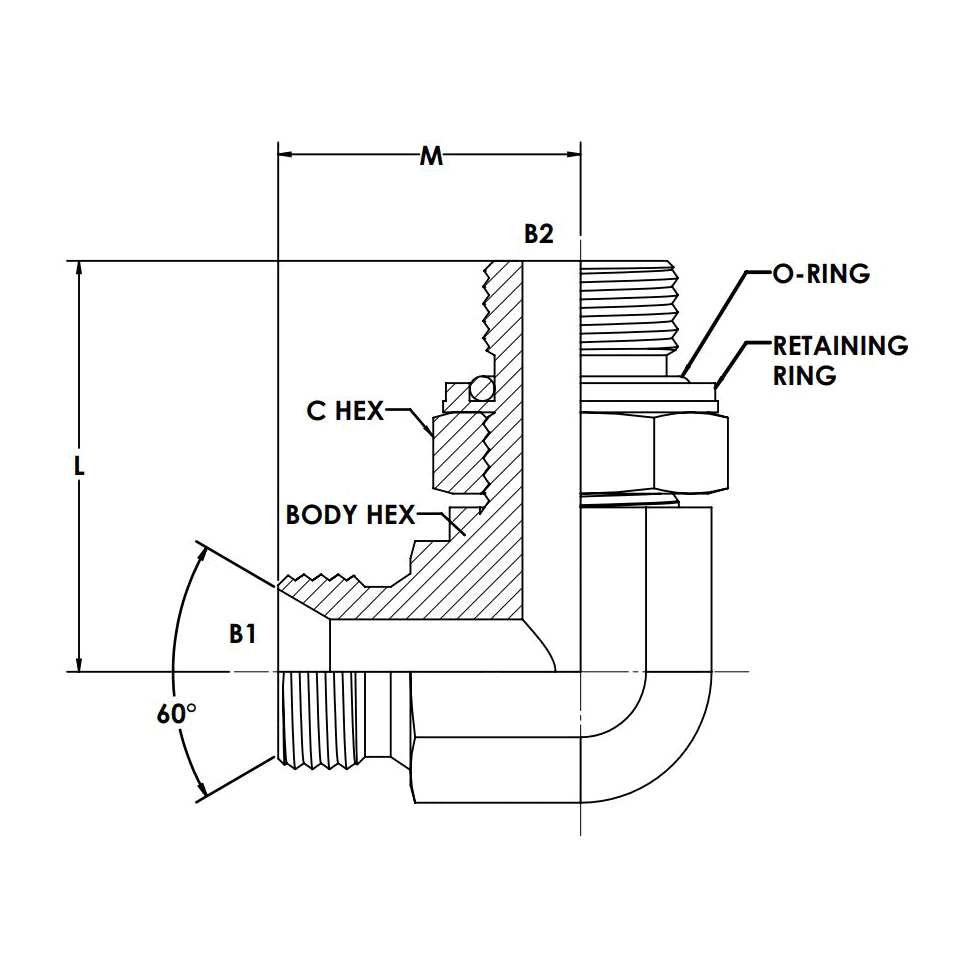

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	14.27
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M (MM)	17.5
CENTERLINE LENGTH L (MM)	26.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.711

9621-02-04-NWO-FG

$15.22

Attribute: 9621-02-04-NWO-FG (02MBSPP-04MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M (MM)	24.0
CENTERLINE LENGTH L (MM)	30.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.451

9621-04-02-NWO-FG

$28.99

Attribute: 9621-04-02-NWO-FG (04MBSPP-02MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	17.0
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M (MM)	26.0
CENTERLINE LENGTH L (MM)	26.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.235

9621-04-04-NWO-FG

$36.97

Attribute: 9621-04-04-NWO-FG (04MBSPP-04MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M (MM)	27.0
CENTERLINE LENGTH L (MM)	30.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.131
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.585

9621-04-04-NWO-SS

$236.62

Attribute: 9621-04-04-NWO-SS (04MBSPP-04MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M (MM)	27.0
CENTERLINE LENGTH L (MM)	30.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.585

9621-04-06-NWO-FG

$39.48

Attribute: 9621-04-06-NWO-FG (04MBSPP-06MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M (MM)	27.0
CENTERLINE LENGTH L (MM)	35.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.181

9621-04-08-NWO-FG

$49.18

Attribute: 9621-04-08-NWO-FG (04MBSPP-08MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9621-06-04-NWO-FG

$53.30

Attribute: 9621-06-04-NWO-FG (06MBSPP-04MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M (MM)	30.0
CENTERLINE LENGTH L (MM)	34.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.213
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.477

9621-06-06-NWO-FG

$43.81

Attribute: 9621-06-06-NWO-FG (06MBSPP-06MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M (MM)	30.0
CENTERLINE LENGTH L (MM)	34.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.477

9621-06-06-NWO-SS

$534.26

Attribute: 9621-06-06-NWO-SS (06MBSPP-06MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M (MM)	30.0
CENTERLINE LENGTH L (MM)	34.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.477

9621-06-08-NWO-FG

$35.34

Attribute: 9621-06-08-NWO-FG (06MBSPP-08MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M (MM)	32.0
CENTERLINE LENGTH L (MM)	44.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.897

9621-08-06-NWO-FG

$39.48

Attribute: 9621-08-06-NWO-FG (08MBSPP-06MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M (MM)	35.0
CENTERLINE LENGTH L (MM)	37.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.331
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.373

9621-08-08-NWO-FG

$44.94

Attribute: 9621-08-08-NWO-FG (08MBSPP-08MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M (MM)	32.0
CENTERLINE LENGTH L (MM)	43.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.463
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.024

9621-08-08-NWO-SS

$451.19

Attribute: 9621-08-08-NWO-SS (08MBSPP-08MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M (MM)	32.0
CENTERLINE LENGTH L (MM)	43.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.024

9621-08-12-NWO-FG

$79.84

Attribute: 9621-08-12-NWO-FG (08MBSPP-12MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	33.32
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M (MM)	40.0
CENTERLINE LENGTH L (MM)	53.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.671

9621-08-12-NWO-SS

$2,355.60

Attribute: 9621-08-12-NWO-SS (08MBSPP-12MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	33.32
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M (MM)	40.0
CENTERLINE LENGTH L (MM)	53.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.671

9621-10-10-NWO-FG

$132.50

Attribute: 9621-10-10-NWO-FG (10MBSPP-10MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9621-12-08-NWO-FG

$79.84

Attribute: 9621-12-08-NWO-FG (12MBSPP-08MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M (MM)	42.0
CENTERLINE LENGTH L (MM)	50.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.410

9621-12-12-NWO-FG

$67.24

Attribute: 9621-12-12-NWO-FG (12MBSPP-12MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	33.32
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M (MM)	42.0
CENTERLINE LENGTH L (MM)	53.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.900
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.977

9621-12-12-NWO-SS

$947.67

Attribute: 9621-12-12-NWO-SS (12MBSPP-12MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	33.32
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M (MM)	42.0
CENTERLINE LENGTH L (MM)	53.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.977

9621-12-16-NWO-FG

$85.11

Attribute: 9621-12-16-NWO-FG (12MBSPP-16MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.27
HEX C 1 (MM)	41.0
CENTERLINE LENGTH M (MM)	43.0
CENTERLINE LENGTH L (MM)	55.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.121

9621-16-12-NWO-FG

$131.03

Attribute: 9621-16-12-NWO-FG (16MBSPP-12MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.27
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M (MM)	46.0
CENTERLINE LENGTH L (MM)	53.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.357

9621-16-16-NWO-FG

$145.41

Attribute: 9621-16-16-NWO-FG (16MBSPP-16MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.27
HEX C 1 (MM)	41.0
CENTERLINE LENGTH M (MM)	46.0
CENTERLINE LENGTH L (MM)	55.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.344
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.693

9621-16-16-NWO-SS

$1,443.83

Attribute: 9621-16-16-NWO-SS (16MBSPP-16MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.27
HEX C 1 (MM)	41.0
CENTERLINE LENGTH M (MM)	46.0
CENTERLINE LENGTH L (MM)	55.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.693

9621-20-20-NWO-FG

$174.31

Attribute: 9621-20-20-NWO-FG (20MBSPP-20MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	27.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
CENTERLINE LENGTH M (MM)	50.0
CENTERLINE LENGTH L (MM)	65.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.288

9621-20-20-NWO-SS

$951.83

Attribute: 9621-20-20-NWO-SS (20MBSPP-20MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	27.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
CENTERLINE LENGTH M (MM)	51.0
CENTERLINE LENGTH L (MM)	65.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.288

9621-24-24-NWO-FG

$231.35

Attribute: 9621-24-24-NWO-FG (24MBSPP-24MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	55.0
CENTERLINE LENGTH M (MM)	60.0
CENTERLINE LENGTH L (MM)	68.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	30.596

9621-24-24-NWO-SS

$4,970.88

Attribute: 9621-24-24-NWO-SS (24MBSPP-24MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	55.0
CENTERLINE LENGTH M (MM)	60.0
CENTERLINE LENGTH L (MM)	68.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	30.596

9621-32-32-NWO-FG

$448.28

Attribute: 9621-32-32-NWO-FG (32MBSPP-32MBS...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	63.5
HEX C 1 (MM)	70.0
CENTERLINE LENGTH M (MM)	63.5
CENTERLINE LENGTH L (MM)	78.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	44.655

Connections	BSP
Shape	Elbow

ID	10151193
Category	Conversion Adapters

Description

Description

Variations (29)

9621-02-02-NWO-FG

9621-02-04-NWO-FG

9621-04-02-NWO-FG

9621-04-04-NWO-FG

9621-04-04-NWO-SS

9621-04-06-NWO-FG

9621-04-08-NWO-FG

9621-06-04-NWO-FG

9621-06-06-NWO-FG

9621-06-06-NWO-SS

9621-06-08-NWO-FG

9621-08-06-NWO-FG

9621-08-08-NWO-FG

9621-08-08-NWO-SS

9621-08-12-NWO-FG

9621-08-12-NWO-SS

9621-10-10-NWO-FG

9621-12-08-NWO-FG

9621-12-12-NWO-FG

9621-12-12-NWO-SS

9621-12-16-NWO-FG

9621-16-12-NWO-FG

9621-16-16-NWO-FG

9621-16-16-NWO-SS

9621-20-20-NWO-FG

9621-20-20-NWO-SS

9621-24-24-NWO-FG

9621-24-24-NWO-SS

9621-32-32-NWO-FG

General Attributes

PDF Documents
