Description

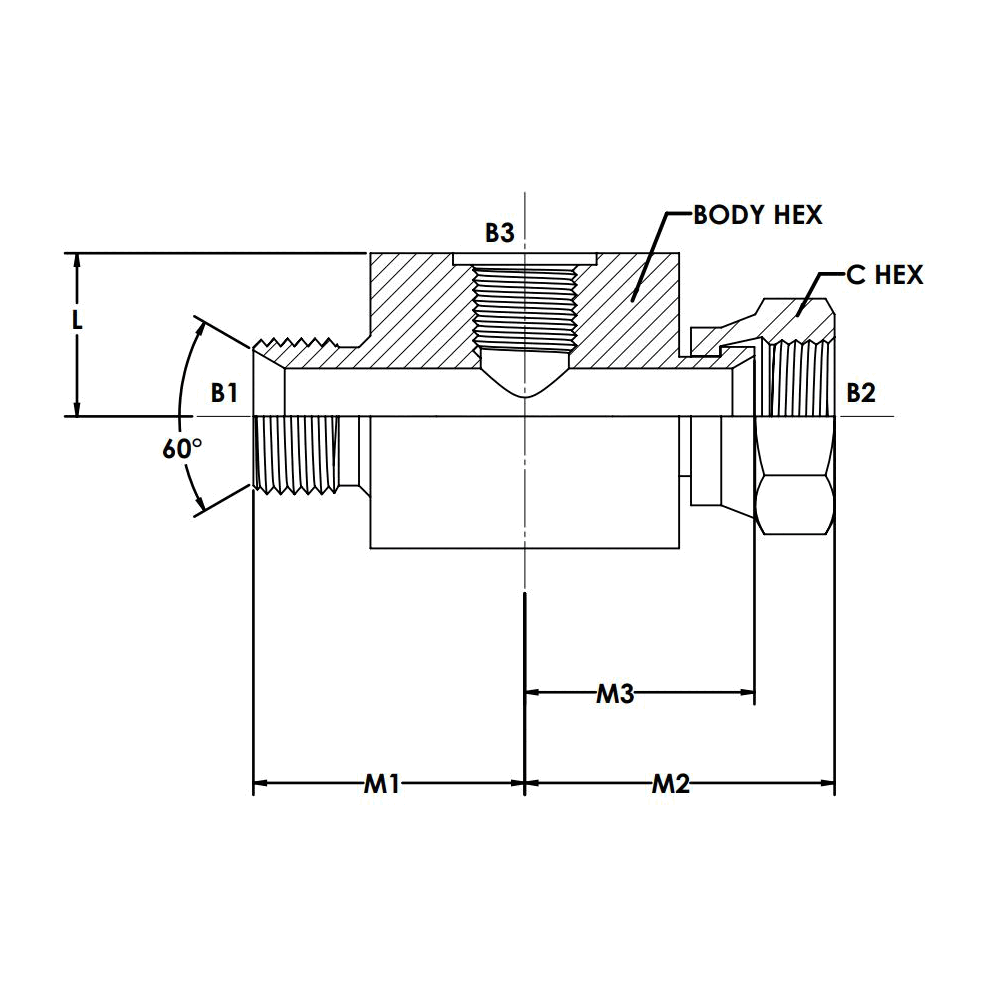

MBSPP-FBSPPS-FBSPP TEE. FEMALE BSPP SWIVEL
Description
Variations (5)
9564-04-04-02
$19.10Attribute: 9564-04-04-02 (04MBSPP-04FBSPPS-...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 1/8-28 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.244 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9564-06-06-02
$22.54Attribute: 9564-06-06-02 (06MBSPP-06FBSPPS-...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 1/8-28 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.319 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9564-08-08-02
$42.38Attribute: 9564-08-08-02 (08MBSPP-08FBSPPS-...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 1/8-28 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.369 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9564-12-12-02
$50.85Attribute: 9564-12-12-02 (12MBSPP-12FBSPPS-...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 1/8-28 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.456 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9564-16-16-02
$79.94Attribute: 9564-16-16-02 (16MBSPP-16FBSPPS-...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 1/8-28 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.769 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Tee |
