Description

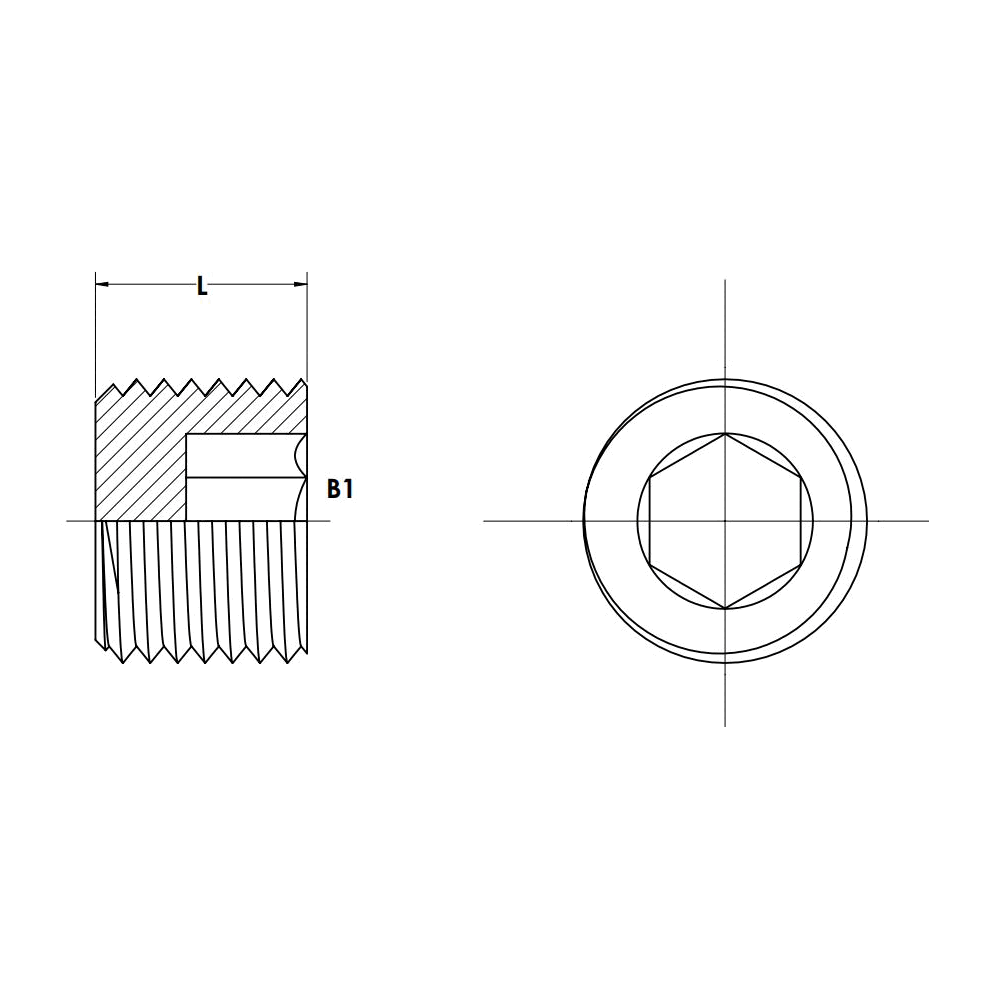

MBSPT HOLLOW HEX PLUG
Description
Variations (1)
9500-HP-02
$0.00Attribute: 9500-HP-02 (02BSPT Hollow Hex Pi...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPT (R) |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 7-1 |
| C HEX 1 (MM) | 5.0 |
| OVERALL LENGTH L (MM) | 7.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.043 |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Plug |
