FBSPP-FBSPP-FBSPP TEE. FEMALE BSPP RIGID TEE
Description
Variations (2)
9345-04-04-04-FG
$29.49Attribute: 9345-04-04-04-FG (04FBSPP-04FBSP...)
Stock Status: True

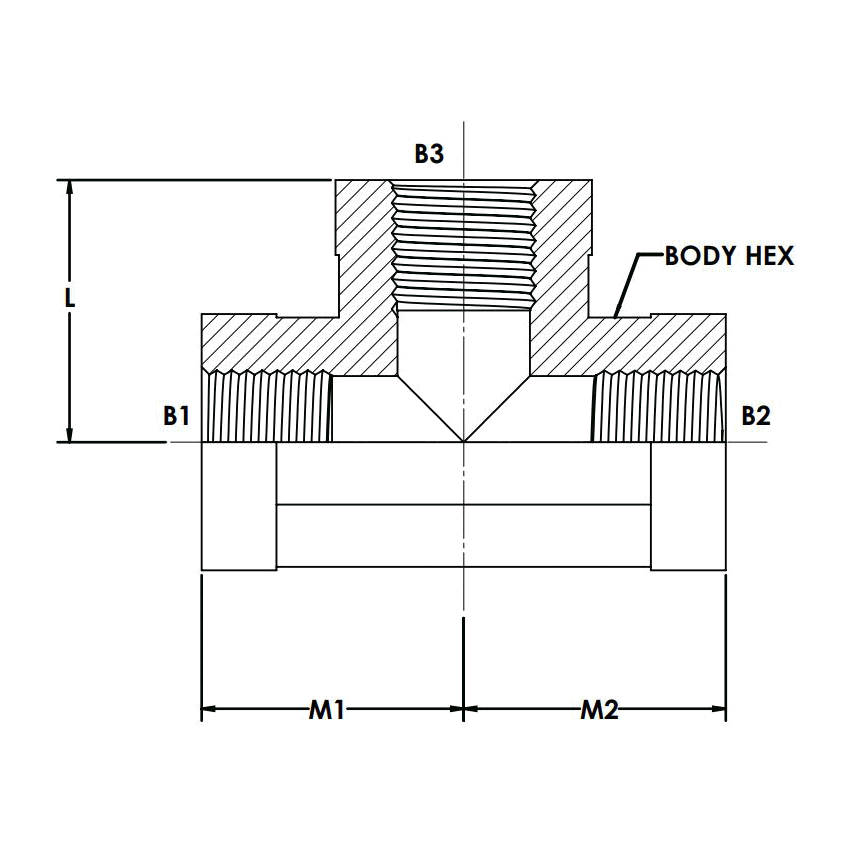

| THREAD TYPE B1 | FEMALE BSPP (G) |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | ISO 1179, ISO 8434-6, BS 5200 |
| THREAD TYPE B2 | FEMALE BSPP (G) |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | ISO 1179, ISO 8434-6, BS 5200 |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 1/4-19 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 19.05 |
| CENTERLINE LENGTH M1 (MM) | 23.11 |
| CENTERLINE LENGTH M2 (MM) | 23.11 |
| CENTERLINE LENGTH L (MM) | 23.11 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.754 |
9345-12-12-12-FG
$126.60Attribute: 9345-12-12-12-FG (12FBSPP-12FBSP...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP (G) |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | ISO 1179, ISO 8434-6, BS 5200 |
| THREAD TYPE B2 | FEMALE BSPP (G) |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | ISO 1179, ISO 8434-6, BS 5200 |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 3/4-14 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Tee |
