9343-FG

9343-02-02-02-FG

$19.10

Attribute: 9343-02-02-02-FG (02FBSPP-02FBSP...)

Stock Status: True

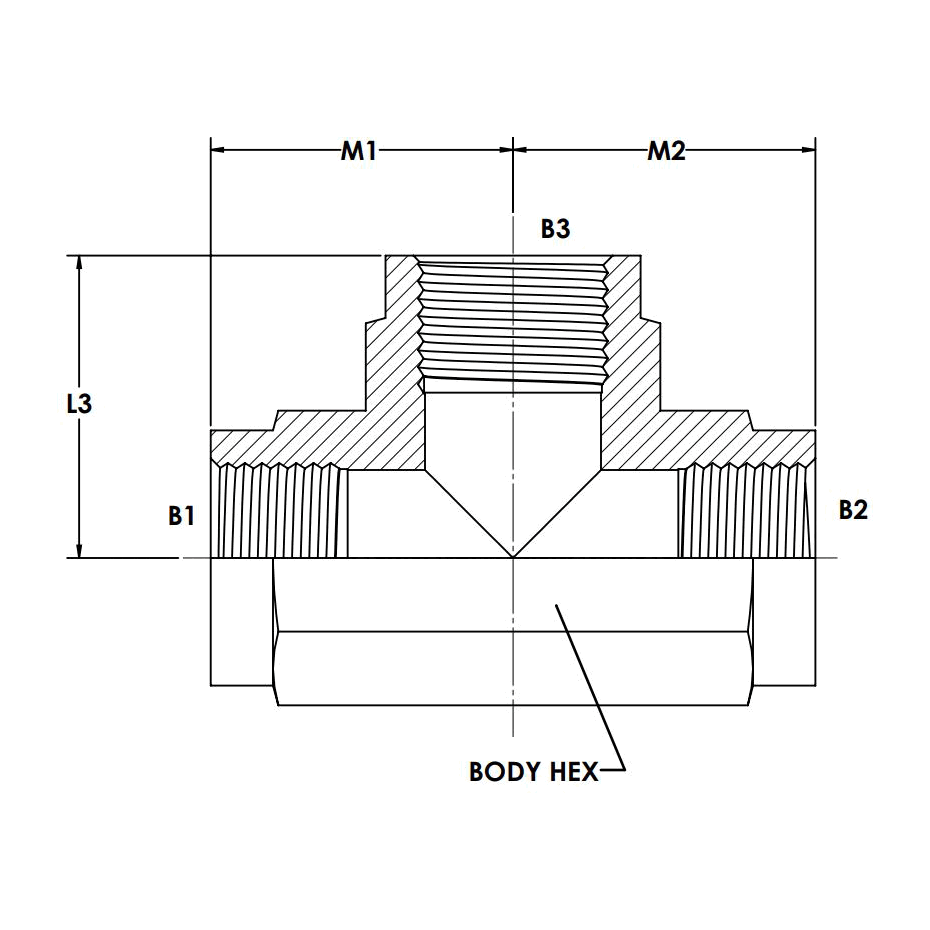

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1/8-28
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	14.28
CENTERLINE LENGTH M1 (MM)	17.5
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGTH L3 (MM)	17.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.920

9343-02-02-02-SS

$508.59

Attribute: 9343-02-02-02-SS (02FBSPP-02FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1/8-28
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	14.28
CENTERLINE LENGTH M1 (MM)	17.5
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGTH L3 (MM)	17.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.920

9343-04-04-04-FG

$33.57

Attribute: 9343-04-04-04-FG (04FBSPP-04FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1/4-19
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	19.05
CENTERLINE LENGTH M1 (MM)	22.5
CENTERLINE LENGTH M2 (MM)	22.5
CENTERLINE LENGTH L3 (MM)	22.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.051

9343-04-04-04-SS

$622.48

Attribute: 9343-04-04-04-SS (04FBSPP-04FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1/4-19
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	19.05
CENTERLINE LENGTH M1 (MM)	22.5
CENTERLINE LENGTH M2 (MM)	22.5
CENTERLINE LENGTH L3 (MM)	22.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.051

9343-06-06-06-FG

$42.04

Attribute: 9343-06-06-06-FG (06FBSPP-06FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	3/8-19
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	22.22
CENTERLINE LENGTH M1 (MM)	26.5
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH L3 (MM)	26.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.309

9343-06-06-06-SS

$482.22

Attribute: 9343-06-06-06-SS (06FBSPP-06FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	3/8-19
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	22.22
CENTERLINE LENGTH M1 (MM)	26.5
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH L3 (MM)	26.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.309

9343-08-08-08-FG

$61.48

Attribute: 9343-08-08-08-FG (08FBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1/2-14
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	32.0
CENTERLINE LENGTH L3 (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.873

9343-08-08-08-SS

$682.27

Attribute: 9343-08-08-08-SS (08FBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1/2-14
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	32.0
CENTERLINE LENGTH L3 (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.873

9343-12-12-12-FG

$102.19

Attribute: 9343-12-12-12-FG (12FBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	3/4-14
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	33.32
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	34.0
CENTERLINE LENGTH L3 (MM)	34.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.625
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.574

9343-12-12-12-SS

$1,549.92

Attribute: 9343-12-12-12-SS (12FBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	3/4-14
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	33.32
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	34.0
CENTERLINE LENGTH L3 (MM)	34.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.574

9343-16-16-16-FG

$158.21

Attribute: 9343-16-16-16-FG (16FBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1-11
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.27
CENTERLINE LENGTH M1 (MM)	41.5
CENTERLINE LENGTH M2 (MM)	41.5
CENTERLINE LENGTH L3 (MM)	41.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	1.138
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.899

9343-16-16-16-SS

$1,157.60

Attribute: 9343-16-16-16-SS (16FBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1-11
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.27
CENTERLINE LENGTH M1 (MM)	41.5
CENTERLINE LENGTH M2 (MM)	41.5
CENTERLINE LENGTH L3 (MM)	41.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.899

9343-20-20-20-FG

$141.72

Attribute: 9343-20-20-20-FG (20FBSPP-20FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1-1/4-11
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	47.63
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	44.0
CENTERLINE LENGTH L3 (MM)	44.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	1.063
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.233

9343-20-20-20-SS

$1,237.39

Attribute: 9343-20-20-20-SS (20FBSPP-20FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1-1/4-11
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	47.63
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	44.0
CENTERLINE LENGTH L3 (MM)	44.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.233

9343-24-24-24-FG

$382.17

Attribute: 9343-24-24-24-FG (24FBSPP-24FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	1-1/2-11
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	65.07
CENTERLINE LENGTH M1 (MM)	53.0
CENTERLINE LENGTH M2 (MM)	53.0
CENTERLINE LENGTH L3 (MM)	53.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	44.070

9343-32-32-32-FG

$401.97

Attribute: 9343-32-32-32-FG (32FBSPP-32FBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	FEMALE BSPP RIGID
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	FEMALE BSPP RIGID
THREAD TYPE B3	FEMALE BSPP (G)
THREAD SIZE B3	2-11
THREAD SPECIFICATION B3	FEMALE BSPP RIGID
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	71.42
CENTERLINE LENGTH M1 (MM)	60.0
CENTERLINE LENGTH M2 (MM)	60.0
CENTERLINE LENGTH L3 (MM)	60.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	61.274

Connections	BSP
Shape	Tee

ID	10151101
Category	Conversion Adapters

Description

Description

Variations (16)

9343-02-02-02-FG

9343-02-02-02-SS

9343-04-04-04-FG

9343-04-04-04-SS

9343-06-06-06-FG

9343-06-06-06-SS

9343-08-08-08-FG

9343-08-08-08-SS

9343-12-12-12-FG

9343-12-12-12-SS

9343-16-16-16-FG

9343-16-16-16-SS

9343-20-20-20-FG

9343-20-20-20-SS

9343-24-24-24-FG

9343-32-32-32-FG

General Attributes

PDF Documents
