9342-FG

9342-02-02-02-FG

$24.57

Attribute: 9342-02-02-02-FG (02MBSPP-02MBSP...)

Stock Status: True

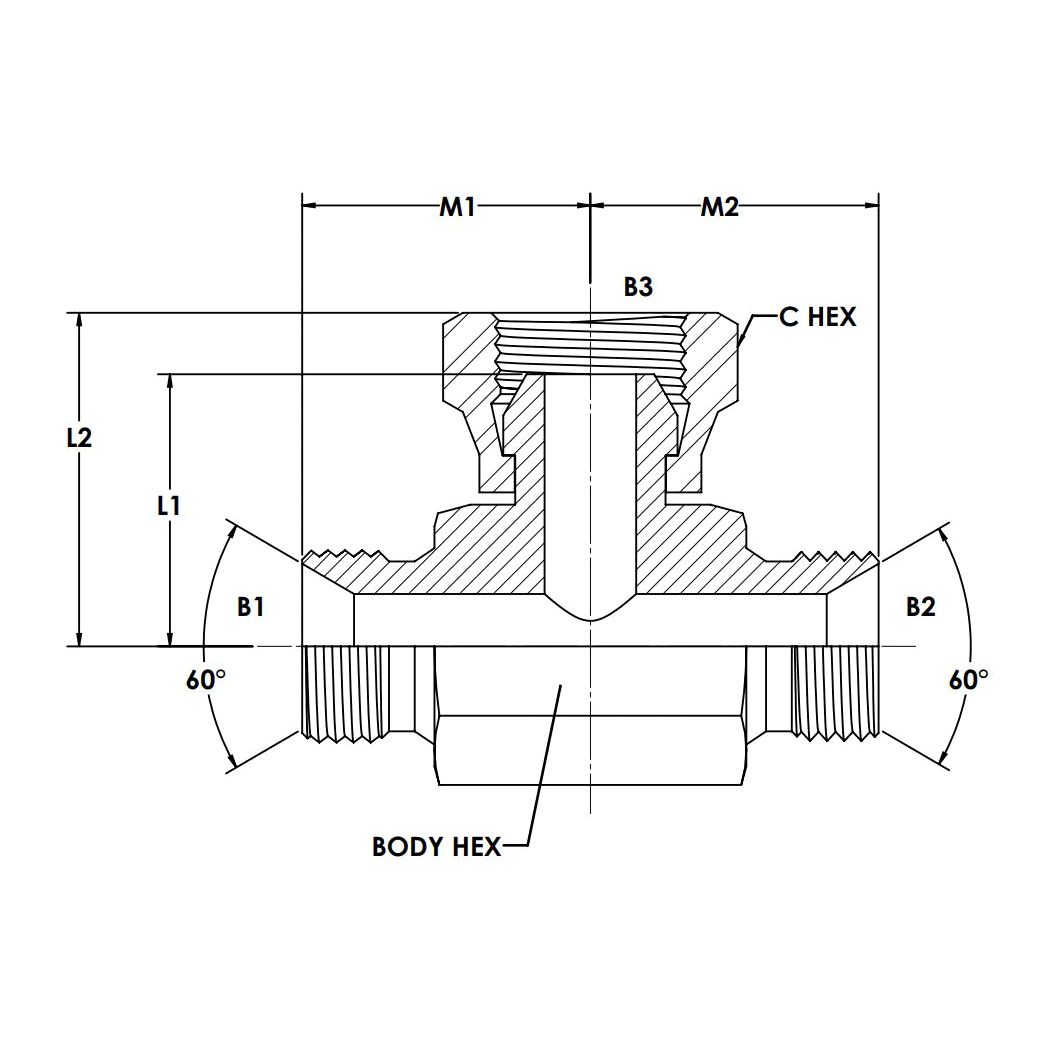

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1/8-28
THREAD DRILL B3 (MM)	3.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	17.0
C HEX 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	20.0
CENTERLINE LENGTH M2 (MM)	20.0
CENTERLINE LENGTH L1 (MM)	20.5
CENTERLINE LENGTH L2 (MM)	24.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.369

9342-02-02-02-SS

$300.80

Attribute: 9342-02-02-02-SS (02MBSPP-02MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1/8-28
THREAD DRILL B3 (MM)	3.50
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	17.0
C HEX 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	20.0
CENTERLINE LENGTH M2 (MM)	20.0
CENTERLINE LENGTH L1 (MM)	20.5
CENTERLINE LENGTH L2 (MM)	24.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.369

9342-04-04-04-FG

$22.25

Attribute: 9342-04-04-04-FG (04MBSPP-04MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	17.0
C HEX 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	22.0
CENTERLINE LENGTH L2 (MM)	25.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.755

9342-04-04-04-SS

$605.23

Attribute: 9342-04-04-04-SS (04MBSPP-04MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	17.0
C HEX 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	22.0
CENTERLINE LENGTH L2 (MM)	25.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.755

9342-06-06-06-FG

$26.14

Attribute: 9342-06-06-06-FG (06MBSPP-06MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	27.0
CENTERLINE LENGTH L1 (MM)	26.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.045

9342-06-06-06-SS

$683.37

Attribute: 9342-06-06-06-SS (06MBSPP-06MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	27.0
CENTERLINE LENGTH L1 (MM)	26.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.045

9342-06-06-08-FG

$36.17

Attribute: 9342-06-06-08-FG (06MBSPP-06MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	9.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	27.0
CENTERLINE LENGTH L1 (MM)	28.8
CENTERLINE LENGTH L2 (MM)	34.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.004

9342-08-08-06-FG

$35.89

Attribute: 9342-08-08-06-FG (08MBSPP-08MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	10.4
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	33.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.724

9342-08-08-08-FG

$36.37

Attribute: 9342-08-08-08-FG (08MBSPP-08MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	9.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	28.8
CENTERLINE LENGTH L2 (MM)	34.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.694

9342-08-08-08-SS

$523.59

Attribute: 9342-08-08-08-SS (08MBSPP-08MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	9.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	28.8
CENTERLINE LENGTH L2 (MM)	34.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.694

9342-08-12-08-FG

$53.76

Attribute: 9342-08-12-08-FG (08MBSPP-12MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	9.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	36.0
CENTERLINE LENGTH L1 (MM)	33.8
CENTERLINE LENGTH L2 (MM)	39.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.518

9342-08-12-16-FG

$94.76

Attribute: 9342-08-12-16-FG (08MBSPP-12MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1-11
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

9342-10-10-10-FG

$62.85

Attribute: 9342-10-10-10-FG (10MBSPP-10MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	5/8-14
THREAD DRILL B3 (MM)	12.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	33.5
CENTERLINE LENGTH M2 (MM)	33.5
CENTERLINE LENGTH L1 (MM)	29.5
CENTERLINE LENGTH L2 (MM)	38.3
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.354

9342-12-12-12-FG

$117.30

Attribute: 9342-12-12-12-FG (12MBSPP-12MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	15.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	36.0
CENTERLINE LENGTH L1 (MM)	34.7
CENTERLINE LENGTH L2 (MM)	42.3
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.706
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.197

9342-12-12-12-SS

$824.78

Attribute: 9342-12-12-12-SS (12MBSPP-12MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	15.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	36.0
CENTERLINE LENGTH L1 (MM)	34.7
CENTERLINE LENGTH L2 (MM)	42.3
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.197

9342-16-16-16-FG

$157.12

Attribute: 9342-16-16-16-FG (16MBSPP-16MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1-11
THREAD DRILL B3 (MM)	20.4
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	44.0
CENTERLINE LENGTH L1 (MM)	37.25
CENTERLINE LENGTH L2 (MM)	46.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.642

9342-16-16-16-SS

$2,042.74

Attribute: 9342-16-16-16-SS (16MBSPP-16MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1-11
THREAD DRILL B3 (MM)	20.4
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	44.0
CENTERLINE LENGTH L1 (MM)	37.25
CENTERLINE LENGTH L2 (MM)	46.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.642

9342-20-20-20-FG

$377.35

Attribute: 9342-20-20-20-FG (20MBSPP-20MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1-1/4-11
THREAD DRILL B3 (MM)	26.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	48.3
CENTERLINE LENGTH L2 (MM)	58.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	24.968

9342-20-20-20-SS

$1,332.56

Attribute: 9342-20-20-20-SS (20MBSPP-20MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1-1/4-11
THREAD DRILL B3 (MM)	26.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	48.3
CENTERLINE LENGTH L2 (MM)	58.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	24.968

9342-24-24-24-FG

$383.90

Attribute: 9342-24-24-24-FG (24MBSPP-24MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1-1/2-11
THREAD DRILL B3 (MM)	30.8
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	55.0
C HEX 1 (MM)	55.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	55.0
CENTERLINE LENGTH L1 (MM)	54.9
CENTERLINE LENGTH L2 (MM)	66.6
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	34.741

9342-24-24-24-SS

$2,094.01

Attribute: 9342-24-24-24-SS (24MBSPP-24MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	1-1/2-11
THREAD DRILL B3 (MM)	30.8
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	55.0
C HEX 1 (MM)	55.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	55.0
CENTERLINE LENGTH L1 (MM)	54.9
CENTERLINE LENGTH L2 (MM)	66.6
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	34.741

9342-32-32-32-FG

$442.28

Attribute: 9342-32-32-32-FG (32MBSPP-32MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	2-11
THREAD DRILL B3 (MM)	43.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	63.5
C HEX 1 (MM)	70.0
CENTERLINE LENGTH M1 (MM)	63.5
CENTERLINE LENGTH M2 (MM)	63.5
CENTERLINE LENGTH L1 (MM)	58.6
CENTERLINE LENGTH L2 (MM)	74.3
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	57.532

9342-32-32-32-SS

$3,426.54

Attribute: 9342-32-32-32-SS (32MBSPP-32MBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	FEMALE BSPP SWIVEL
THREAD SIZE B3	2-11
THREAD DRILL B3 (MM)	43.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	63.5
C HEX 1 (MM)	70.0
CENTERLINE LENGTH M1 (MM)	63.5
CENTERLINE LENGTH M2 (MM)	63.5
CENTERLINE LENGTH L1 (MM)	58.6
CENTERLINE LENGTH L2 (MM)	74.3
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	57.532

Connections	BSP
Shape	Tee

ID	10151075
Category	Conversion Adapters

Description

Description

Variations (23)

9342-02-02-02-FG

9342-02-02-02-SS

9342-04-04-04-FG

9342-04-04-04-SS

9342-06-06-06-FG

9342-06-06-06-SS

9342-06-06-08-FG

9342-08-08-06-FG

9342-08-08-08-FG

9342-08-08-08-SS

9342-08-12-08-FG

9342-08-12-16-FG

9342-10-10-10-FG

9342-12-12-12-FG

9342-12-12-12-SS

9342-16-16-16-FG

9342-16-16-16-SS

9342-20-20-20-FG

9342-20-20-20-SS

9342-24-24-24-FG

9342-24-24-24-SS

9342-32-32-32-FG

9342-32-32-32-SS

General Attributes

PDF Documents
