9326-FG

9326-02-02-02-FG

$33.42

Attribute: 9326-02-02-02-FG (02MBSPP-02FBSP...)

Stock Status: True

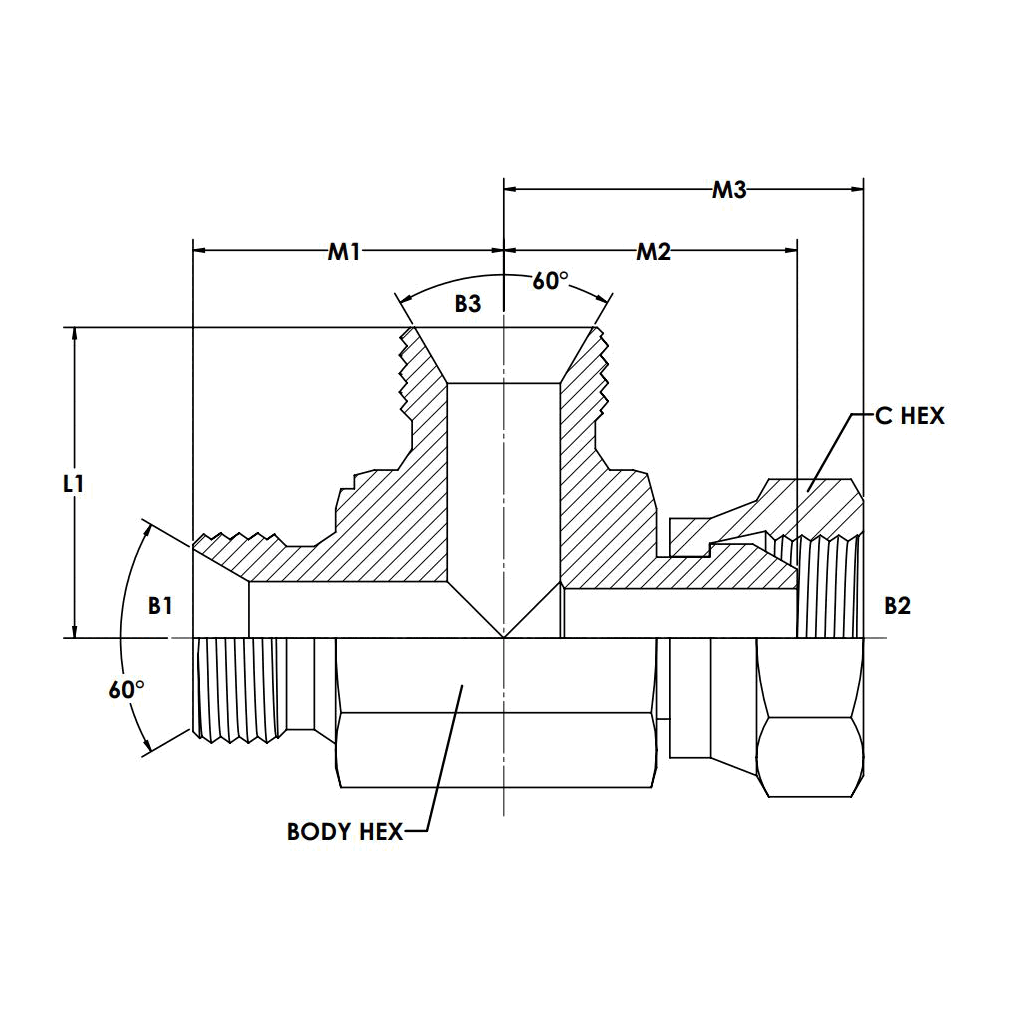

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/8-28
THREAD DRILL B3 (MM)	3.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	14.0
C HEX 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	19.0
CENTERLINE LENGTH M2 (MM)	20.0
CENTERLINE LENGTH M3 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	19.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.955

9326-02-02-02-SS

$342.67

Attribute: 9326-02-02-02-SS (02MBSPP-02FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/8-28
THREAD DRILL B3 (MM)	3.5
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	14.0
C HEX 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	19.0
CENTERLINE LENGTH M2 (MM)	20.0
CENTERLINE LENGTH M3 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	19.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.955

9326-04-04-04-FG

$42.34

Attribute: 9326-04-04-04-FG (04MBSPP-04FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	17.0
C HEX 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	25.9
CENTERLINE LENGTH L1 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.694

9326-04-04-04-SS

$525.18

Attribute: 9326-04-04-04-SS (04MBSPP-04FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	17.0
C HEX 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	25.9
CENTERLINE LENGTH L1 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.694

9326-06-06-04-FG

$72.50

Attribute: 9326-06-06-04-FG (06MBSPP-06FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	25.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.803

9326-06-06-06-FG

$63.94

Attribute: 9326-06-06-06-FG (06MBSPP-06FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.9
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	27.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.959

9326-06-06-06-SS

$456.11

Attribute: 9326-06-06-06-SS (06MBSPP-06FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.9
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	27.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.959

9326-06-08-06-FG

$68.86

Attribute: 9326-06-08-06-FG (06MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.9
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9326-06-08-08-FG

$87.16

Attribute: 9326-06-08-08-FG (06MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	28.8
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH L1 (MM)	30.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.555

9326-08-08-04-FG

$73.59

Attribute: 9326-08-08-04-FG (08MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	28.8
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH L1 (MM)	27.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.272

9326-08-08-06-FG

$76.40

Attribute: 9326-08-08-06-FG (08MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.9
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	28.8
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH L1 (MM)	28.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.378

9326-08-08-08-FG

$83.14

Attribute: 9326-08-08-08-FG (08MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	28.8
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH L1 (MM)	30.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.488
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.591

9326-08-08-08-SS

$909.05

Attribute: 9326-08-08-08-SS (08MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	28.8
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH L1 (MM)	30.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.591

9326-08-12-08-FG

$99.28

Attribute: 9326-08-12-08-FG (08MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	33.5
CENTERLINE LENGTH M2 (MM)	31.5
CENTERLINE LENGTH M3 (MM)	39.1
CENTERLINE LENGTH L1 (MM)	33.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.663

9326-10-08-08-FG

$102.65

Attribute: 9326-10-08-08-FG (10MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	33.5
CENTERLINE LENGTH L1 (MM)	33.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.619
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9326-10-10-10-FG

$106.62

Attribute: 9326-10-10-10-FG (10MBSPP-10FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	5/8-14
THREAD DRILL B3 (MM)	14.3
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	33.5
CENTERLINE LENGTH M2 (MM)	29.5
CENTERLINE LENGTH M3 (MM)	38.3
CENTERLINE LENGTH L1 (MM)	33.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.544
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.178

9326-12-12-04-FG

$108.25

Attribute: 9326-12-12-04-FG (12MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	34.7
CENTERLINE LENGTH M3 (MM)	42.3
CENTERLINE LENGTH L1 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.186

9326-12-12-06-FG

$113.96

Attribute: 9326-12-12-06-FG (12MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.9
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	34.7
CENTERLINE LENGTH M3 (MM)	42.3
CENTERLINE LENGTH L1 (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.339

9326-12-12-08-FG

$138.57

Attribute: 9326-12-12-08-FG (12MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	34.7
CENTERLINE LENGTH M3 (MM)	42.3
CENTERLINE LENGTH L1 (MM)	33.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.569

9326-12-12-12-FG

$117.30

Attribute: 9326-12-12-12-FG (12MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	16.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	34.7
CENTERLINE LENGTH M3 (MM)	42.3
CENTERLINE LENGTH L1 (MM)	36.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.769
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.951

9326-12-12-12-SS

$1,391.93

Attribute: 9326-12-12-12-SS (12MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	16.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	34.7
CENTERLINE LENGTH M3 (MM)	42.3
CENTERLINE LENGTH L1 (MM)	36.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.951

9326-12-16-12-FG

$175.44

Attribute: 9326-12-16-12-FG (12MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	16.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	36.25
CENTERLINE LENGTH M3 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	36.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.225

9326-16-16-04-FG

$183.21

Attribute: 9326-16-16-04-FG (16MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	37.25
CENTERLINE LENGTH M3 (MM)	45.95
CENTERLINE LENGTH L1 (MM)	36.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.716

9326-16-16-06-FG

$103.47

Attribute: 9326-16-16-06-FG (16MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.9
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	37.25
CENTERLINE LENGTH M3 (MM)	45.95
CENTERLINE LENGTH L1 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.941

9326-16-16-08-FG

$123.01

Attribute: 9326-16-16-08-FG (16MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.1
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	37.25
CENTERLINE LENGTH M3 (MM)	45.95
CENTERLINE LENGTH L1 (MM)	39.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.391

9326-16-16-12-FG

$175.44

Attribute: 9326-16-16-12-FG (16MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	16.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	37.25
CENTERLINE LENGTH M3 (MM)	45.95
CENTERLINE LENGTH L1 (MM)	41.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.841

9326-16-16-16-FG

$159.92

Attribute: 9326-16-16-16-FG (16MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-11
THREAD DRILL B3 (MM)	22.2
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	37.25
CENTERLINE LENGTH M3 (MM)	46.0
CENTERLINE LENGTH L1 (MM)	44.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	1.381
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.524

9326-16-16-16-SS

$973.75

Attribute: 9326-16-16-16-SS (16MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-11
THREAD DRILL B3 (MM)	22.2
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	44.0
CENTERLINE LENGTH M2 (MM)	37.25
CENTERLINE LENGTH M3 (MM)	46.0
CENTERLINE LENGTH L1 (MM)	44.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.524

9326-20-20-16-FG

$176.67

Attribute: 9326-20-20-16-FG (20MBSPP-20FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	26.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-11
THREAD DRILL B3 (MM)	22.2
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	48.3
CENTERLINE LENGTH M3 (MM)	58.5
CENTERLINE LENGTH L1 (MM)	48.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.944

9326-20-20-20-FG

$265.17

Attribute: 9326-20-20-20-FG (20MBSPP-20FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	26.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-1/4-11
THREAD DRILL B3 (MM)	28.6
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	48.3
CENTERLINE LENGTH M3 (MM)	58.5
CENTERLINE LENGTH L1 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	2.350
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	24.272

9326-20-20-20-SS

$1,332.56

Attribute: 9326-20-20-20-SS (20MBSPP-20FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	26.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-1/4-11
THREAD DRILL B3 (MM)	28.6
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	48.3
CENTERLINE LENGTH M3 (MM)	58.5
CENTERLINE LENGTH L1 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	24.272

9326-24-24-12-FG

$140.98

Attribute: 9326-24-24-12-FG (24MBSPP-24FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.8
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	16.7
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	55.0
C HEX 1 (MM)	55.0
CENTERLINE LENGTH M1 (MM)	55.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9326-24-24-20-FG

$390.11

Attribute: 9326-24-24-20-FG (24MBSPP-24FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.8
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-1/4-11
THREAD DRILL B3 (MM)	28.6
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	55.0
C HEX 1 (MM)	55.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	54.9
CENTERLINE LENGTH M3 (MM)	66.6
CENTERLINE LENGTH L1 (MM)	53.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	32.854

9326-24-24-24-FG

$351.17

Attribute: 9326-24-24-24-FG (24MBSPP-24FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.8
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-1/2-11
THREAD DRILL B3 (MM)	33.3
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	55.0
C HEX 1 (MM)	55.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	54.9
CENTERLINE LENGTH M3 (MM)	66.6
CENTERLINE LENGTH L1 (MM)	55.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	43.700
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.671

9326-24-24-24-SS

$2,094.01

Attribute: 9326-24-24-24-SS (24MBSPP-24FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.8
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-1/2-11
THREAD DRILL B3 (MM)	33.3
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	55.0
C HEX 1 (MM)	55.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	54.9
CENTERLINE LENGTH M3 (MM)	66.6
CENTERLINE LENGTH L1 (MM)	55.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.671

9326-32-32-32-FG

$437.84

Attribute: 9326-32-32-32-FG (32MBSPP-32FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	2-11
THREAD DRILL B3 (MM)	46.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	63.5
C HEX 1 (MM)	70.0
CENTERLINE LENGTH M1 (MM)	63.5
CENTERLINE LENGTH M2 (MM)	58.6
CENTERLINE LENGTH M3 (MM)	74.3
CENTERLINE LENGTH L1 (MM)	63.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	56.068

9326-32-32-32-SS

$3,426.54

Attribute: 9326-32-32-32-SS (32MBSPP-32FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	2-11
THREAD DRILL B3 (MM)	46.0
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATIONS	BS 5200
BODY HEX (MM)	63.5
C HEX 1 (MM)	70.0
CENTERLINE LENGTH M1 (MM)	63.5
CENTERLINE LENGTH M2 (MM)	58.6
CENTERLINE LENGTH M3 (MM)	74.3
CENTERLINE LENGTH L1 (MM)	63.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	56.068

Connections	BSP
Shape	Tee

ID	10151024
Category	Conversion Adapters

Description

Description

Variations (37)

9326-02-02-02-FG

9326-02-02-02-SS

9326-04-04-04-FG

9326-04-04-04-SS

9326-06-06-04-FG

9326-06-06-06-FG

9326-06-06-06-SS

9326-06-08-06-FG

9326-06-08-08-FG

9326-08-08-04-FG

9326-08-08-06-FG

9326-08-08-08-FG

9326-08-08-08-SS

9326-08-12-08-FG

9326-10-08-08-FG

9326-10-10-10-FG

9326-12-12-04-FG

9326-12-12-06-FG

9326-12-12-08-FG

9326-12-12-12-FG

9326-12-12-12-SS

9326-12-16-12-FG

9326-16-16-04-FG

9326-16-16-06-FG

9326-16-16-08-FG

9326-16-16-12-FG

9326-16-16-16-FG

9326-16-16-16-SS

9326-20-20-16-FG

9326-20-20-20-FG

9326-20-20-20-SS

9326-24-24-12-FG

9326-24-24-20-FG

9326-24-24-24-FG

9326-24-24-24-SS

9326-32-32-32-FG

9326-32-32-32-SS

General Attributes

PDF Documents
