Description

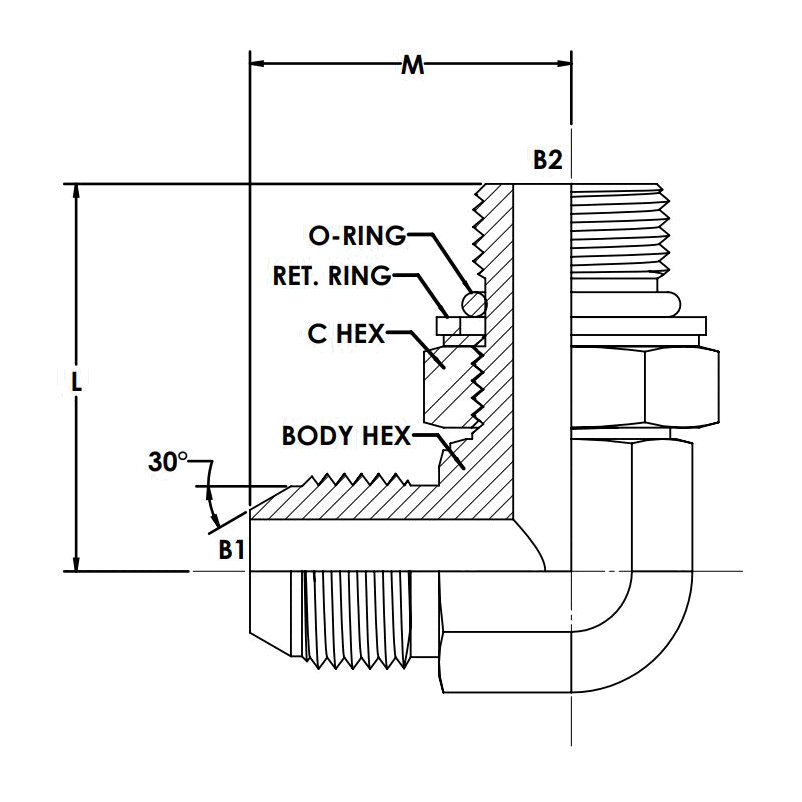

MJIS-MBSPPAORB RR 90 ELBOW. MALE BSPP ADJUSTABLE WITH O-RING AND RETAINING RING
Description
Variations (1)
9282-06-06-NWO-FG
$0.00Attribute: 9282-06-06-NWO-FG (06MJIS-06MBSP...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | JIS B 0202 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 9.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 22.0 |
| CENTERLINE LENGTH M (MM) | 29.00 |
| CENTERLINE LENGTH L (MM) | 36.8 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.532 |
General Attributes
| Connections | BSP, JIS |
|---|---|
| Shape | Elbow |
