9263-NWO-FG-ORR

Attribute: 9263-04-04-NWO-FG (04MBSPPAORB R...)

Stock Status: True

THREAD TYPE B1	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFCATION B2	ISO 1179, ISO 8434-6, BS 5200

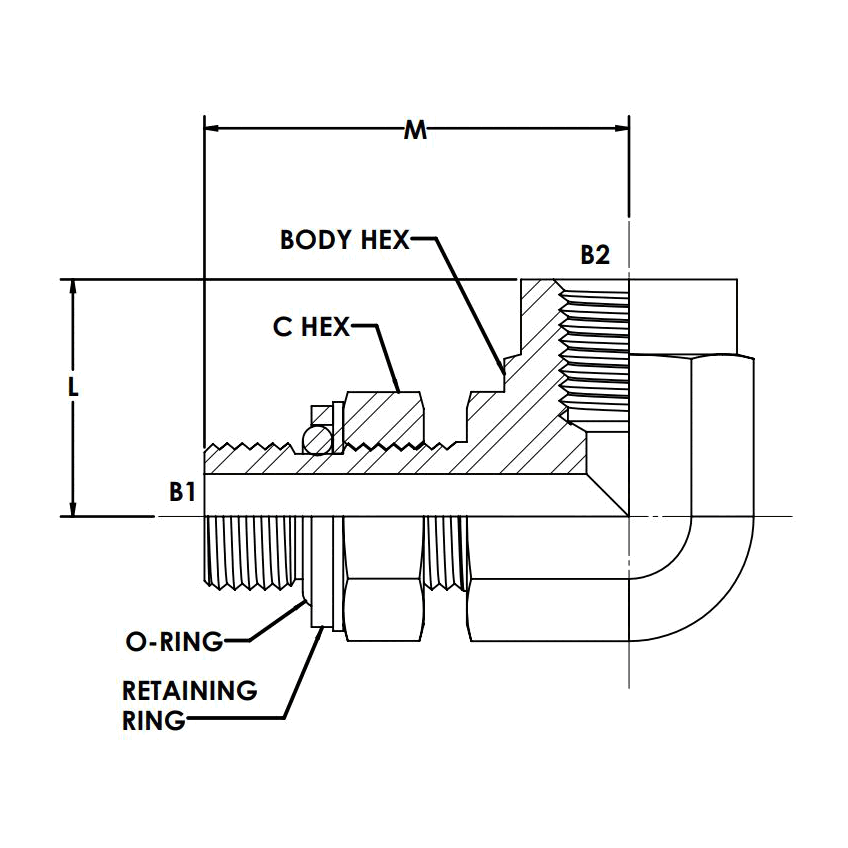

BODY HEX (MM)	19.05
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M (MM)	37.34
CENTERLINE LENGTH L (MM)	20.83
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.188
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.654

Attribute: 9263-12-12-NWO-FG (12MBSPPAORB R...)

Stock Status: True

THREAD TYPE B1	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFCATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.28
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M (MM)	57.66
CENTERLINE LENGTH L (MM)	38.61
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.513
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.687

Attribute: 9263-16-16-NWO-FG (16MBSPPAORB R...)

Stock Status: True

THREAD TYPE B1	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	21.49
THREAD SPECIFICATION B1	BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFCATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	47.63
HEX C 1 (MM)	41.0
CENTERLINE LENGTH M (MM)	60.71
CENTERLINE LENGTH L (MM)	40.89
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.025
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.897
