9244-FG

9244-02-02-FG

$14.82

Attribute: 9244-02-02-FG (02FBSPPS-02FBSPPS...)

Stock Status: True

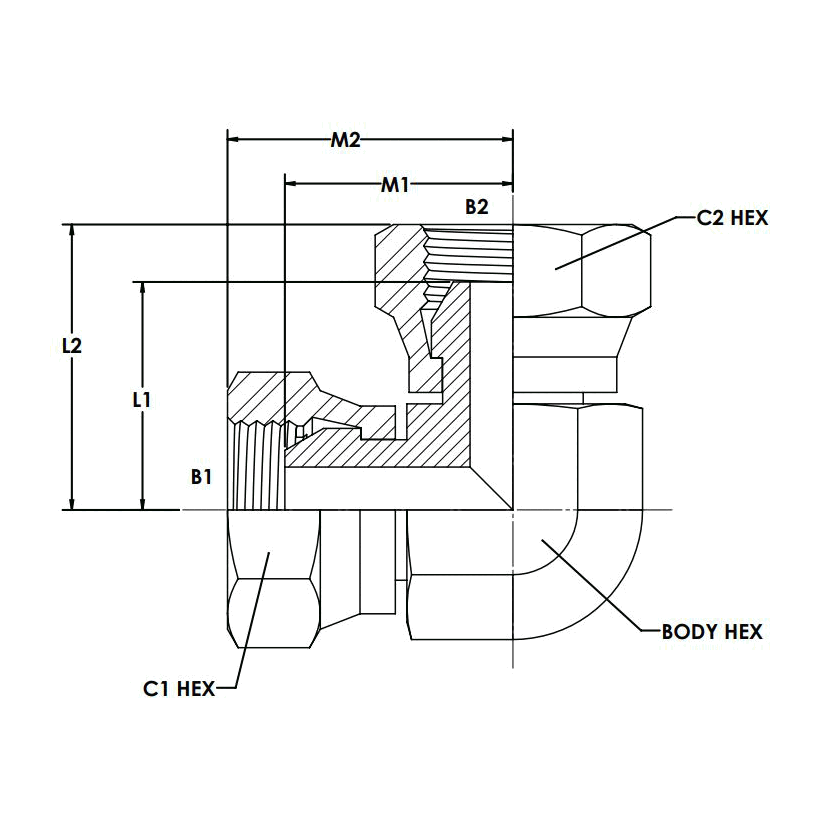

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	11.13
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.603

9244-02-02-SS

$237.98

Attribute: 9244-02-02-SS (02FBSPPS-02FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	11.13
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.603

9244-04-04-FG

$52.32

Attribute: 9244-04-04-FG (04FBSPPS-04FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.5
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.27
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	24.9
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	24.9
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.190

9244-04-04-SS

$329.18

Attribute: 9244-04-04-SS (04FBSPPS-04FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.5
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.27
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	24.9
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	24.9
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.190

9244-06-04-FG

$75.21

Attribute: 9244-06-04-FG (06FBSPPS-04FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.05
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

9244-06-06-FG

$46.76

Attribute: 9244-06-06-FG (06FBSPPS-06FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.05
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	22.5
CENTERLINE LENGTH M2 (MM)	27.0
CENTERLINE LENGTH L1 (MM)	22.5
CENTERLINE LENGTH L2 (MM)	27.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.791

9244-06-06-SS

$598.18

Attribute: 9244-06-06-SS (06FBSPPS-06FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.05
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	22.5
CENTERLINE LENGTH M2 (MM)	27.0
CENTERLINE LENGTH L1 (MM)	22.5
CENTERLINE LENGTH L2 (MM)	27.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.791

9244-08-08-FG

$30.96

Attribute: 9244-08-08-FG (08FBSPPS-08FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	9.7
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	25.4
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	25.8
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	25.8
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.146

9244-08-08-SS

$858.94

Attribute: 9244-08-08-SS (08FBSPPS-08FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	9.7
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	25.4
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	25.8
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	25.8
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.146

9244-10-10-FG

$68.18

Attribute: 9244-10-10-FG (10FBSPPS-10FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	37.8
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	37.8
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.818

9244-10-10-SS

$437.86

Attribute: 9244-10-10-SS (10FBSPPS-10FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	37.8
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	37.8
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.818

9244-12-12-FG

$42.28

Attribute: 9244-12-12-FG (12FBSPPS-12FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	30.7
CENTERLINE LENGTH M2 (MM)	38.3
CENTERLINE LENGTH L1 (MM)	30.7
CENTERLINE LENGTH L2 (MM)	38.3
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	9.800
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.240

9244-12-12-SS

$879.93

Attribute: 9244-12-12-SS (12FBSPPS-12FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	30.7
CENTERLINE LENGTH M2 (MM)	38.3
CENTERLINE LENGTH L1 (MM)	30.7
CENTERLINE LENGTH L2 (MM)	38.3
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.240

9244-16-16-FG

$49.96

Attribute: 9244-16-16-FG (16FBSPPS-16FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	20.4
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.32
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	34.25
CENTERLINE LENGTH M2 (MM)	43.0
CENTERLINE LENGTH L1 (MM)	34.25
CENTERLINE LENGTH L2 (MM)	43.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.905

9244-16-16-SS

$875.69

Attribute: 9244-16-16-SS (16FBSPPS-16FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	20.4
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.32
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	34.25
CENTERLINE LENGTH M2 (MM)	43.0
CENTERLINE LENGTH L1 (MM)	34.25
CENTERLINE LENGTH L2 (MM)	43.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.905

9244-20-20-FG

$326.31

Attribute: 9244-20-20-FG (20FBSPPS-20FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	26.0
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	26.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.27
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	38.3
CENTERLINE LENGTH M2 (MM)	48.5
CENTERLINE LENGTH L1 (MM)	38.3
CENTERLINE LENGTH L2 (MM)	48.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.584

9244-20-20-SS

$1,563.21

Attribute: 9244-20-20-SS (20FBSPPS-20FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	26.0
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	26.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.27
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	38.3
CENTERLINE LENGTH M2 (MM)	48.5
CENTERLINE LENGTH L1 (MM)	38.3
CENTERLINE LENGTH L2 (MM)	48.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.584

9244-24-24-FG

$287.13

Attribute: 9244-24-24-FG (24FBSPPS-24FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	30.8
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.8
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	47.63
HEX C 1 (MM)	55.0
HEX C 2 (MM)	55.0
CENTERLINE LENGTH M1 (MM)	47.9
CENTERLINE LENGTH M2 (MM)	59.6
CENTERLINE LENGTH L1 (MM)	47.9
CENTERLINE LENGTH L2 (MM)	59.6
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.353

9244-24-24-SS

$3,714.18

Attribute: 9244-24-24-SS (24FBSPPS-24FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	30.8
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.8
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	47.63
HEX C 1 (MM)	55.0
HEX C 2 (MM)	55.0
CENTERLINE LENGTH M1 (MM)	47.9
CENTERLINE LENGTH M2 (MM)	59.6
CENTERLINE LENGTH L1 (MM)	47.9
CENTERLINE LENGTH L2 (MM)	59.6
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.353

9244-32-32-FG

$567.85

Attribute: 9244-32-32-FG (32FBSPPS-32FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	43.5
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	63.5
HEX C 1 (MM)	70.0
HEX C 2 (MM)	70.0
CENTERLINE LENGTH M1 (MM)	58.6
CENTERLINE LENGTH M2 (MM)	74.3
CENTERLINE LENGTH L1 (MM)	58.6
CENTERLINE LENGTH L2 (MM)	74.3
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	48.042

9244-32-32-SS

$4,759.09

Attribute: 9244-32-32-SS (32FBSPPS-32FBSPPS...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP SWIVEL
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	43.5
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	63.5
HEX C 1 (MM)	70.0
HEX C 2 (MM)	70.0
CENTERLINE LENGTH M1 (MM)	58.6
CENTERLINE LENGTH M2 (MM)	74.3
CENTERLINE LENGTH L1 (MM)	58.6
CENTERLINE LENGTH L2 (MM)	74.3
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	48.042

Connections	BSP
Shape	Elbow

ID	10150966
Category	Conversion Adapters

Description

Description

Variations (21)

9244-02-02-FG

9244-02-02-SS

9244-04-04-FG

9244-04-04-SS

9244-06-04-FG

9244-06-06-FG

9244-06-06-SS

9244-08-08-FG

9244-08-08-SS

9244-10-10-FG

9244-10-10-SS

9244-12-12-FG

9244-12-12-SS

9244-16-16-FG

9244-16-16-SS

9244-20-20-FG

9244-20-20-SS

9244-24-24-FG

9244-24-24-SS

9244-32-32-FG

9244-32-32-SS

General Attributes

PDF Documents
