9224-FG-BS

9224-02-02-FG-BS

$30.32

Attribute: 9224-02-02-FG-BS (02MBSPP-02FBSP...)

Stock Status: True

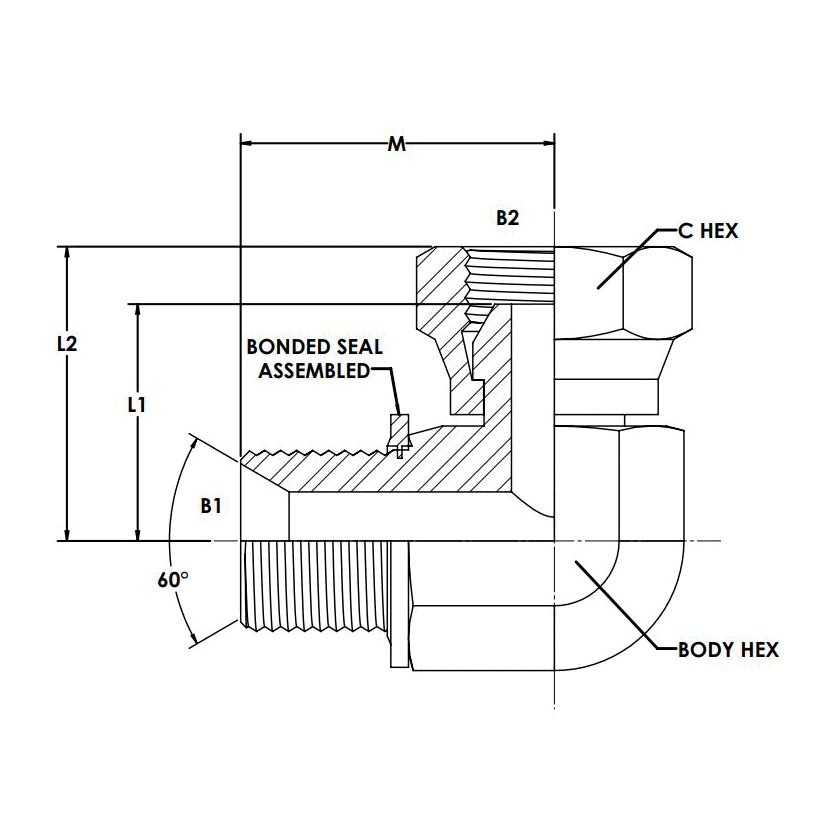

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	11.0
C HEX 1 (MM)	14.0
CENTERLINE LENGTH M (MM)	21.0
CENTERLINE LENGTH L1 (MM)	26.5
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.724

9224-04-02-FG-BS

$35.89

Attribute: 9224-04-02-FG-BS (04MBSPP-02FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
C HEX 1 (MM)	14.0
CENTERLINE LENGTH M (MM)	25.0
CENTERLINE LENGTH L1 (MM)	24.1
CENTERLINE LENGTH L2 (MM)	19.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.850

9224-04-04-FG-BS

$35.89

Attribute: 9224-04-04-FG-BS (04MBSPP-04FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
C HEX 1 (MM)	19.0
CENTERLINE LENGTH M (MM)	27.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	19.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.419

9224-06-04-FG-BS

$43.61

Attribute: 9224-06-04-FG-BS (06MBSPP-04FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	16.0
C HEX 1 (MM)	19.0
CENTERLINE LENGTH M (MM)	28.5
CENTERLINE LENGTH L1 (MM)	25.9
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.435

9224-06-06-FG-BS

$26.54

Attribute: 9224-06-06-FG-BS (06MBSPP-06FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	16.0
C HEX 1 (MM)	22.0
CENTERLINE LENGTH M (MM)	28.5
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	22.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.715

9224-06-06-SS-BS

$298.23

Attribute: 9224-06-06-SS-BS (06MBSPP-06FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	16.0
C HEX 1 (MM)	22.0
CENTERLINE LENGTH M (MM)	28.5
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	22.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.715

9224-08-08-FG-BS

$33.86

Attribute: 9224-08-08-FG-BS (08MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	27.0
CENTERLINE LENGTH M (MM)	34.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	26.8
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.188

9224-08-10-FG-BS

$72.95

Attribute: 9224-08-10-FG-BS (08MBSPP-10FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9224-08-12-FG-BS

$101.05

Attribute: 9224-08-12-FG-BS (08MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M (MM)	36.0
CENTERLINE LENGTH L1 (MM)	26.3
CENTERLINE LENGTH L2 (MM)	28.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.814

9224-10-10-FG-BS

$59.56

Attribute: 9224-10-10-FG-BS (10MBSPP-10FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	30.0
CENTERLINE LENGTH M (MM)	43.0
CENTERLINE LENGTH L1 (MM)	37.8
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.569
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.306

9224-10-12-FG-BS

$69.48

Attribute: 9224-10-12-FG-BS (10MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M (MM)	35.0
CENTERLINE LENGTH L1 (MM)	38.8
CENTERLINE LENGTH L2 (MM)	31.2
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.953

9224-12-08-FG-BS

$69.48

Attribute: 9224-12-08-FG-BS (12MBSPP-08FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9224-12-12-FG-BS

$79.90

Attribute: 9224-12-12-FG-BS (12MBSPP-12FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	32.0
CENTERLINE LENGTH M (MM)	40.0
CENTERLINE LENGTH L1 (MM)	36.3
CENTERLINE LENGTH L2 (MM)	28.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.537
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.203

9224-12-16-FG-BS

$69.48

Attribute: 9224-12-16-FG-BS (12MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

9224-16-16-FG-BS

$143.09

Attribute: 9224-16-16-FG-BS (16MBSPP-16FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.32
C HEX 1 (MM)	41.0
CENTERLINE LENGTH M (MM)	45.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	34.25
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.969
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.204

9224-20-20-FG-BS

$252.77

Attribute: 9224-20-20-FG-BS (20MBSPP-20FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	26.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	50.0
CENTERLINE LENGTH M (MM)	53.5
CENTERLINE LENGTH L1 (MM)	47.5
CENTERLINE LENGTH L2 (MM)	37.3
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.354

9224-24-24-FG-BS

$418.01

Attribute: 9224-24-24-FG-BS (24MBSPP-24FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.8
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	48.0
C HEX 1 (MM)	55.0
CENTERLINE LENGTH M (MM)	59.5
CENTERLINE LENGTH L1 (MM)	55.6
CENTERLINE LENGTH L2 (MM)	43.9
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.208

9224-32-32-FG-BS

$528.66

Attribute: 9224-32-32-FG-BS (32MBSPP-32FBSP...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	63.5
C HEX 1 (MM)	70.0
CENTERLINE LENGTH M (MM)	70.0
CENTERLINE LENGTH L1 (MM)	75.7
CENTERLINE LENGTH L2 (MM)	58.6
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	46.702

Connections	BSP
Shape	Elbow

ID	10150902
Category	Conversion Adapters

Description

Description

Variations (18)

9224-02-02-FG-BS

9224-04-02-FG-BS

9224-04-04-FG-BS

9224-06-04-FG-BS

9224-06-06-FG-BS

9224-06-06-SS-BS

9224-08-08-FG-BS

9224-08-10-FG-BS

9224-08-12-FG-BS

9224-10-10-FG-BS

9224-10-12-FG-BS

9224-12-08-FG-BS

9224-12-12-FG-BS

9224-12-16-FG-BS

9224-16-16-FG-BS

9224-20-20-FG-BS

9224-24-24-FG-BS

9224-32-32-FG-BS

General Attributes

PDF Documents
