Description

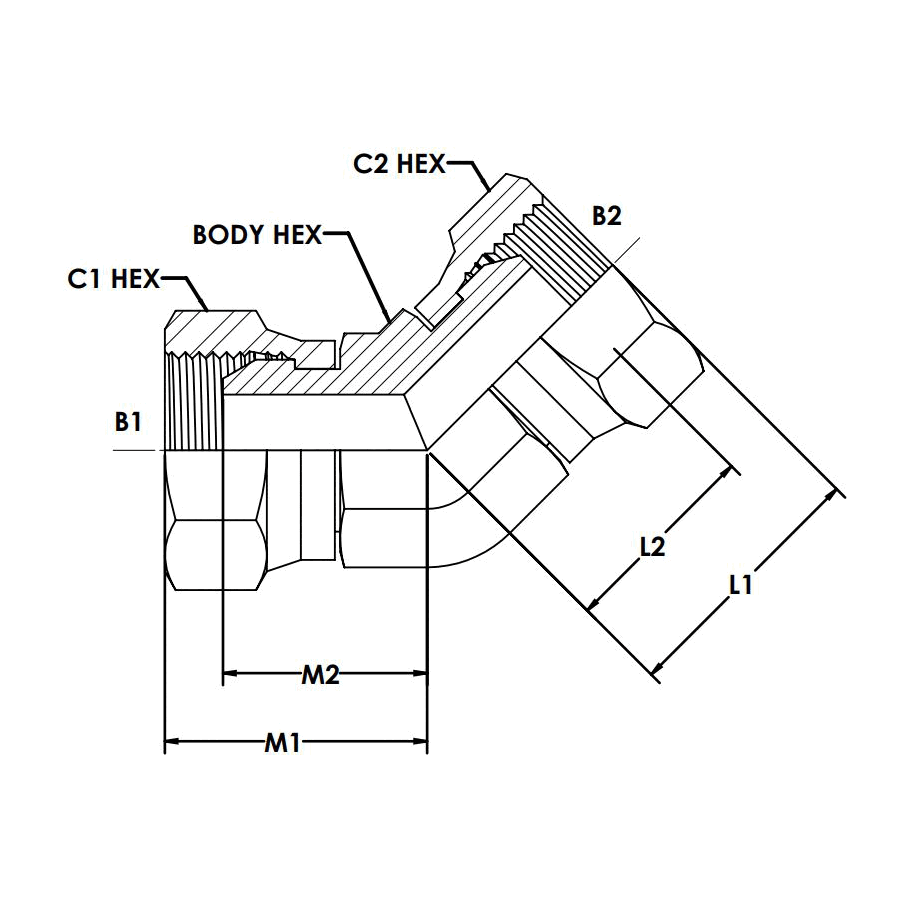

FBSPPS-FBSPPS 45 ELBOW FORGED. FBSPP SWIVEL
Description
Variations (10)
9144-02-02-FG
$37.16Attribute: 9144-02-02-FG (02FBSPPS-02FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-04-04-FG
$33.72Attribute: 9144-04-04-FG (04FBSPPS-04FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-06-06-FG
$42.68Attribute: 9144-06-06-FG (06FBSPPS-06FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-08-08-FG
$30.38Attribute: 9144-08-08-FG (08FBSPPS-08FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-10-10-FG
$54.54Attribute: 9144-10-10-FG (10FBSPPS-10FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 5/8-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 5/8-14 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-12-12-FG
$40.17Attribute: 9144-12-12-FG (12FBSPPS-12FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 8.200 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-16-16-FG
$86.44Attribute: 9144-16-16-FG (16FBSPPS-16FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-20-20-FG
$172.73Attribute: 9144-20-20-FG (20FBSPPS-20FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1-1/4-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-24-24-FG
$220.62Attribute: 9144-24-24-FG (24FBSPPS-24FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1-1/2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-1/2-11 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-32-32-FG
$226.19Attribute: 9144-32-32-FG (32FBSPPS-32FBSPPS...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 2-11 |
| THREAD SPECIFICATION B2 | ISO 8434-6 |
| THREAD SPECIFICAGION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Elbow |
