Description

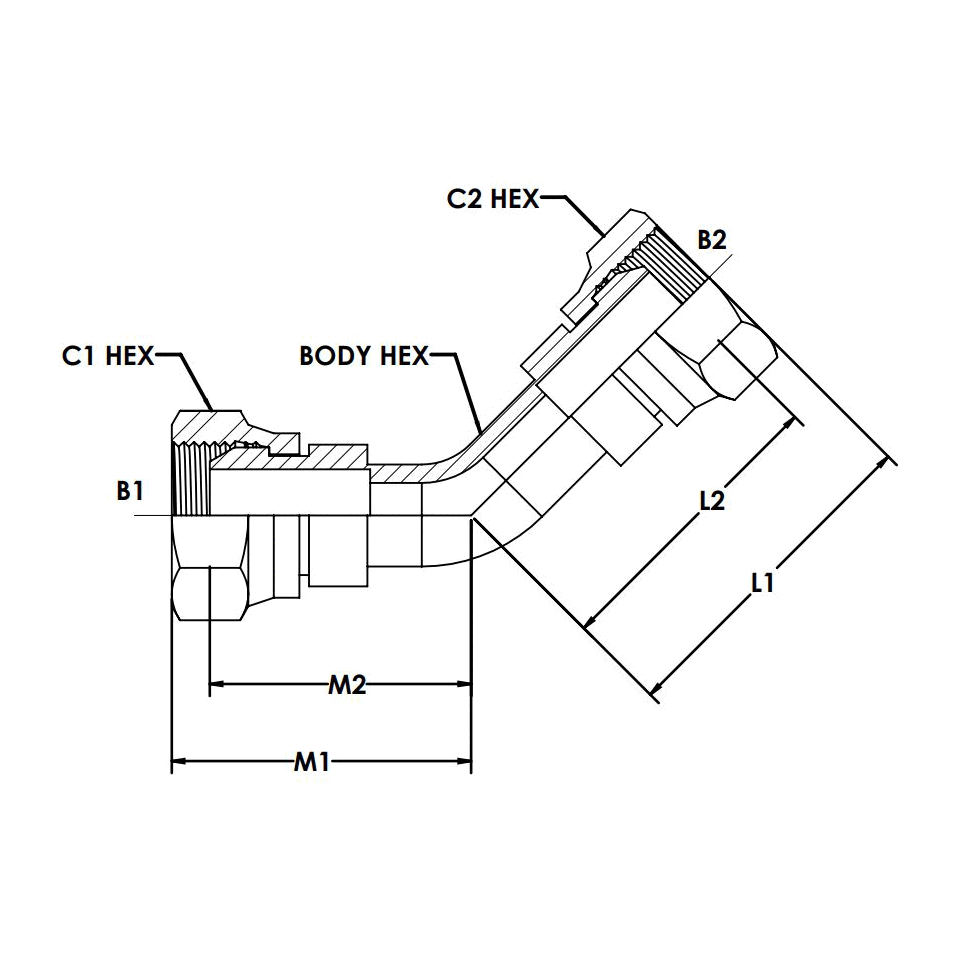

FBSPPS-FBSPPS 45 ELBOW SWEPT BENT TUBE STYLE
Description
Variations (9)
9144-04-04
$24.57Attribute: 9144-04-04 (04FBSPPS-04FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-06-06
$25.35Attribute: 9144-06-06 (06FBSPPS-06FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-08-08
$45.28Attribute: 9144-08-08 (08FBSPPS-08FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-10-10
$76.06Attribute: 9144-10-10 (10FBSPPS-10FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 5/8-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 5/8-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-12-12
$96.43Attribute: 9144-12-12 (12FBSPPS-12FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| WEIGHT (LBS) | 7.500 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-16-16
$141.32Attribute: 9144-16-16 (16FBSPPS-16FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-20-20
$262.26Attribute: 9144-20-20 (20FBSPPS-20FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1-1/4-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-24-24
$187.84Attribute: 9144-24-24 (24FBSPPS-24FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 1-1/2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-1/2-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9144-32-32
$245.93Attribute: 9144-32-32 (32FBSPPS-32FBSPPS Sw...)
Stock Status: True
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
|---|---|
| THREAD SIZE B1 | 2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 2-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Elbow |
