9122-NWO-FG-B2351

Attribute: 9122-04-12-NWO-B2351 (04MBSPP-12...)

Stock Status: True

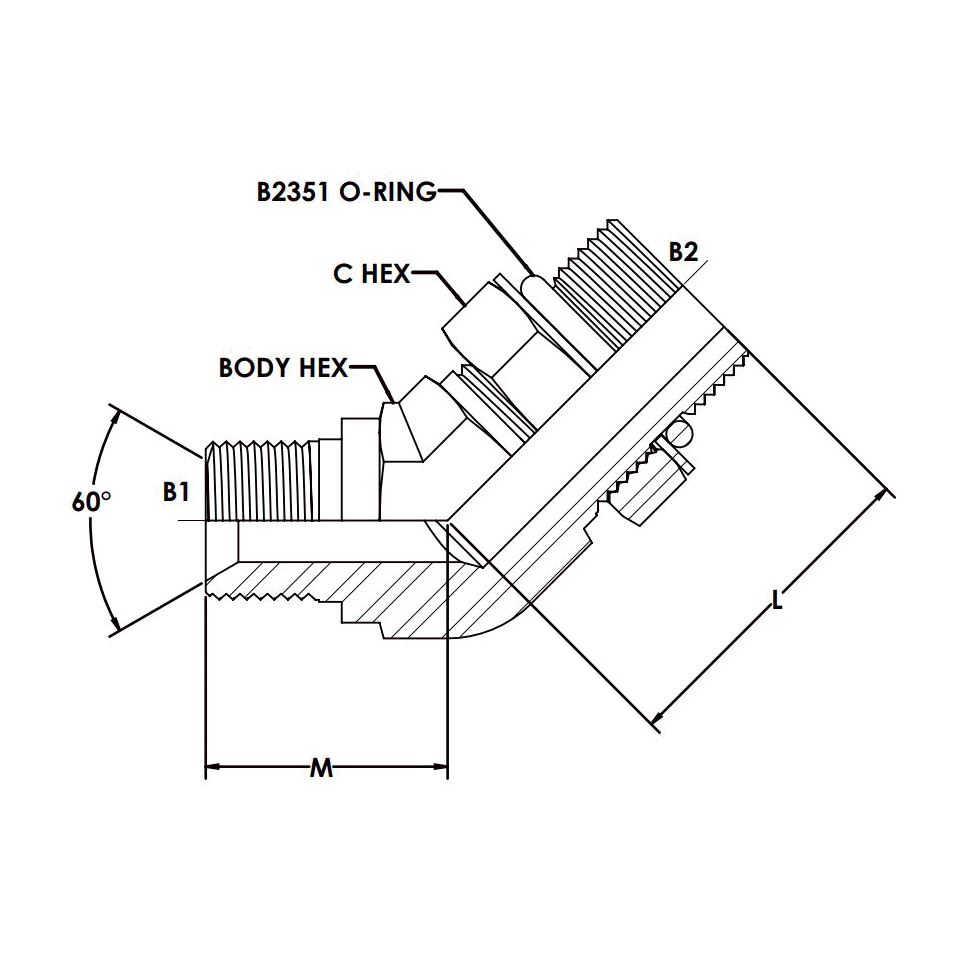

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	11.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE JIS B2351
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
CENTERLINE LENGTH M (MM)	32.0
CENTERLINE LENGTH L (MM)	44.0
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.109
