Description

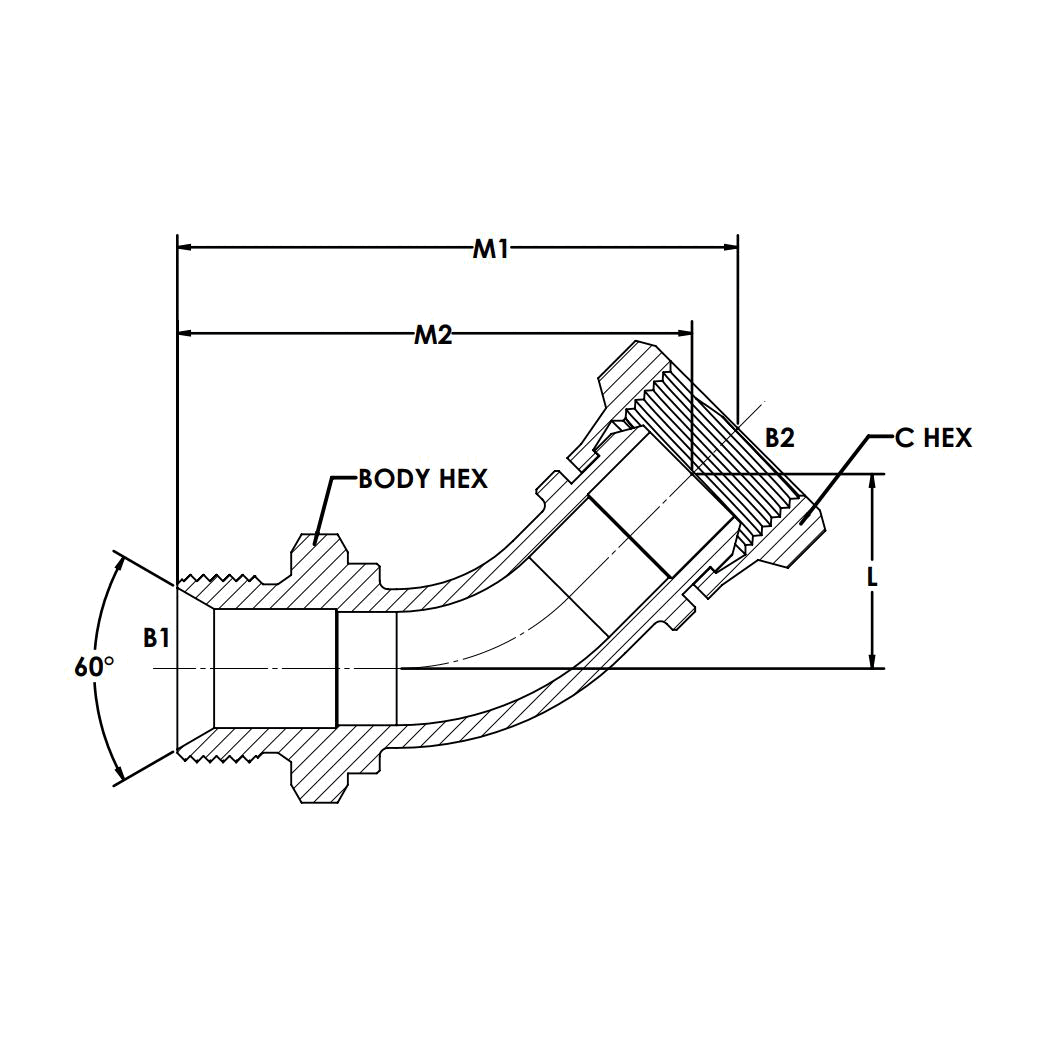

MBSPP-FBSPPS SWEPT 45 ELBOW. FEMALE BSPP SWIVEL
Description
Variations (10)
9124-02-02
$38.40Attribute: 9124-02-02 (02MBSPP-02FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.394 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-04-04
$49.08Attribute: 9124-04-04 (04MBSPP-04FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD DRILL B1 (MM) | 4.7 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 4.7 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 19.0 |
| C HEX 1 (MM) | 19.0 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.121 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-06-06
$54.54Attribute: 9124-06-06 (06MBSPP-06FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD DRILL B1 (MM) | 7.9 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 7.9 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 22.0 |
| C HEX 1 (MM) | 22.0 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.188 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-08-08
$62.17Attribute: 9124-08-08 (08MBSPP-08FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD DRILL B1 (MM) | 11.1 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 11.1 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 27.0 |
| C HEX 1 (MM) | 27.0 |
| CENTERLINE LENGTH M1 (MM) | 38.0 |
| CENTERLINE LENGTH M2 (MM) | 40.0 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.313 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-10-10
$68.86Attribute: 9124-10-10 (10MBSPP-10FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 5/8-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 5/8-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-12-12
$132.07Attribute: 9124-12-12 (12MBSPP-12FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.500 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-16-16
$103.08Attribute: 9124-16-16 (16MBSPP-16FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.831 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-20-20
$162.39Attribute: 9124-20-20 (20MBSPP-20FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-1/4-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-24-24
$239.28Attribute: 9124-24-24 (24MBSPP-24FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-1/2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 1-1/2-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9124-32-32
$488.65Attribute: 9124-32-32 (32MBSPP-32FBSPPS Swe...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP SWIVEL |
| THREAD SIZE B2 | 2-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | BENT TUBE |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Elbow |
