Description

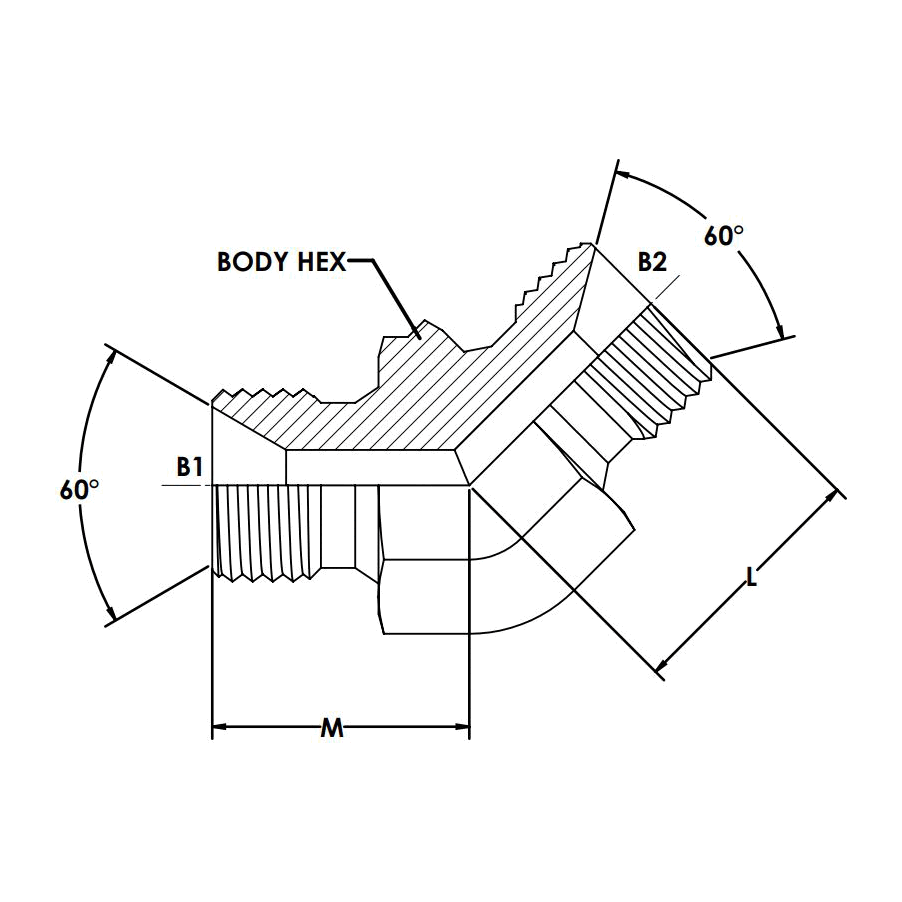

MBSPP-MBSPP 45 ELBOW
Description
Variations (8)
9121-02-02-FG
$27.14Attribute: 9121-02-02-FG (02MBSPP-02MBSPP 4...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9121-04-04-FG
$46.49Attribute: 9121-04-04-FG (04MBSPP-04MBSPP 4...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9121-06-06-FG
$56.19Attribute: 9121-06-06-FG (06MBSPP-06MBSPP 4...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9121-12-12-FG
$167.65Attribute: 9121-12-12-FG (12MBSPP-12MBSPP 4...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9121-16-16-FG
$213.04Attribute: 9121-16-16-FG (16MBSPP-16MBSPP 4...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9121-20-20-FG
$377.66Attribute: 9121-20-20-FG (20MBSPP-20MBSPP 4...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-1/4-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9121-24-24-FG
$513.20Attribute: 9121-24-24-FG (24MBSPP-24MBSPP 4...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-1/2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-1/2-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9121-32-32-FG
$813.39Attribute: 9121-32-32-FG (32MBSPP-32MBSPP 4...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 2-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Elbow |
