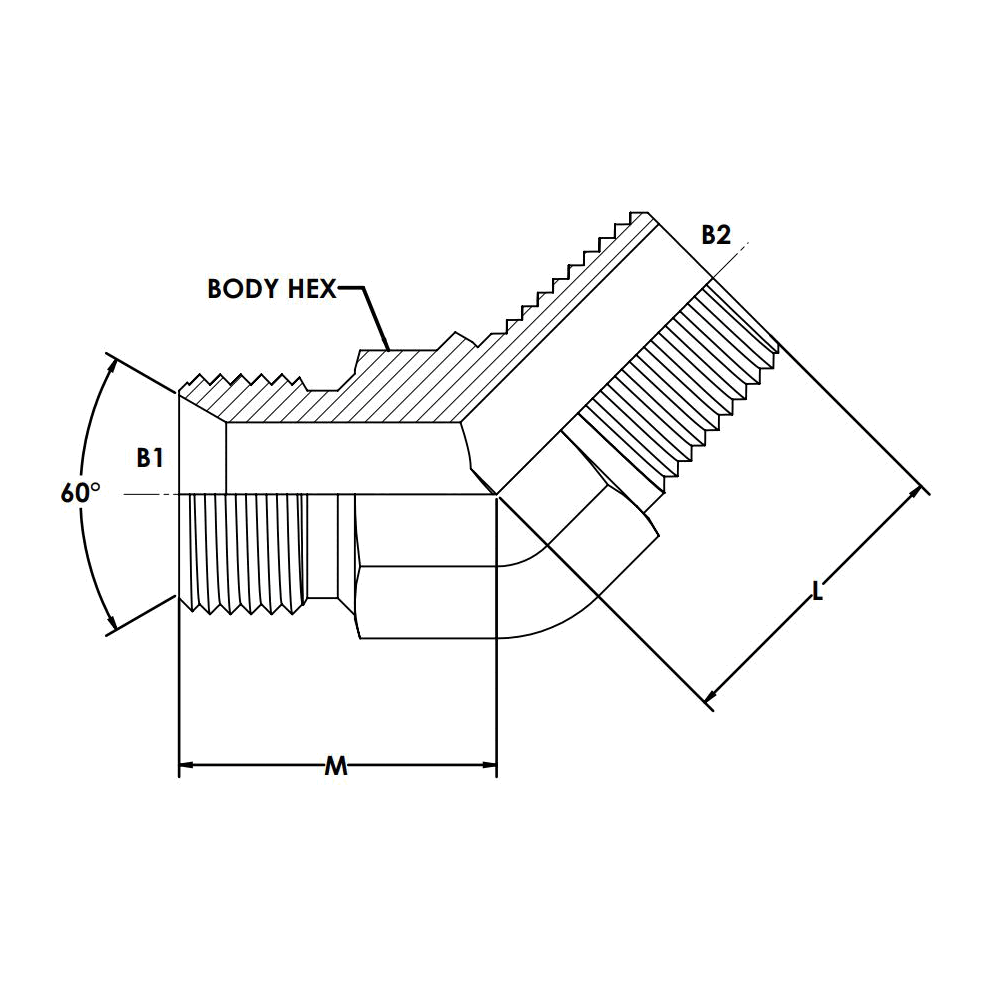

MBSPP-MBSPT 45 ELBOW
Description
Variations (10)
9120-02-02
$27.14Attribute: 9120-02-02 (02MBSPP-02MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-04-02
$54.23Attribute: 9120-04-02 (04MBSPP-02MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-04-04
$46.47Attribute: 9120-04-04 (04MBSPP-04MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-06-06
$50.41Attribute: 9120-06-06 (06MBSPP-06MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-08-08
$60.81Attribute: 9120-08-08 (08MBSPP-08MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-12-12
$159.65Attribute: 9120-12-12 (12MBSPP-12MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-16-16
$213.04Attribute: 9120-16-16 (16MBSPP-16MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-20-20
$377.66Attribute: 9120-20-20 (20MBSPP-20MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-1/4-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-24-24
$513.20Attribute: 9120-24-24 (24MBSPP-24MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-1/2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1-1/2-11 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
9120-32-32
$813.39Attribute: 9120-32-32 (32MBSPP-32MBSPT 45 E...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 2-11 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Elbow |
