9033

9033-02-02

$4.97

Attribute: 9033-02-02 (02FBSPP-02FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200

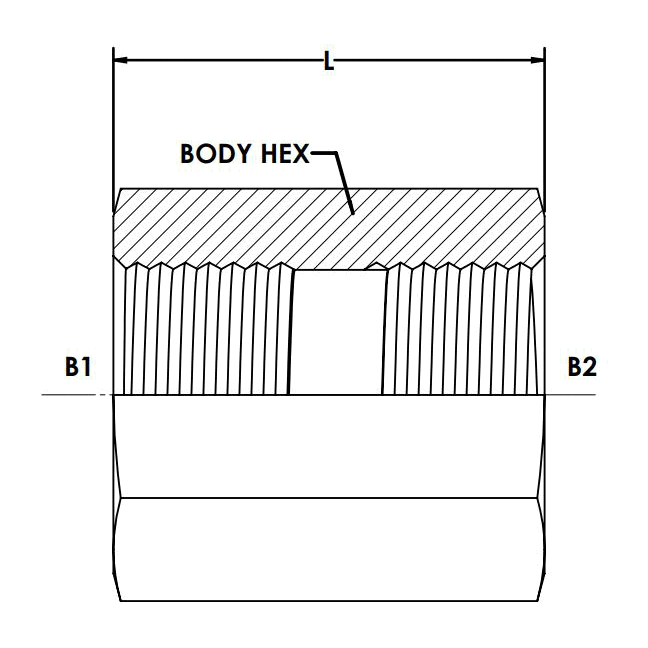

BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	25.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.301

9033-02-02-SS

$98.45

Attribute: 9033-02-02-SS (02FBSPP-02FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	25.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.301

9033-04-02

$7.62

Attribute: 9033-04-02 (04FBSPP-02FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.529

9033-04-04

$20.18

Attribute: 9033-04-04 (04FBSPP-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.595

9033-04-04-B

$52.63

Attribute: 9033-04-04-B (04FBSPP-04FBSPP St...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.595

9033-04-04-SS

$64.98

Attribute: 9033-04-04-SS (04FBSPP-04FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	25.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.560

9033-06-02

$15.50

Attribute: 9033-06-02 (06FBSPP-02FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-06-04

$16.19

Attribute: 9033-06-04 (06FBSPP-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.857

9033-06-06

$20.03

Attribute: 9033-06-06 (06FBSPP-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	29.21
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.863

9033-06-06-SS

$90.13

Attribute: 9033-06-06-SS (06FBSPP-06FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.113
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.857

9033-08-02

$10.63

Attribute: 9033-08-02 (08FBSPP-02FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-08-04

$11.72

Attribute: 9033-08-04 (08FBSPP-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.446

9033-08-06

$16.99

Attribute: 9033-08-06 (08FBSPP-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

9033-08-08

$15.06

Attribute: 9033-08-08 (08FBSPP-08FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	33.02
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.469

9033-08-08-B

$16.46

Attribute: 9033-08-08-B (08FBSPP-08FBSPP St...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT (LBS)	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.335

9033-08-08-SS

$115.28

Attribute: 9033-08-08-SS (08FBSPP-08FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	32.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.450

9033-10-06

$18.16

Attribute: 9033-10-06 (10FBSPP-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-10-08

$22.40

Attribute: 9033-10-08 (10FBSPP-08FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	38.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.098

9033-10-10

$29.09

Attribute: 9033-10-10 (10FBSPP-10FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	38.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.263
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.098

9033-12-04

$52.72

Attribute: 9033-12-04 (12FBSPP-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-12-06

$10.63

Attribute: 9033-12-06 (12FBSPP-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

9033-12-08

$10.58

Attribute: 9033-12-08 (12FBSPP-08FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

9033-12-10

$19.34

Attribute: 9033-12-10 (12FBSPP-10FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-12-12

$19.64

Attribute: 9033-12-12 (12FBSPP-12FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.263
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

9033-12-12-SS

$242.82

Attribute: 9033-12-12-SS (12FBSPP-12FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

9033-16-06

$10.58

Attribute: 9033-16-06 (16FBSPP-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-16-08

$21.46

Attribute: 9033-16-08 (16FBSPP-08FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

9033-16-12

$27.02

Attribute: 9033-16-12 (16FBSPP-12FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

9033-16-16

$29.58

Attribute: 9033-16-16 (16FBSPP-16FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	41.91
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.844
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.299

9033-16-16-SS

$447.21

Attribute: 9033-16-16-SS (16FBSPP-16FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	41.91
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.588
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.299

9033-20-12

$33.42

Attribute: 9033-20-12 (20FBSPP-12FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-20-16

$33.92

Attribute: 9033-20-16 (20FBSPP-16FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.475

9033-20-20

$40.11

Attribute: 9033-20-20 (20FBSPP-20FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	48.26
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.769
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.363

9033-20-20-SS

$410.33

Attribute: 9033-20-20-SS (20FBSPP-20FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	48.26
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.363

9033-24-16

$22.50

Attribute: 9033-24-16 (24FBSPP-16FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.045

9033-24-20

$165.83

Attribute: 9033-24-20 (24FBSPP-20FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-24-24

$105.93

Attribute: 9033-24-24 (24FBSPP-24FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.825
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.045

9033-24-24-SS

$515.43

Attribute: 9033-24-24-SS (24FBSPP-24FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.045

9033-32-24

$132.17

Attribute: 9033-32-24 (32FBSPP-24FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9033-32-32

$93.47

Attribute: 9033-32-32 (32FBSPP-32FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.606
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.941

9033-32-32-SS

$1,627.42

Attribute: 9033-32-32-SS (32FBSPP-32FBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE BSPP (G)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.941

Connections	BSP
Shape	Straight

ID	10150613
Category	Conversion Adapters

Description

Description

Variations (41)

9033-02-02

9033-02-02-SS

9033-04-02

9033-04-04

9033-04-04-B

9033-04-04-SS

9033-06-02

9033-06-04

9033-06-06

9033-06-06-SS

9033-08-02

9033-08-04

9033-08-06

9033-08-08

9033-08-08-B

9033-08-08-SS

9033-10-06

9033-10-08

9033-10-10

9033-12-04

9033-12-06

9033-12-08

9033-12-10

9033-12-12

9033-12-12-SS

9033-16-06

9033-16-08

9033-16-12

9033-16-16

9033-16-16-SS

9033-20-12

9033-20-16

9033-20-20

9033-20-20-SS

9033-24-16

9033-24-20

9033-24-24

9033-24-24-SS

9033-32-24

9033-32-32

9033-32-32-SS

General Attributes

PDF Documents
