9022-BS

9022-02-02-BS

$11.08

Attribute: 9022-02-02-BS (02MBSPP-02MBSPP H...)

Stock Status: True

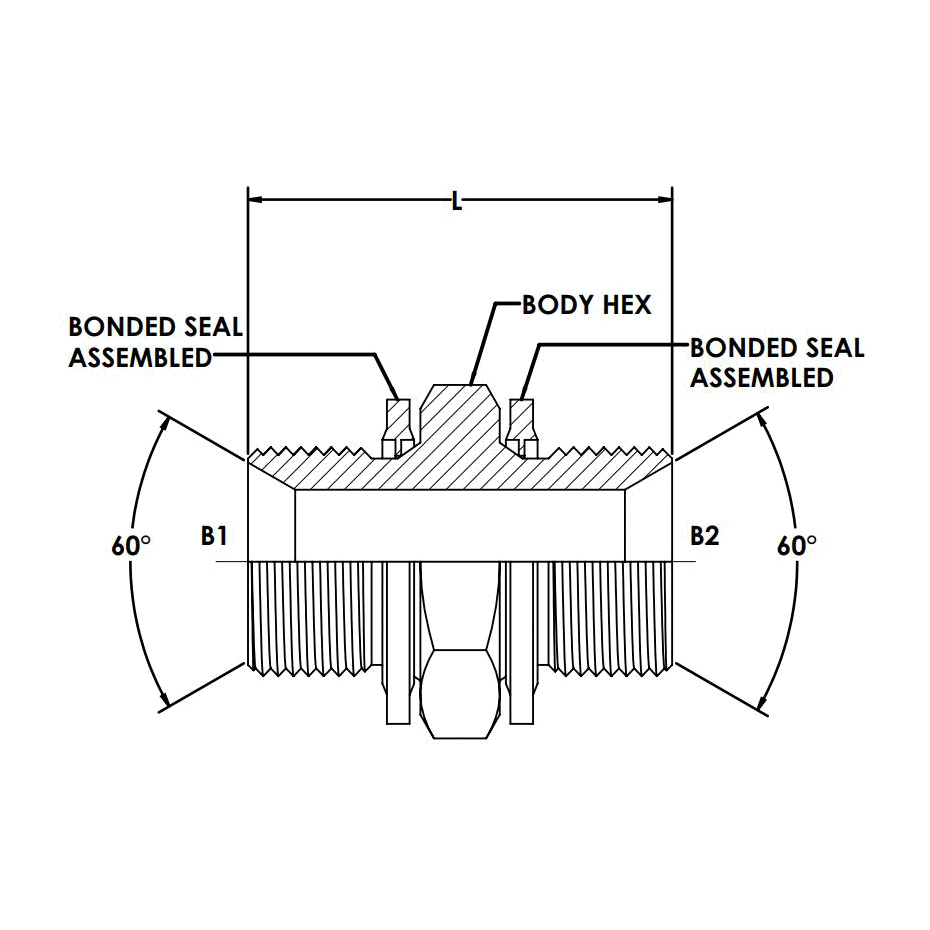

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	4.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-02
ASSEMBLED BSPP BONDED SEAL B2	9900-02
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.040
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.311

9022-04-02-BS

$16.10

Attribute: 9022-04-02-BS (04MBSPP-02MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-04
ASSEMBLED BSPP BONDED SEAL B2	9900-02
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.595

9022-04-04-BS

$15.12

Attribute: 9022-04-04-BS (04MBSPP-04MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.35
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.35
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-04
ASSEMBLED BSPP BONDED SEAL B2	9900-04
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.626

9022-06-04-BS

$17.92

Attribute: 9022-06-04-BS (06MBSPP-04MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	6.35
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.35
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-06
ASSEMBLED BSPP BONDED SEAL B2	9900-04
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	30.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.895

9022-06-06-BS

$17.47

Attribute: 9022-06-06-BS (06MBSPP-06MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-06
ASSEMBLED BSPP BONDED SEAL B2	9900-06
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.105
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.960

9022-08-08-BS

$22.64

Attribute: 9022-08-08-BS (08MBSPP-08MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-08
ASSEMBLED BSPP BONDED SEAL B2	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	37.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.024
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.664

9022-10-10-BS

$32.09

Attribute: 9022-10-10-BS (10MBSPP-10MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	14.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-10
ASSEMBLED BSPP BONDED SEAL B2	9900-10
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.362

9022-12-08-BS

$34.16

Attribute: 9022-12-08-BS (12MBSPP-08MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-12
ASSEMBLED BSPP BONDED SEAL B2	9900-08
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	42.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.311
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.643

9022-12-12-BS

$35.69

Attribute: 9022-12-12-BS (12MBSPP-12MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.1
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-12
ASSEMBLED BSPP BONDED SEAL B2	9900-12
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	46.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.018
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.887

9022-16-08-BS

$82.85

Attribute: 9022-16-08-BS (16MBSPP-08MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-16
ASSEMBLED BSPP BONDED SEAL B2	9900-08
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.026

9022-16-12-BS

$59.11

Attribute: 9022-16-12-BS (16MBSPP-12MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.1
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-16
ASSEMBLED BSPP BONDED SEAL B2	9900-12
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	49.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.043
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.068

9022-16-16-BS

$60.20

Attribute: 9022-16-16-BS (16MBSPP-16MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.2
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-16
ASSEMBLED BSPP BONDED SEAL B2	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.563
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

9022-20-16-BS

$103.81

Attribute: 9022-20-16-BS (20MBSPP-16MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-20
ASSEMBLED BSPP BONDED SEAL B2	9900-16
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.775
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.696

9022-24-24-BS

$195.81

Attribute: 9022-24-24-BS (24MBSPP-24MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-24
ASSEMBLED BSPP BONDED SEAL B2	9900-24
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.238
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

9022-32-32-BS

$196.31

Attribute: 9022-32-32-BS (32MBSPP-32MBSPP H...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL B1	9900-32
ASSEMBLED BSPP BONDED SEAL B2	9900-32
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.931

Connections	BSP
Shape	Straight

ID	10150326
Category	Conversion Adapters

Description

Description

Variations (15)

9022-02-02-BS

9022-04-02-BS

9022-04-04-BS

9022-06-04-BS

9022-06-06-BS

9022-08-08-BS

9022-10-10-BS

9022-12-08-BS

9022-12-12-BS

9022-16-08-BS

9022-16-12-BS

9022-16-16-BS

9022-20-16-BS

9022-24-24-BS

9022-32-32-BS

General Attributes

PDF Documents
