Description

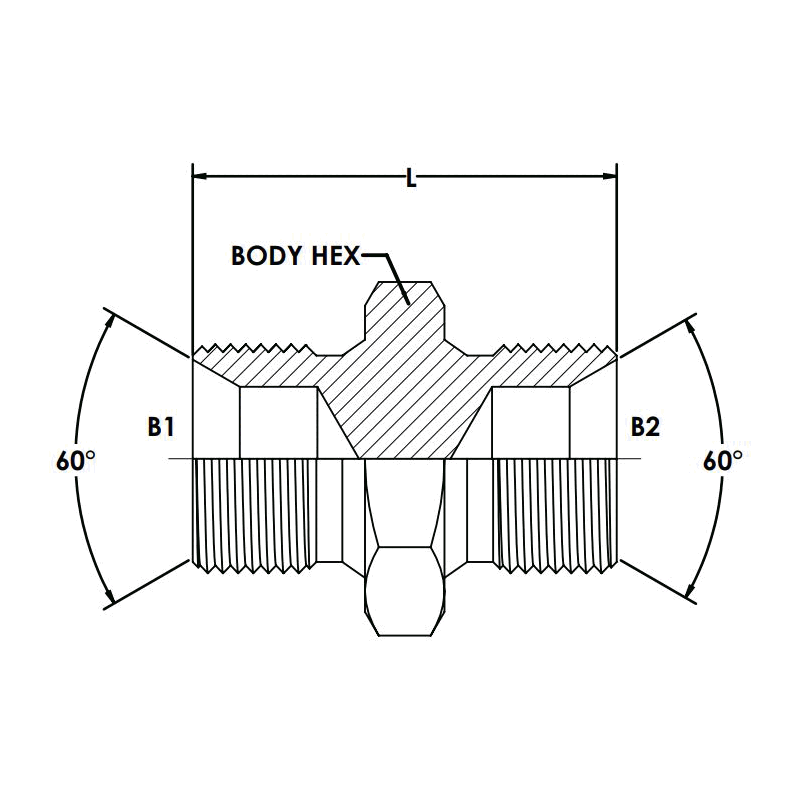

MBSPP-MBSPP STRAIGHT WITH 60 DEGREE SEAT(S). SOLID, NO ORIFICE
Description
Variations (5)
9022-04-04-BLANK
$8.08Attribute: 9022-04-04-BLANK (04MBSPP-04MBSP...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | SOLID |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 30.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.075 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.672 |
9022-06-04-BLANK
$10.09Attribute: 9022-06-04-BLANK (06MBSPP-04MBSP...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | SOLID |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 33.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.106 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.989 |
9022-06-06-BLANK
$10.68Attribute: 9022-06-06-BLANK (06MBSPP-06MBSP...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | SOLID |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 33.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.093 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.989 |
9022-08-06-BLANK
$14.47Attribute: 9022-08-06-BLANK (08MBSPP-06MBSP...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | SOLID |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 39.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.169 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.757 |
9022-08-08-BLANK
$13.15Attribute: 9022-08-08-BLANK (08MBSPP-08MBSP...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | SOLID |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 42.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.188 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.868 |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Straight |
