9020-BS

Attribute: 9020-04-04-BS (04MBSPP-04MBSPT S...)

Stock Status: True

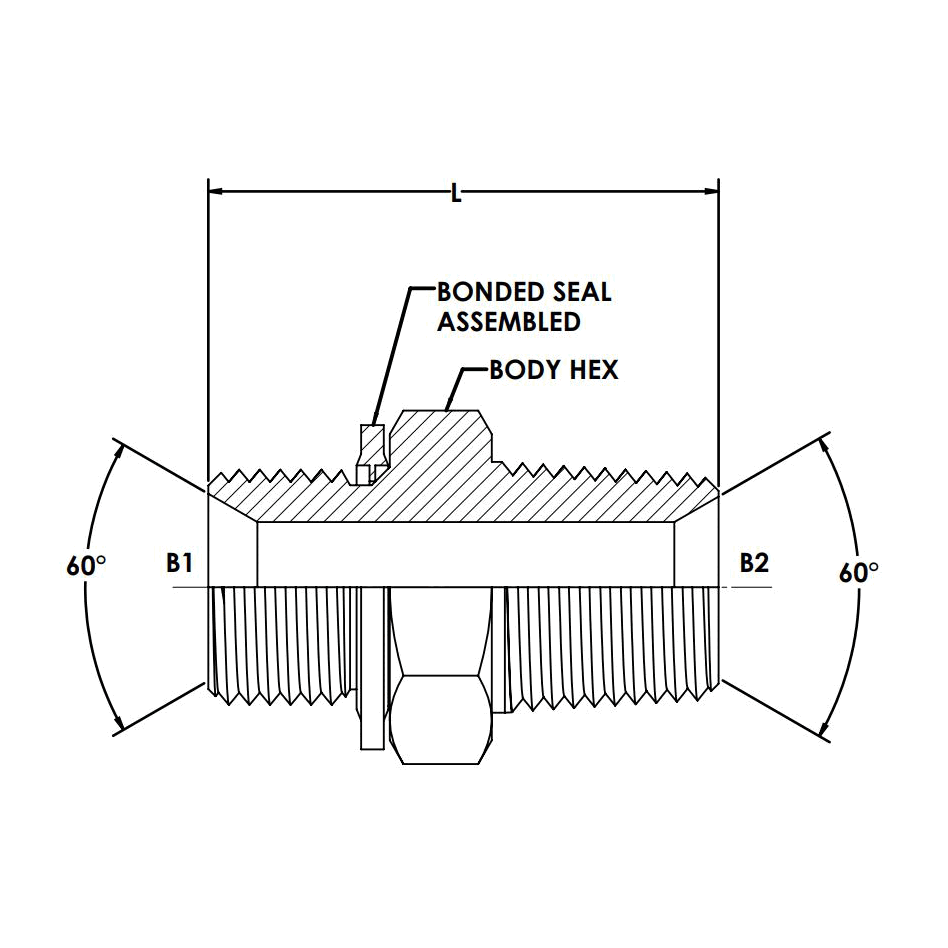

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.3
THREAD SPECIFICATION B1	9900-04
THREAD TYPE 3	MALE BSPT (R)
THREAD SIZE 3	1/4-19
THREAD DRILL 3 (MM)	6.3
THREAD SPECIFICATION 3	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	35.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.778

Attribute: 9020-06-06-BS (06MBSPP-06MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	9900-06
THREAD TYPE 3	MALE BSPT (R)
THREAD SIZE 3	3/8-19
THREAD DRILL 3 (MM)	9.0
THREAD SPECIFICATION 3	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.124
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.049

Attribute: 9020-08-08-BS (08MBSPP-08MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.5
THREAD SPECIFICATION B1	9900-08
THREAD TYPE 3	MALE BSPT (R)
THREAD SIZE 3	1/2-14
THREAD DRILL 3 (MM)	11.5
THREAD SPECIFICATION 3	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.193
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002
