9020

9020-02-02

$8.52

Attribute: 9020-02-02 (02MBSPP-02MBSPT Stra...)

Stock Status: True

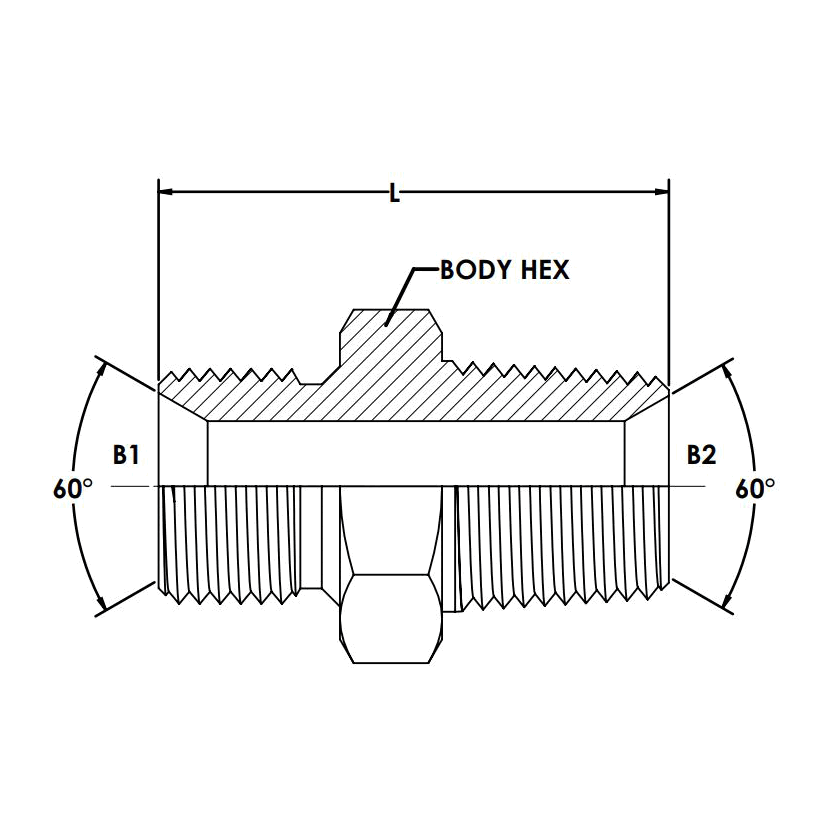

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	4.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	27.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.038
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.327

9020-02-02-SS

$107.39

Attribute: 9020-02-02-SS (02MBSPP-02MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	4.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	27.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.327

9020-02-04

$8.61

Attribute: 9020-02-04 (02MBSPP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	4.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.6
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.395

9020-02-04-SS

$90.13

Attribute: 9020-02-04-SS (02MBSPP-04MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	4.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.6
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.395

9020-02-06

$15.73

Attribute: 9020-02-06 (02MBSPP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-02-08

$27.41

Attribute: 9020-02-08 (02MBSPP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-04-02

$11.38

Attribute: 9020-04-02 (04MBSPP-02MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	5.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

9020-04-02-SS

$138.75

Attribute: 9020-04-02-SS (04MBSPP-02MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	5.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

9020-04-04

$9.79

Attribute: 9020-04-04 (04MBSPP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	35.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.778

9020-04-04-SS

$91.40

Attribute: 9020-04-04-SS (04MBSPP-04MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.3
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	35.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.778

9020-04-06

$15.46

Attribute: 9020-04-06 (04MBSPP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	4.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.760

9020-04-06-SS

$148.36

Attribute: 9020-04-06-SS (04MBSPP-06MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-04-08

$16.34

Attribute: 9020-04-08 (04MBSPP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	11.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	6.35
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

9020-04-12

$21.21

Attribute: 9020-04-12 (04MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-06-02

$15.73

Attribute: 9020-06-02 (06MBSPP-02MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-06-04

$15.06

Attribute: 9020-06-04 (06MBSPP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.034

9020-06-04-SS

$129.95

Attribute: 9020-06-04-SS (06MBSPP-04MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.034

9020-06-06

$11.76

Attribute: 9020-06-06 (06MBSPP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.049

9020-06-06-SS

$136.25

Attribute: 9020-06-06-SS (06MBSPP-06MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.049

9020-06-08

$19.74

Attribute: 9020-06-08 (06MBSPP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.074
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

9020-06-08-SS

$169.83

Attribute: 9020-06-08-SS (06MBSPP-08MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

9020-06-12

$20.93

Attribute: 9020-06-12 (06MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

9020-06-12-SS

$219.09

Attribute: 9020-06-12-SS (06MBSPP-12MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.9
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

9020-06-16

$23.87

Attribute: 9020-06-16 (06MBSPP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-08-02

$27.41

Attribute: 9020-08-02 (08MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-08-04

$24.17

Attribute: 9020-08-04 (08MBSPP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.1
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

9020-08-06

$19.74

Attribute: 9020-08-06 (08MBSPP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.174
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.779

9020-08-06-SS

$166.13

Attribute: 9020-08-06-SS (08MBSPP-06MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.779

9020-08-08

$16.89

Attribute: 9020-08-08 (08MBSPP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.5
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

9020-08-08-SS

$209.90

Attribute: 9020-08-08-SS (08MBSPP-08MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	47.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.095

9020-08-10

$16.99

Attribute: 9020-08-10 (08MBSPP-10MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-08-12

$19.10

Attribute: 9020-08-12 (08MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	10.8
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	47.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.126

9020-08-12-SS

$354.91

Attribute: 9020-08-12-SS (08MBSPP-12MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	10.8
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	47.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.126

9020-08-16

$37.90

Attribute: 9020-08-16 (08MBSPP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	10.8
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.847

9020-10-06

$22.64

Attribute: 9020-10-06 (10MBSPP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-10-08

$15.06

Attribute: 9020-10-08 (10MBSPP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	4.200
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-10-08-SS

$222.16

Attribute: 9020-10-08-SS (10MBSPP-08MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-10-10

$16.99

Attribute: 9020-10-10 (10MBSPP-10MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-10-12

$17.03

Attribute: 9020-10-12 (10MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	5/8-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-12-04

$14.72

Attribute: 9020-12-04 (12MBSPP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-12-06

$15.50

Attribute: 9020-12-06 (12MBSPP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-12-08

$18.02

Attribute: 9020-12-08 (12MBSPP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.124

9020-12-08-SS

$220.78

Attribute: 9020-12-08-SS (12MBSPP-08MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.124

9020-12-10

$19.74

Attribute: 9020-12-10 (12MBSPP-10MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-12-12

$30.42

Attribute: 9020-12-12 (12MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.306
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.031

9020-12-12-SS

$251.48

Attribute: 9020-12-12-SS (12MBSPP-12MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.031

9020-12-16

$30.46

Attribute: 9020-12-16 (12MBSPP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.488

9020-12-16-SS

$276.05

Attribute: 9020-12-16-SS (12MBSPP-16MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.7
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.488

9020-12-20

$61.73

Attribute: 9020-12-20 (12MBSPP-20MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-12-24

$93.37

Attribute: 9020-12-24 (12MBSPP-24MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-16-04

$26.98

Attribute: 9020-16-04 (16MBSPP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-16-06

$16.99

Attribute: 9020-16-06 (16MBSPP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-16-08

$17.77

Attribute: 9020-16-08 (16MBSPP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-16-10

$19.10

Attribute: 9020-16-10 (16MBSPP-10MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-16-12

$44.25

Attribute: 9020-16-12 (16MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	52.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.481
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.386

9020-16-12-SS

$346.58

Attribute: 9020-16-12-SS (16MBSPP-12MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	52.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.386

9020-16-16

$43.07

Attribute: 9020-16-16 (16MBSPP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.481
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.950

9020-16-16-SS

$286.54

Attribute: 9020-16-16-SS (16MBSPP-16MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.950

9020-16-20

$45.54

Attribute: 9020-16-20 (16MBSPP-20MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.2
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.520

9020-16-20-SS

$437.86

Attribute: 9020-16-20-SS (16MBSPP-20MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.2
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.520

9020-16-24

$59.81

Attribute: 9020-16-24 (16MBSPP-24MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.076

9020-16-32

$208.42

Attribute: 9020-16-32 (16MBSPP-32MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-20-12

$108.46

Attribute: 9020-20-12 (20MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-20-16

$49.96

Attribute: 9020-20-16 (20MBSPP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	59.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.001

9020-20-20

$91.70

Attribute: 9020-20-20 (20MBSPP-20MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.75
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	58.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.719
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.925

9020-20-20-SS

$499.53

Attribute: 9020-20-20-SS (20MBSPP-20MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.75
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	58.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.925

9020-20-24

$93.67

Attribute: 9020-20-24 (20MBSPP-24MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	28.6
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	66.29
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.113

9020-20-32

$103.47

Attribute: 9020-20-32 (20MBSPP-32MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-24-12

$44.40

Attribute: 9020-24-12 (24MBSPP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-24-16

$47.51

Attribute: 9020-24-16 (24MBSPP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-24-20

$51.63

Attribute: 9020-24-20 (24MBSPP-20MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-24-24

$88.31

Attribute: 9020-24-24 (24MBSPP-24MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	64.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.038
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

9020-24-24-SS

$705.60

Attribute: 9020-24-24-SS (24MBSPP-24MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	33.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	64.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

9020-24-32

$127.93

Attribute: 9020-24-32 (24MBSPP-32MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-32-16

$94.26

Attribute: 9020-32-16 (32MBSPP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-32-20

$196.55

Attribute: 9020-32-20 (32MBSPP-20MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-32-24

$83.14

Attribute: 9020-32-24 (32MBSPP-24MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-32-32

$82.31

Attribute: 9020-32-32 (32MBSPP-32MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	71.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.744
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.260

9020-32-32-SS

$1,319.00

Attribute: 9020-32-32-SS (32MBSPP-32MBSPT S...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	71.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.260

9020-32-40

$141.32

Attribute: 9020-32-40 (32MBSPP-40MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	46.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-1/2-11
THREAD DRILL B2 (MM)	54.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	82.55
OVERALL LENGTH L (MM)	77.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	32.020

9020-40-32

$291.21

Attribute: 9020-40-32 (40MBSPP-32MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-1/2-11
THREAD DRILL B1 (MM)	54.0
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	82.55
OVERALL LENGTH L (MM)	79.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	32.852

9020-40-40

$580.99

Attribute: 9020-40-40 (40MBSPP-40MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	2-1/2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9020-48-48

$871.49

Attribute: 9020-48-48 (48MBSPP-48MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (83)

9020-02-02

9020-02-02-SS

9020-02-04

9020-02-04-SS

9020-02-06

9020-02-08

9020-04-02

9020-04-02-SS

9020-04-04

9020-04-04-SS

9020-04-06

9020-04-06-SS

9020-04-08

9020-04-12

9020-06-02

9020-06-04

9020-06-04-SS

9020-06-06

9020-06-06-SS

9020-06-08

9020-06-08-SS

9020-06-12

9020-06-12-SS

9020-06-16

9020-08-02

9020-08-04

9020-08-06

9020-08-06-SS

9020-08-08

9020-08-08-SS

9020-08-10

9020-08-12

9020-08-12-SS

9020-08-16

9020-10-06

9020-10-08

9020-10-08-SS

9020-10-10

9020-10-12

9020-12-04

9020-12-06

9020-12-08

9020-12-08-SS

9020-12-10

9020-12-12

9020-12-12-SS

9020-12-16

9020-12-16-SS

9020-12-20

9020-12-24

9020-16-04

9020-16-06

9020-16-08

9020-16-10

9020-16-12

9020-16-12-SS

9020-16-16

9020-16-16-SS

9020-16-20

9020-16-20-SS

9020-16-24

9020-16-32

9020-20-12

9020-20-16

9020-20-20

9020-20-20-SS

9020-20-24

9020-20-32

9020-24-12

9020-24-16

9020-24-20

9020-24-24

9020-24-24-SS

9020-24-32

9020-32-16

9020-32-20
