9001

9001-02-04-SS

$171.64

Attribute: 9001-02-04-SS (02MBSPT-04FBSPT R...)

Stock Status: True

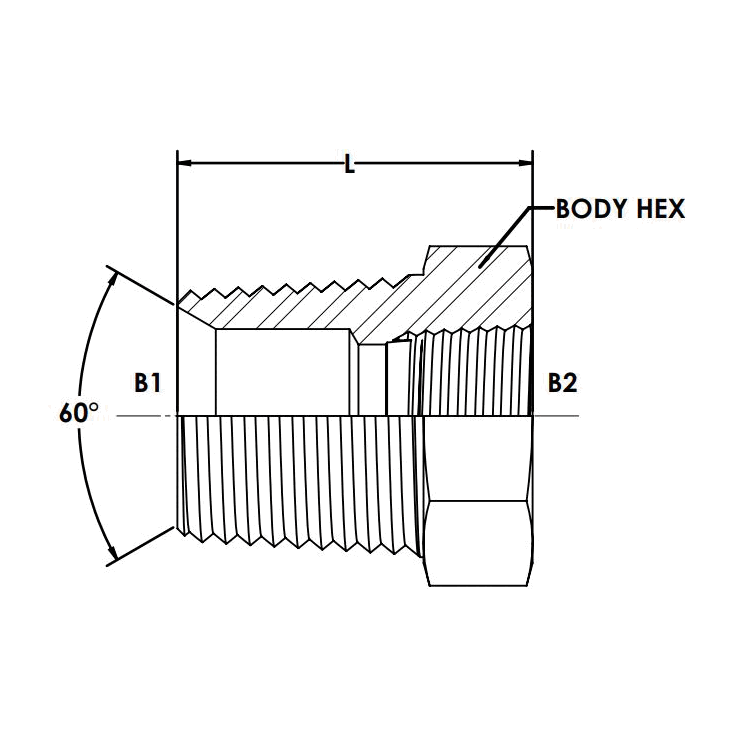

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-04-02

$13.43

Attribute: 9001-04-02 (04MBSPT-02FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	7.14
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.038
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.287

9001-04-02-SS

$137.37

Attribute: 9001-04-02-SS (04MBSPT-02FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	7.14
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.287

9001-04-04-SS

$153.46

Attribute: 9001-04-04-SS (04MBSPT-04FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-04-08-SS

$203.45

Attribute: 9001-04-08-SS (04MBSPT-08FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-06-02

$17.62

Attribute: 9001-06-02 (06MBSPT-02FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	10.31
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	21.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

9001-06-02-SS

$172.24

Attribute: 9001-06-02-SS (06MBSPT-02FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	10.31
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	21.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

9001-06-04

$15.66

Attribute: 9001-06-04 (06MBSPT-04FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.507

9001-06-04-SS

$156.08

Attribute: 9001-06-04-SS (06MBSPT-04FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.507

9001-06-08

$48.44

Attribute: 9001-06-08 (06MBSPT-08FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-08-02

$21.34

Attribute: 9001-08-02 (08MBSPT-02FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-08-04

$21.37

Attribute: 9001-08-04 (08MBSPT-04FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.9
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	26.85
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.810

9001-08-04-SS

$198.42

Attribute: 9001-08-04-SS (08MBSPT-04FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.9
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	26.85
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.810

9001-08-06

$21.46

Attribute: 9001-08-06 (08MBSPT-06FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.49
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.827

9001-08-06-SS

$192.51

Attribute: 9001-08-06-SS (08MBSPT-06FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.49
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.827

9001-12-04

$22.98

Attribute: 9001-12-04 (12MBSPT-04FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-12-06

$31.01

Attribute: 9001-12-06 (12MBSPT-06FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.379

9001-12-06-SS

$259.85

Attribute: 9001-12-06-SS (12MBSPT-06FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-12-08

$29.88

Attribute: 9001-12-08 (12MBSPT-08FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.9
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	28.58
OVERALL LENGTH L (MM)	29.75
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.483

9001-12-08-SS

$236.44

Attribute: 9001-12-08-SS (12MBSPT-08FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.9
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	28.58
OVERALL LENGTH L (MM)	29.75
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.483

9001-16-02

$96.86

Attribute: 9001-16-02 (16MBSPT-02FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-16-04

$64.68

Attribute: 9001-16-04 (16MBSPT-04FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-16-06

$106.53

Attribute: 9001-16-06 (16MBSPT-06FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-16-08

$68.92

Attribute: 9001-16-08 (16MBSPT-08FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.325
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-16-08-SS

$320.40

Attribute: 9001-16-08-SS (16MBSPT-08FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-16-12

$48.93

Attribute: 9001-16-12 (16MBSPT-12FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.926

9001-16-16-SS

$413.43

Attribute: 9001-16-16-SS (16MBSPT-16FBSPT R...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-20-02

$170.43

Attribute: 9001-20-02 (20MBSPT-02FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-20-04

$170.43

Attribute: 9001-20-04 (20MBSPT-04FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-20-06

$151.07

Attribute: 9001-20-06 (20MBSPT-06FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-20-08

$135.58

Attribute: 9001-20-08 (20MBSPT-08FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-20-12

$129.77

Attribute: 9001-20-12 (20MBSPT-12FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-20-16

$117.30

Attribute: 9001-20-16 (20MBSPT-16FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	29.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.482
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.907

9001-24-02

$199.49

Attribute: 9001-24-02 (24MBSPT-02FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-24-04

$199.49

Attribute: 9001-24-04 (24MBSPT-04FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-24-06

$199.49

Attribute: 9001-24-06 (24MBSPT-06FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-24-08

$199.49

Attribute: 9001-24-08 (24MBSPT-08FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-24-12

$195.45

Attribute: 9001-24-12 (24MBSPT-12FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-24-16

$219.69

Attribute: 9001-24-16 (24MBSPT-16FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-32-06

$290.51

Attribute: 9001-32-06 (32MBSPT-06FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-32-08

$290.51

Attribute: 9001-32-08 (32MBSPT-08FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-32-12

$481.38

Attribute: 9001-32-12 (32MBSPT-12FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-32-16

$275.02

Attribute: 9001-32-16 (32MBSPT-16FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	75.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.596

9001-32-20

$257.59

Attribute: 9001-32-20 (32MBSPT-20FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9001-32-24

$232.41

Attribute: 9001-32-24 (32MBSPT-24FBSPT Redu...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	FEMALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	BSP
Shape	Straight

ID	10150087
Category	Conversion Adapters

Description

Description

Variations (45)

9001-02-04-SS

9001-04-02

9001-04-02-SS

9001-04-04-SS

9001-04-08-SS

9001-06-02

9001-06-02-SS

9001-06-04

9001-06-04-SS

9001-06-08

9001-08-02

9001-08-04

9001-08-04-SS

9001-08-06

9001-08-06-SS

9001-12-04

9001-12-06

9001-12-06-SS

9001-12-08

9001-12-08-SS

9001-16-02

9001-16-04

9001-16-06

9001-16-08

9001-16-08-SS

9001-16-12

9001-16-16-SS

9001-20-02

9001-20-04

9001-20-06

9001-20-08

9001-20-12

9001-20-16

9001-24-02

9001-24-04

9001-24-06

9001-24-08

9001-24-12

9001-24-16

9001-32-06

9001-32-08

9001-32-12

9001-32-16

9001-32-20

9001-32-24

General Attributes

PDF Documents
