9000

9000-02-02

$11.12

Attribute: 9000-02-02 (02MBSPT-02MBSPT Hex ...)

Stock Status: True

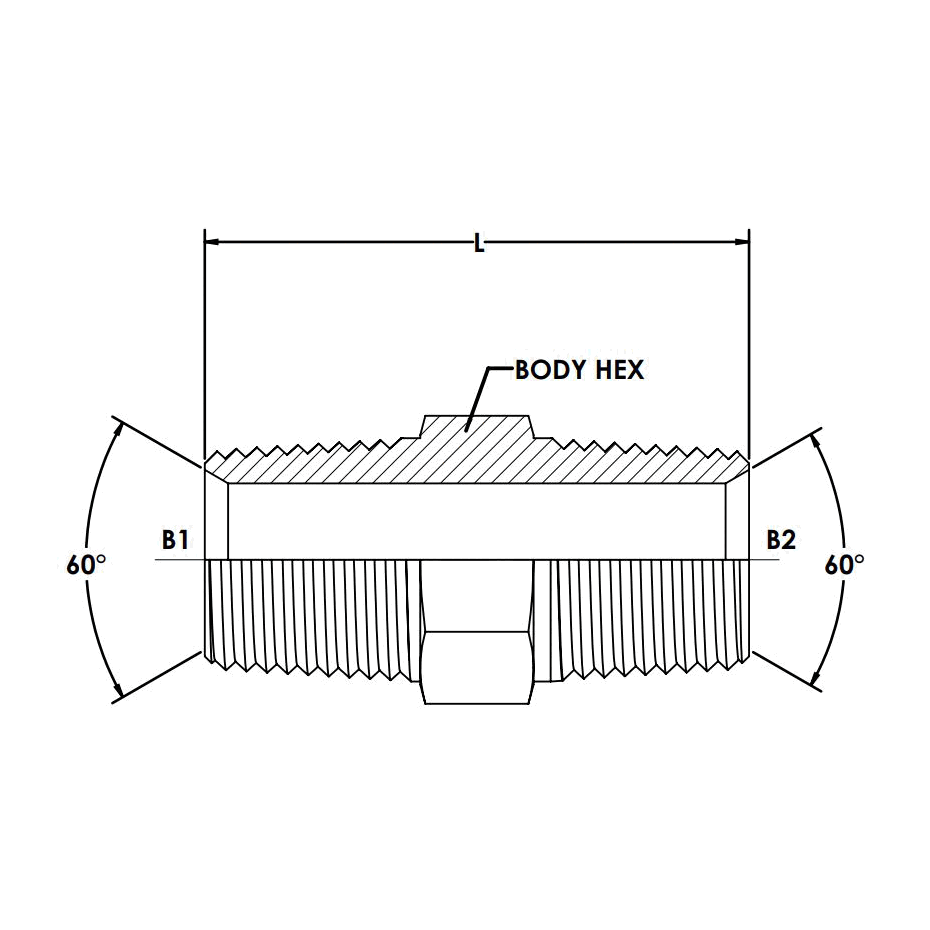

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	12.0
OVERALL LENGTH L (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.228

9000-02-02-SS

$137.63

Attribute: 9000-02-02-SS (02MBSPT-02MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/8-28
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	12.0
OVERALL LENGTH L (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.228

9000-04-02

$12.55

Attribute: 9000-04-02 (04MBSPT-02MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.365

9000-04-02-SS

$217.84

Attribute: 9000-04-02-SS (04MBSPT-02MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.365

9000-04-04

$10.09

Attribute: 9000-04-04 (04MBSPT-04MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.443

9000-04-04-SS

$41.30

Attribute: 9000-04-04-SS (04MBSPT-04MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/4-19
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.443

9000-06-02

$11.08

Attribute: 9000-06-02 (06MBSPT-02MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.5
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.4
OVERALL LENGTH L (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.684

9000-06-04

$14.08

Attribute: 9000-06-04 (06MBSPT-04MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.626

9000-06-04-SS

$124.54

Attribute: 9000-06-04-SS (06MBSPT-04MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.626

9000-06-06

$14.82

Attribute: 9000-06-06 (06MBSPT-06MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.635

9000-06-06-SS

$139.05

Attribute: 9000-06-06-SS (06MBSPT-06MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	9.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.635

9000-08-04

$19.74

Attribute: 9000-08-04 (08MBSPT-04MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.49
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	46.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.367

9000-08-04-SS

$207.43

Attribute: 9000-08-04-SS (08MBSPT-04MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.49
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	46.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.367

9000-08-06

$20.28

Attribute: 9000-08-06 (08MBSPT-06MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.270

9000-08-06-SS

$234.10

Attribute: 9000-08-06-SS (08MBSPT-06MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.270

9000-08-08

$20.93

Attribute: 9000-08-08 (08MBSPT-08MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.49
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	13.49
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.418

9000-08-08-SS

$205.86

Attribute: 9000-08-08-SS (08MBSPT-08MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.49
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	13.49
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.418

9000-10-10

$21.61

Attribute: 9000-10-10 (10MBSPT-10MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	5/8-14
THREAD DRILL B1 (MM)	15.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	26.0
OVERALL LENGTH L (MM)	53.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.215

9000-12-04

$41.07

Attribute: 9000-12-04 (12MBSPT-04MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-12-06

$34.89

Attribute: 9000-12-06 (12MBSPT-06MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-12-08

$32.09

Attribute: 9000-12-08 (12MBSPT-08MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.135

9000-12-08-SS

$232.08

Attribute: 9000-12-08-SS (12MBSPT-08MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.135

9000-12-12

$29.88

Attribute: 9000-12-12 (12MBSPT-12MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.180

9000-12-12-SS

$301.93

Attribute: 9000-12-12-SS (12MBSPT-12MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.180

9000-16-08

$92.97

Attribute: 9000-16-08 (16MBSPT-08MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-16-08-SS

$535.20

Attribute: 9000-16-08-SS (16MBSPT-08MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-16-12

$48.54

Attribute: 9000-16-12 (16MBSPT-12MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.26
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.350

9000-16-12-SS

$625.74

Attribute: 9000-16-12-SS (16MBSPT-12MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.26
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.350

9000-16-16

$68.22

Attribute: 9000-16-16 (16MBSPT-16MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	23.83
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	59.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.413
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

9000-16-16-SS

$346.74

Attribute: 9000-16-16-SS (16MBSPT-16MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-11
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	23.83
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	59.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

9000-20-12

$129.77

Attribute: 9000-20-12 (20MBSPT-12MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-20-16

$112.34

Attribute: 9000-20-16 (20MBSPT-16MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-20-20

$68.76

Attribute: 9000-20-20 (20MBSPT-20MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	31.75
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.75
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.581
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.006

9000-20-20-SS

$923.92

Attribute: 9000-20-20-SS (20MBSPT-20MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/4-11
THREAD DRILL B1 (MM)	31.75
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.75
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.006

9000-24-12

$130.69

Attribute: 9000-24-12 (24MBSPT-12MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	31.75
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	31.75
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.006

9000-24-16

$130.69

Attribute: 9000-24-16 (24MBSPT-16MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-24-20

$130.69

Attribute: 9000-24-20 (24MBSPT-20MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-24-24

$127.05

Attribute: 9000-24-24 (24MBSPT-24MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	35.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	35.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	67.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.719
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.222

9000-24-24-SS

$1,237.26

Attribute: 9000-24-24-SS (24MBSPT-24MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	1-1/2-11
THREAD DRILL B1 (MM)	35.0
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	35.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	67.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.222

9000-32-20

$410.56

Attribute: 9000-32-20 (32MBSPT-20MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	65.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-32-24

$342.80

Attribute: 9000-32-24 (32MBSPT-24MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	65.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-32-32

$257.64

Attribute: 9000-32-32 (32MBSPT-32MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	49.23
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	49.23
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	65.0
OVERALL LENGTH L (MM)	71.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.169
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.306

9000-32-32-SS

$1,203.18

Attribute: 9000-32-32-SS (32MBSPT-32MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-11
THREAD DRILL B1 (MM)	49.23
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	49.23
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	65.0
OVERALL LENGTH L (MM)	71.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.306

9000-40-40

$823.07

Attribute: 9000-40-40 (40MBSPT-40MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-40-40-SS

$2,217.82

Attribute: 9000-40-40-SS (40MBSPT-40MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	2-1/2-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-48-48

$1,258.81

Attribute: 9000-48-48 (48MBSPT-48MBSPT Hex ...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

9000-48-48-SS

$5,729.37

Attribute: 9000-48-48-SS (48MBSPT-48MBSPT H...)

Stock Status: True

THREAD TYPE B1	MALE BSPT (R)
THREAD SIZE B1	3-11
THREAD SPECIFICATION B1	ISO 7-1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	BSP
Shape	Straight

ID	10150037
Category	Conversion Adapters

Description

Description

Variations (47)

9000-02-02

9000-02-02-SS

9000-04-02

9000-04-02-SS

9000-04-04

9000-04-04-SS

9000-06-02

9000-06-04

9000-06-04-SS

9000-06-06

9000-06-06-SS

9000-08-04

9000-08-04-SS

9000-08-06

9000-08-06-SS

9000-08-08

9000-08-08-SS

9000-10-10

9000-12-04

9000-12-06

9000-12-08

9000-12-08-SS

9000-12-12

9000-12-12-SS

9000-16-08

9000-16-08-SS

9000-16-12

9000-16-12-SS

9000-16-16

9000-16-16-SS

9000-20-12

9000-20-16

9000-20-20

9000-20-20-SS

9000-24-12

9000-24-16

9000-24-20

9000-24-24

9000-24-24-SS

9000-32-20

9000-32-24

9000-32-32

9000-32-32-SS

9000-40-40

9000-40-40-SS

9000-48-48

9000-48-48-SS

General Attributes

PDF Documents
