8800

8800-06

$1.97

Attribute: 8800-06 (06 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 06 METRIC

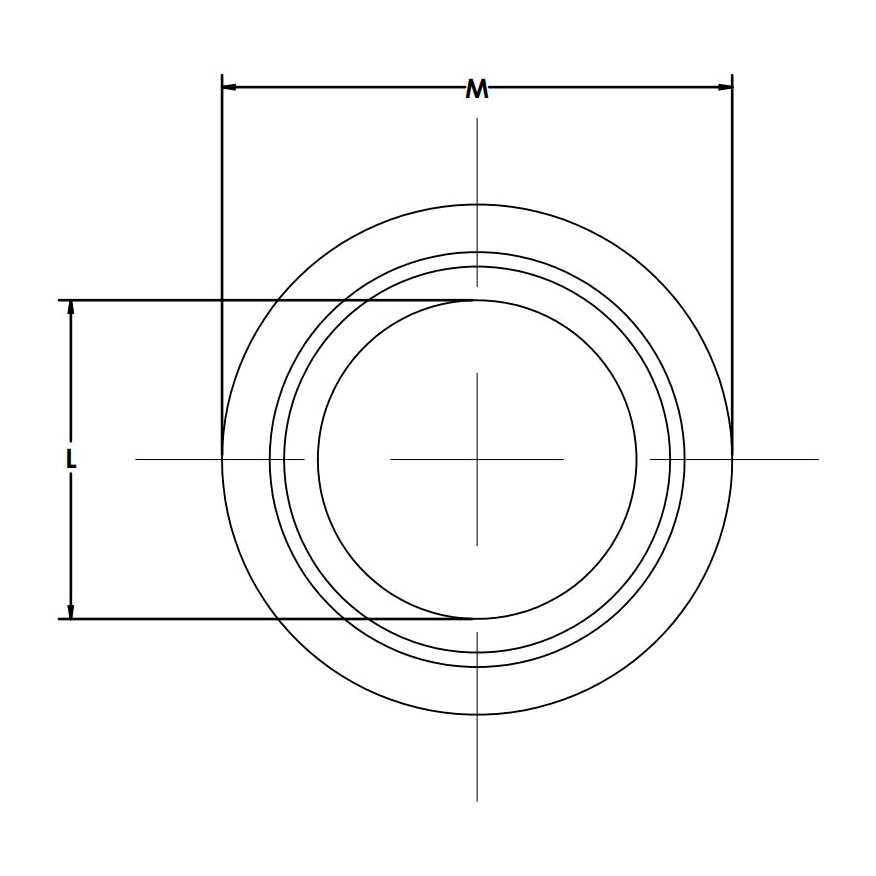

DIAMETER L (MM)	4.7
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	1.6
DIAMETER M (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.001
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.010

8800-06-SS

$6.50

Attribute: 8800-06-SS (06 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 06 METRIC
DIAMETER L (MM)	4.7
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	1.6
DIAMETER M (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.010

8800-08

$2.07

Attribute: 8800-08 (08 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 08 METRIC
DIAMETER L (MM)	6.4
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	1.6
DIAMETER M (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.002
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.017

8800-08-SS

$7.24

Attribute: 8800-08-SS (08 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 08 METRIC
DIAMETER L (MM)	6.4
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	1.6
DIAMETER M (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.017

8800-10

$2.17

Attribute: 8800-10 (10 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 10 METRIC
DIAMETER L (MM)	8.05
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.045

8800-10-SS

$11.66

Attribute: 8800-10-SS (10 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 10 METRIC
DIAMETER L (MM)	8.05
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.002
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.045

8800-12

$2.51

Attribute: 8800-12 (12 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 12 METRIC
DIAMETER L (MM)	9.73
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.003
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.045

8800-12-SS

$9.15

Attribute: 8800-12-SS (12 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 12 METRIC
DIAMETER L (MM)	9.73
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.045

8800-12-VITON

$9.65

Attribute: 8800-12-VITON (12 Metric Bonded ...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 12 METRIC
DIAMETER L (MM)	9.73
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.045

8800-14

$2.76

Attribute: 8800-14 (14 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 14 METRIC
DIAMETER L (MM)	11.38
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.005
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.068

8800-14-SS

$10.78

Attribute: 8800-14-SS (14 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 14 METRIC
DIAMETER L (MM)	11.38
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.063
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.068

8800-14-VITON

$9.89

Attribute: 8800-14-VITON (14 Metric Bonded ...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 14 METRIC
DIAMETER L (MM)	11.38
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.068

8800-16

$2.86

Attribute: 8800-16 (16 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 16 METRIC
DIAMETER L (MM)	13.41
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.088

8800-16-SS

$13.25

Attribute: 8800-16-SS (16 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 16 METRIC
DIAMETER L (MM)	13.41
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.088

8800-18

$2.90

Attribute: 8800-18 (18 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 18 METRIC
DIAMETER L (MM)	14.76
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.095

8800-18-SS

$18.66

Attribute: 8800-18-SS (18 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 18 METRIC
DIAMETER L (MM)	14.76
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.095

8800-18-VITON

$10.04

Attribute: 8800-18-VITON (18 Metric Bonded ...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 18 METRIC
DIAMETER L (MM)	14.76
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.095

8800-20

$3.84

Attribute: 8800-20 (20 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 20 METRIC
DIAMETER L (MM)	16.76
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.110

8800-20-SS

$17.03

Attribute: 8800-20-SS (20 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 20 METRIC
DIAMETER L (MM)	16.76
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.3
DIAMETER M (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	4.313
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.110

8800-22

$5.37

Attribute: 8800-22 (22 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 22 METRIC
DIAMETER L (MM)	18.74
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.010
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.154

8800-22-SS

$73.64

Attribute: 8800-22-SS (22 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 22 METRIC
DIAMETER L (MM)	18.74
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.154

8800-23

$37.81

Attribute: 8800-23 (23 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 23 METRIC
THREAD SPECIFICATION B1	ISO 9974
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
CALIFORNIA RESIDENTS	PROP-65 WARNING

8800-24

$7.44

Attribute: 8800-24 (24 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 24 METRIC
DIAMETER L (MM)	20.11
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.019
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.175

8800-24-SS

$123.46

Attribute: 8800-24-SS (24 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 24 METRIC
DIAMETER L (MM)	20.11
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.175

8800-26

$8.96

Attribute: 8800-26 (26 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 26 METRIC
DIAMETER L (MM)	22.30
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.209

8800-26-SS

$122.12

Attribute: 8800-26-SS (26 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 26 METRIC
DIAMETER L (MM)	22.30
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.209

8800-26-VITON

$16.10

Attribute: 8800-26-VITON (26 Metric Bonded ...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 26 METRIC
DIAMETER L (MM)	22.30
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.019
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.209

8800-27

$11.62

Attribute: 8800-27 (27 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 27 METRIC
DIAMETER L (MM)	23.30
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.221

8800-27-SS

$33.28

Attribute: 8800-27-SS (27 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 27 METRIC
DIAMETER L (MM)	23.30
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.221

8800-27-VITON

$18.76

Attribute: 8800-27-VITON (27 Metric Bonded ...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 27 METRIC
DIAMETER L (MM)	23.30
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.019
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.221

8800-30

$15.36

Attribute: 8800-30 (30 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 30 METRIC
DIAMETER L (MM)	25.70
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.260

8800-30-SS

$55.46

Attribute: 8800-30-SS (30 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 30 METRIC
DIAMETER L (MM)	25.70
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.260

8800-33

$16.24

Attribute: 8800-33 (33 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 33 METRIC
DIAMETER L (MM)	28.70
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.301

8800-33-SS

$38.83

Attribute: 8800-33-SS (33 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 33 METRIC
DIAMETER L (MM)	28.70
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.301

8800-36

$24.27

Attribute: 8800-36 (36 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 36 METRIC
DIAMETER L (MM)	31.10
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.019
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.362

8800-36-SS

$66.55

Attribute: 8800-36-SS (36 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 36 METRIC
DIAMETER L (MM)	31.10
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	2.8
DIAMETER M (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.362

8800-42

$32.19

Attribute: 8800-42 (42 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 42 METRIC
DIAMETER L (MM)	36.50
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	3.8
DIAMETER M (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.038
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.651

8800-42-SS

$55.46

Attribute: 8800-42-SS (42 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 42 METRIC
DIAMETER L (MM)	36.50
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	3.8
DIAMETER M (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.651

8800-45

$45.34

Attribute: 8800-45 (45 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 45 METRIC
THREAD SPECIFICATION B1	ISO 9974
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.031
CALIFORNIA RESIDENTS	PROP-65 WARNING

8800-48

$46.76

Attribute: 8800-48 (48 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 48 METRIC
DIAMETER L (MM)	41.90
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	3.8
DIAMETER M (MM)	59.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.038
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.807

8800-48-SS

$92.42

Attribute: 8800-48-SS (48 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 48 METRIC
DIAMETER L (MM)	41.90
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	3.8
DIAMETER M (MM)	59.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.807

8800-52

$121.98

Attribute: 8800-52 (52 Metric Bonded Seal 9...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 52 METRIC
DIAMETER L (MM)	46.0
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	3.8
DIAMETER M (MM)	64.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.044
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.965

8800-52-SS

$120.15

Attribute: 8800-52-SS (52 Metric Bonded Sea...)

Stock Status: True

THREAD TYPE B1	BONDED SEAL FOR METRIC THREAD
THREAD SIZE B1	BONDED SEAL FOR SIZE 52 METRIC
DIAMETER L (MM)	46.0
THREAD SPECIFICATION B1	ISO 9974
WIDTH W (MM)	3.8
DIAMETER M (MM)	64.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.965

Connections	Metric
Shape	Other

ID	10149969
Category	Conversion Adapters

Description

Description

Variations (43)

8800-06

8800-06-SS

8800-08

8800-08-SS

8800-10

8800-10-SS

8800-12

8800-12-SS

8800-12-VITON

8800-14

8800-14-SS

8800-14-VITON

8800-16

8800-16-SS

8800-18

8800-18-SS

8800-18-VITON

8800-20

8800-20-SS

8800-22

8800-22-SS

8800-23

8800-24

8800-24-SS

8800-26

8800-26-SS

8800-26-VITON

8800-27

8800-27-SS

8800-27-VITON

8800-30

8800-30-SS

8800-33

8800-33-SS

8800-36

8800-36-SS

8800-42

8800-42-SS

8800-45

8800-48

8800-48-SS

8800-52

8800-52-SS

General Attributes

PDF Documents
