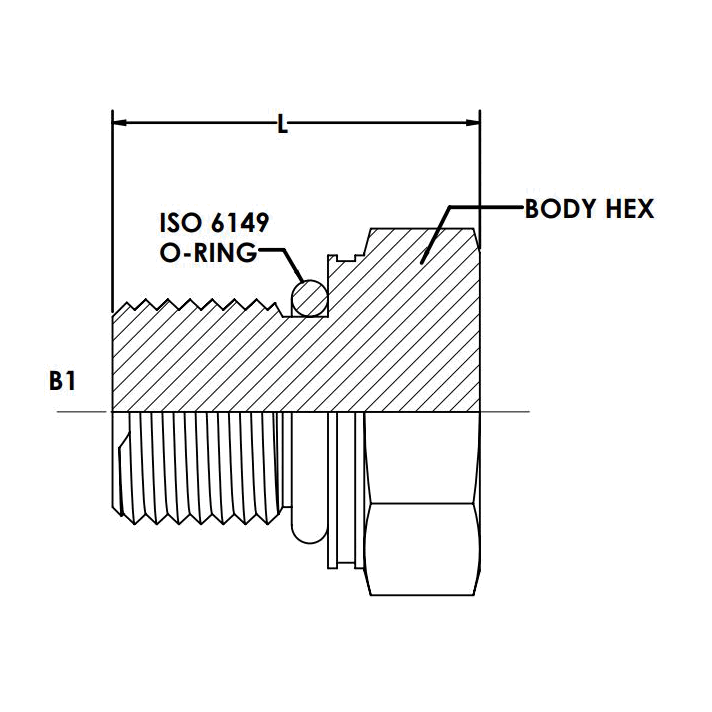

METRIC ISO 6149 HEX HEAD PLUG
Description
Variations (8)
8556-P-10-O
$9.41Attribute: 8556-P-10-O (10MMX1.0 ISO 6149 O...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC ISO 6149 O-RING |
|---|---|
| THREAD SIZE B1 | M10X1.0 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 6149 O-RING PORT |
| BODY HEX (MM) | 14.0 |
| OVERALL LENGTH L (MM) | 16.2 |
| OVERALL LENGTH W (MM) | 5.1 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.031 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 8,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.194 |
8556-P-12-O
$11.42Attribute: 8556-P-12-O (12MMX1.5 ISO 6149 O...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC ISO 6149 O-RING |
|---|---|
| THREAD SIZE B1 | M12X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 6149 O-RING PORT |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 18.5 |
| OVERALL LENGTH W (MM) | 5.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.050 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 9,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.326 |
8556-P-14-O
$14.42Attribute: 8556-P-14-O (14MMX1.5 ISO 6149 O...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC ISO 6149 O-RING |
|---|---|
| THREAD SIZE B1 | M14X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 6149 O-RING PORT |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 19.5 |
| OVERALL LENGTH W (MM) | 6.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.075 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 9,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.430 |
8556-P-16-O
$18.60Attribute: 8556-P-16-O (16MMX1.5 ISO 6149 O...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC ISO 6149 O-RING |
|---|---|
| THREAD SIZE B1 | M16X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 6149 O-RING PORT |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 21.5 |
| OVERALL LENGTH W (MM) | 7.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.106 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 9,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.635 |
8556-P-18-O
$19.94Attribute: 8556-P-18-O (18MMX1.5 ISO 6149 O...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC ISO 6149 O-RING |
|---|---|
| THREAD SIZE B1 | M18X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 6149 O-RING PORT |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 23.5 |
| OVERALL LENGTH W (MM) | 8.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.144 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 9,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.826 |
8556-P-18-O-VITON
$27.08Attribute: 8556-P-18-O-VITON (18MMX1.5 ISO ...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC ISO 6149 O-RING |
|---|---|
| THREAD SIZE B1 | M18X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 6149 O-RING PORT |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 23.5 |
| OVERALL LENGTH W (MM) | 8.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.144 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 9,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.826 |
8556-P22-O
$26.44Attribute: 8556-P22-O (22MMX1.5 ISO 6149 O-...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC ISO 6149 O-RING |
|---|---|
| THREAD SIZE B1 | M22X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 6149 O-RING PORT |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 25.5 |
| OVERALL LENGTH W (MM) | 10.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.213 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.134 |
8556-P22-O-ZN
$37.01Attribute: 8556-P22-O-ZN (22MMX1.5 ISO 6149...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC ISO 6149 O-RING |
|---|---|
| THREAD SIZE B1 | M22X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 6149 O-RING PORT |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 22.5 |
| OVERALL LENGTH W (MM) | 10.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.213 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.001 |
General Attributes
| Connections | Metric |
|---|---|
| Shape | Plug |
