8555-P

8555-P-08

$7.82

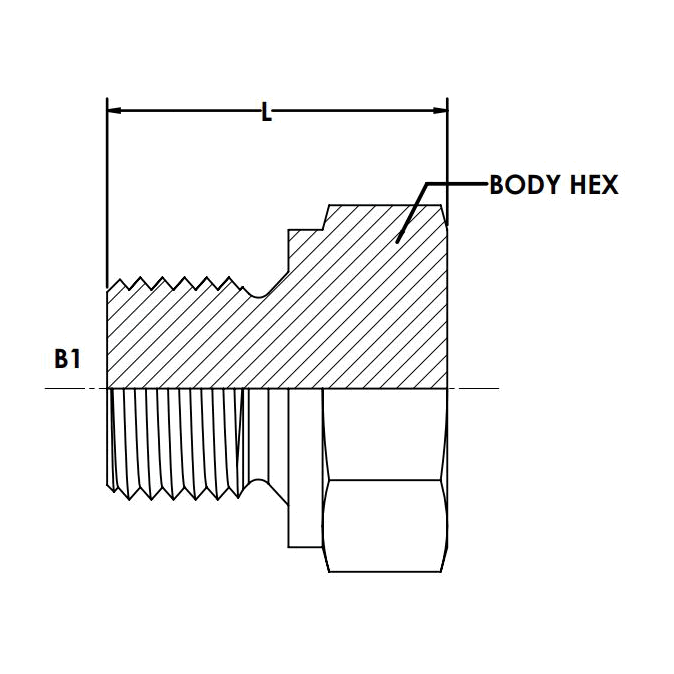

Attribute: 8555-P-08 (08MMx1.0 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M08X1.0
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	12.0
OVERALL LENGTH L (MM)	13.5
OVERALL LENGTH W (MM)	4.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.119

8555-P-10

$9.31

Attribute: 8555-P-10 (10MMx1.0 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M10X1.0
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	15.0
OVERALL LENGTH W (MM)	5.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.179

8555-P-10X1.5

$13.33

Attribute: 8555-P-10X1.5 (10MMx1.5 Metric H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M10X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	15.0
OVERALL LENGTH W (MM)	6.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.179

8555-P-12

$13.83

Attribute: 8555-P-12 (12MMx1.5 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M12X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	20.0
OVERALL LENGTH W (MM)	6.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.353

8555-P-14

$12.95

Attribute: 8555-P-14 (14MMx1.5 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M14X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	20.0
OVERALL LENGTH W (MM)	6.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.441

8555-P-16

$14.86

Attribute: 8555-P-16 (16MMx1.5 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M16X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	20.0
OVERALL LENGTH W (MM)	6.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.591

8555-P-18

$16.89

Attribute: 8555-P-18 (18MMx1.5 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M18X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	21.0
OVERALL LENGTH W (MM)	6.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.738

8555-P-20

$19.69

Attribute: 8555-P-20 (20MMx1.5 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M20X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	23.0
OVERALL LENGTH W (MM)	7.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.163
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.023

8555-P-22

$20.43

Attribute: 8555-P-22 (22MMx1.5 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M22X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	23.0
OVERALL LENGTH W (MM)	6.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.023

8555-P-22-SV

$31.80

Attribute: 8555-P-22-SV (22MMx1.5 Metric He...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M22X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.147
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

8555-P-24

$27.91

Attribute: 8555-P-24 (24MMx1.5 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M24X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	25.0
OVERALL LENGTH W (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.373

8555-P-26

$34.02

Attribute: 8555-P-26 (26MMx1.5 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M26X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	28.0
OVERALL LENGTH W (MM)	10.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.094
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.750

8555-P-30

$60.98

Attribute: 8555-P-30 (30MMx2.0 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M30X2.0
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	30.0
OVERALL LENGTH W (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.406
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.373

8555-P-30X1.5

$60.98

Attribute: 8555-P-30X1.5 (30MMx1.5 Metric H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M30X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	38.1
OVERALL LENGTH L (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.319
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.613

8555-P-36

$137.28

Attribute: 8555-P-36 (36MMx2.0 Metric Hex H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M36X2.0
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	28.0
OVERALL LENGTH W (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.613
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.616

8555-P-36X1.5

$41.88

Attribute: 8555-P-36X1.5 (36MMx1.5 Metric H...)

Stock Status: True

THREAD TYPE B1	MALE METRIC
THREAD SIZE B1	M36X1.5
THREAD DRILL B1 (MM)	SOLID
THREAD SPECIFICATION B1	ISO 9974
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	Metric
Shape	Plug

ID	10149926
Category	Conversion Adapters

Description

Description

Variations (16)

8555-P-08

8555-P-10

8555-P-10X1.5

8555-P-12

8555-P-14

8555-P-16

8555-P-18

8555-P-20

8555-P-22

8555-P-22-SV

8555-P-24

8555-P-26

8555-P-30

8555-P-30X1.5

8555-P-36

8555-P-36X1.5
