Description

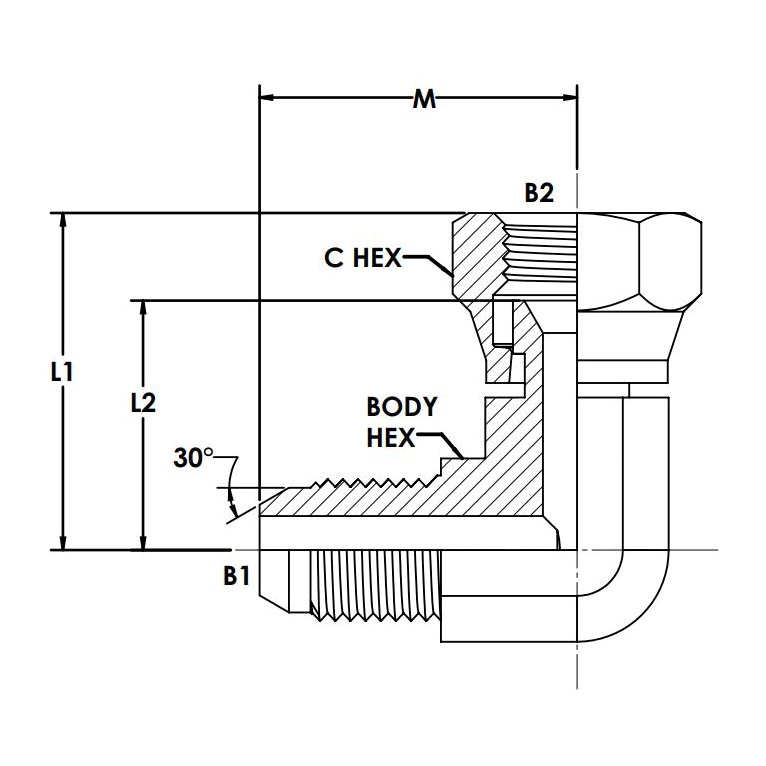

MJIS-FJISS 90 ELBOW. FEMALE JIS SWIVEL
Description
Variations (3)
8288-04-04-FG
$35.69Attribute: 8288-04-04-FG (04MJIS-04FJISS 90...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | JIS B 0202 |
| THREAD TYPE B2 | FEMALE JIS SWIVEL 30 DEG FLARE |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | JIS B 0202 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.131 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
8288-06-06-FG
$44.25Attribute: 8288-06-06-FG (06MJIS-06FJISS 90...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | JIS B 0202 |
| THREAD TYPE B2 | FEMALE JIS SWIVEL 30 DEG FLARE |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | JIS B 0202 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.219 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
8288-08-08-FG
$50.26Attribute: 8288-08-08-FG (08MJIS-08FJISS 90...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | JIS B 0202 |
| THREAD TYPE B2 | FEMALE JIS SWIVEL 30 DEG FLARE |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | JIS B 0202 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.381 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIS, Other |
|---|---|
| Shape | Elbow |
