Description

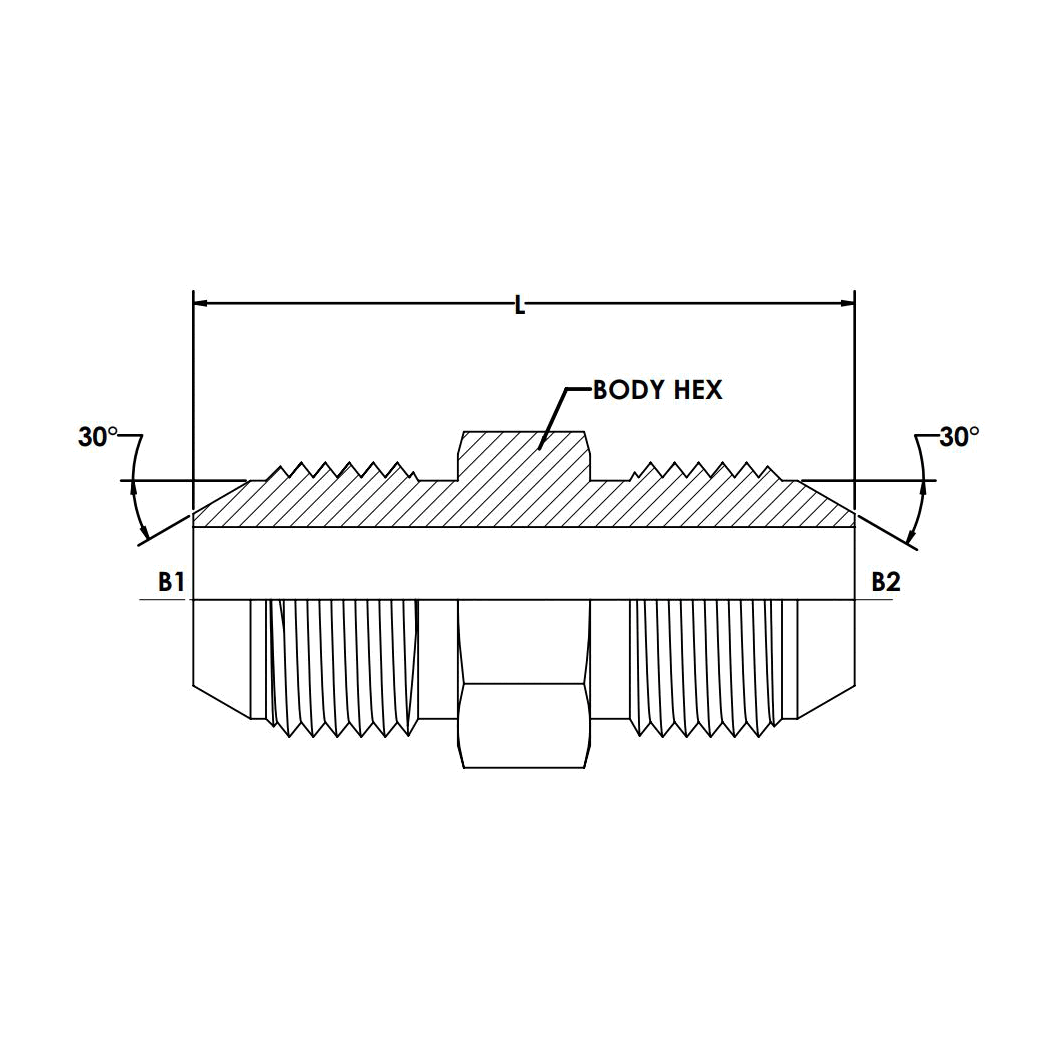

MJIS-MJIS STRAIGHT UNION
Description
Variations (5)
8088-02-02
$10.58Attribute: 8088-02-02 (02MJIS-02MJIS Straig...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | BSPP THREAD WITH 30 DEG FLARE |
| THREAD TYPE B2 | MALE JIS 30 DEGREE FLARE |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | JIS B 0202 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
8088-04-04
$20.93Attribute: 8088-04-04 (04MJIS-04MJIS Straig...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD DRILL B1 (MM) | 4.7 |
| THREAD SPECIFICATION B1 | BSPP THREAD WITH 30 DEG FLARE |
| THREAD TYPE B2 | MALE JIS 30 DEGREE FLARE |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 4.7 |
| THREAD SPECIFICATION B2 | JIS B 0202 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 35.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.081 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.771 |
8088-06-06
$36.97Attribute: 8088-06-06 (06MJIS-06MJIS Straig...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD DRILL B1 (MM) | 8.0 |
| THREAD SPECIFICATION B1 | BSPP THREAD WITH 30 DEG FLARE |
| THREAD TYPE B2 | MALE JIS 30 DEGREE FLARE |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 8.0 |
| THREAD SPECIFICATION B2 | JIS B 0202 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 42.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.106 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.925 |
8088-08-08
$35.20Attribute: 8088-08-08 (08MJIS-08MJIS Straig...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD DRILL B1 (MM) | 11.0 |
| THREAD SPECIFICATION B1 | BSPP THREAD WITH 30 DEG FLARE |
| THREAD TYPE B2 | MALE JIS 30 DEGREE FLARE |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | JIS B 0202 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.175 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.477 |
8088-12-12
$63.40Attribute: 8088-12-12 (12MJIS-12MJIS Straig...)
Stock Status: True
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD DRILL B1 (MM) | 16.5 |
| THREAD SPECIFICATION B1 | BSPP THREAD WITH 30 DEG FLARE |
| THREAD TYPE B2 | MALE JIS 30 DEGREE FLARE |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 16.5 |
| THREAD SPECIFICATION B2 | JIS B 0202 |
| BODY HEX (MM) | 30.0 |
| OVERALL LENGTH L (MM) | 54.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.319 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.966 |
General Attributes
| Connections | JIS |
|---|---|
| Shape | Straight |
