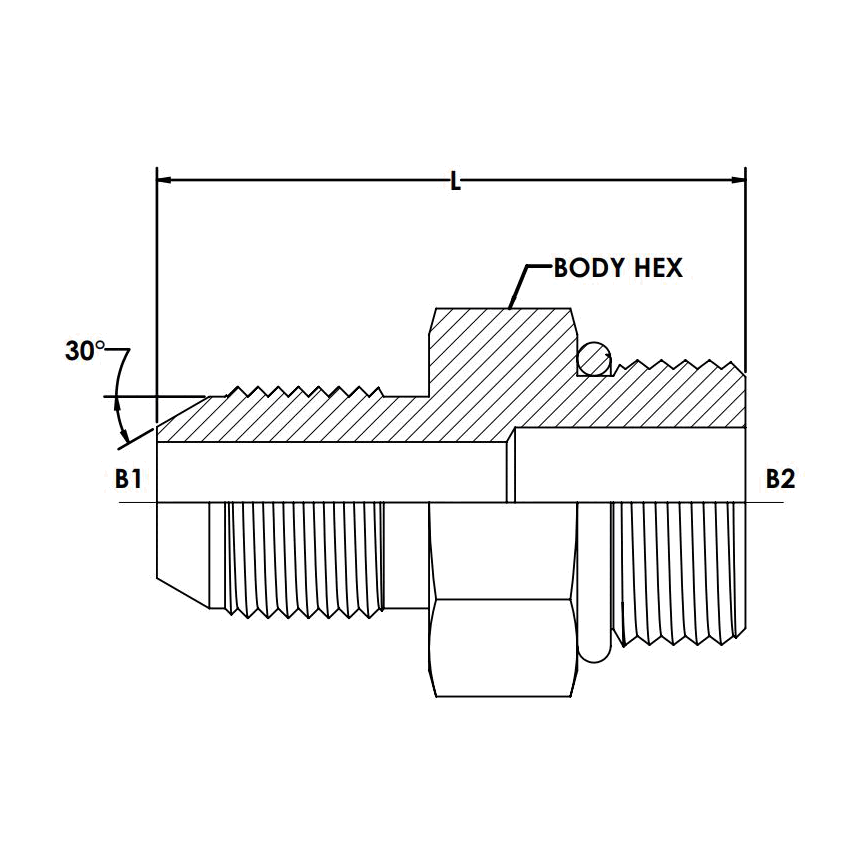

8084-O

Attribute: 8084-06-06-O (06MJIS-06MORB Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIS 30 DEGREE FLARE
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	BIS B 0202
THREAD TYPE B2	MALE SAE O-RING BOSS
THREAD SIZE B2	9/16-18
THREAD DRILL B2 (MM)	7.54
THREAD SPECIFICATION B2	SAE J514
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.608

Attribute: 8084-06-08-O (06MJIS-08MORB Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIS 30 DEGREE FLARE
THREAD SIZE B1	3/8-19
THREAD DRILL B1 (MM)	8.0
THREAD SPECIFICATION B1	BIS B 0202
THREAD TYPE B2	MALE SAE O-RING BOSS
THREAD SIZE B2	3/4-16
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	SAE J514
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	38.94
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.174
