Description

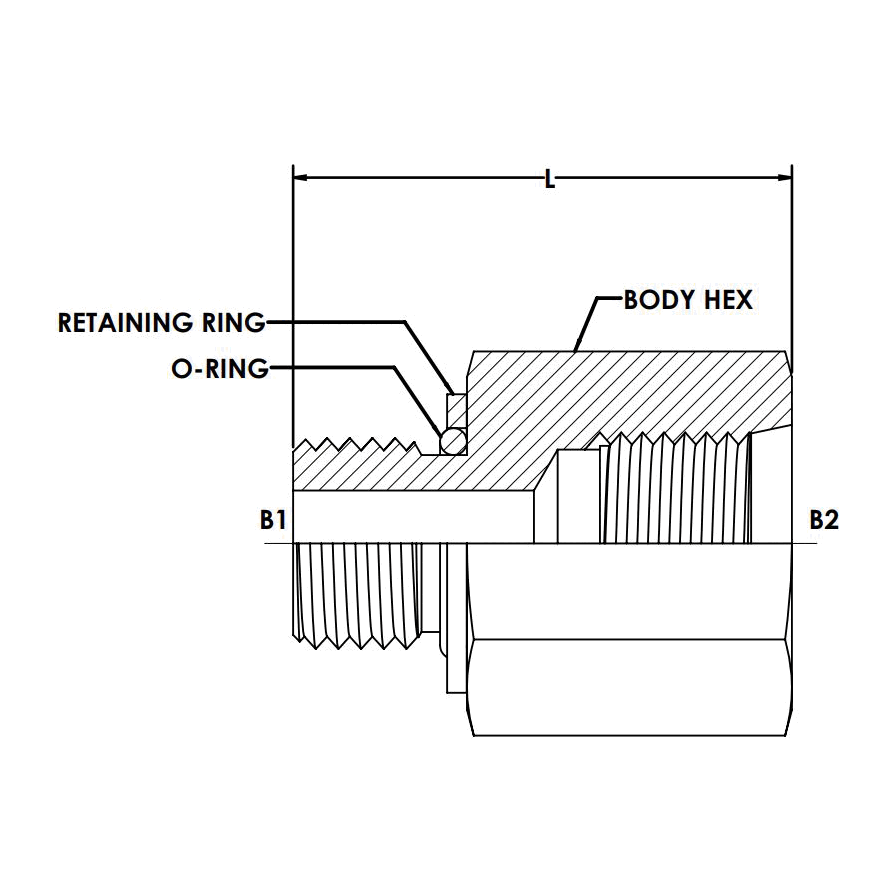

MM ORR-FORB STRAIGHT. MALE METRIC O-RING & RETAINING RING (ISO 9974 PORT THREAD)
Description
Variations (4)
7975-14-06
$10.44Attribute: 7975-14-06 (14MM ORR-06FORB Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC O-RING & RET RING |
|---|---|
| THREAD SIZE B1 | M14X1.5 |
| THREAD DRILL B1 (MM) | 7.0 |
| THREAD SPECIFICATION B1 | FOR ISO 9974 PORT |
| THREAD TYPE B2 | FEMALE SAE O-RING BOSS |
| THREAD SIZE B2 | 9/16-18 |
| THREAD SPECIFICATION B2 | SAE J514 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 33.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.031 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7975-18-08
$19.79Attribute: 7975-18-08 (18MM ORR-08FORB Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC O-RING & RET RING |
|---|---|
| THREAD SIZE B1 | M18X1.5 |
| THREAD DRILL B1 (MM) | 11.0 |
| THREAD SPECIFICATION B1 | FOR ISO 9974 PORT |
| THREAD TYPE B2 | FEMALE SAE O-RING BOSS |
| THREAD SIZE B2 | 3/4-16 |
| THREAD SPECIFICATION B2 | SAE J514 |
| BODY HEX (MM) | 25.4 |
| OVERALL LENGTH L (MM) | 35.05 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.156 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7975-22-10
$29.49Attribute: 7975-22-10 (22MM ORR-10FORB Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC O-RING & RET RING |
|---|---|
| THREAD SIZE B1 | M22X1.5 |
| THREAD DRILL B1 (MM) | 14.0 |
| THREAD SPECIFICATION B1 | FOR ISO 9974 PORT |
| THREAD TYPE B2 | FEMALE SAE O-RING BOSS |
| THREAD SIZE B2 | 7/8-14 |
| THREAD SPECIFICATION B2 | SAE J514 |
| BODY HEX (MM) | 28.58 |
| OVERALL LENGTH L (MM) | 38.1 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7975-33-16
$62.57Attribute: 7975-33-16 (33MM ORR-16FORB Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE METRIC O-RING & RET RING |
|---|---|
| THREAD SIZE B1 | M33X2.0 |
| THREAD SPECIFICATION B1 | FOR ISO 9974 PORT |
| THREAD TYPE B2 | FEMALE SAE O-RING BOSS |
| THREAD SIZE B2 | 1-5/16-12 |
| THREAD SPECIFICATION B2 | SAE J514 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.513 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | ORB, Metric |
|---|---|
| Shape | Straight |
