7754-O-ISO 6149

Attribute: 7754-12-27-O (12FP-27MM ISO 6149...)

Stock Status: True

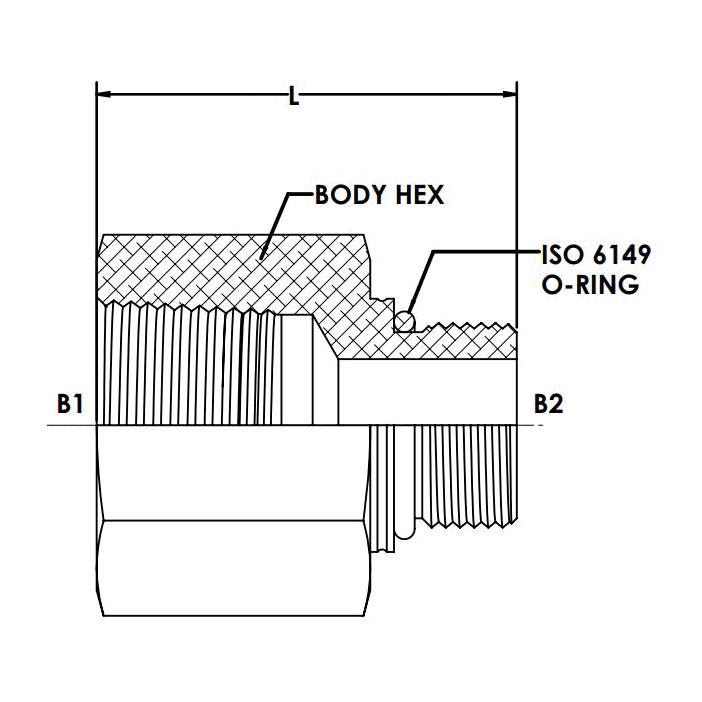

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M27X2.0
THREAD DRILL B2 (MM)	18.0
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	34.93
OVERALL LENGTH L (MM)	44.96
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.348
