7752-O-ISO 6149

Attribute: 7752-04-10-O (04FJS-10MM ISO 614...)

Stock Status: True

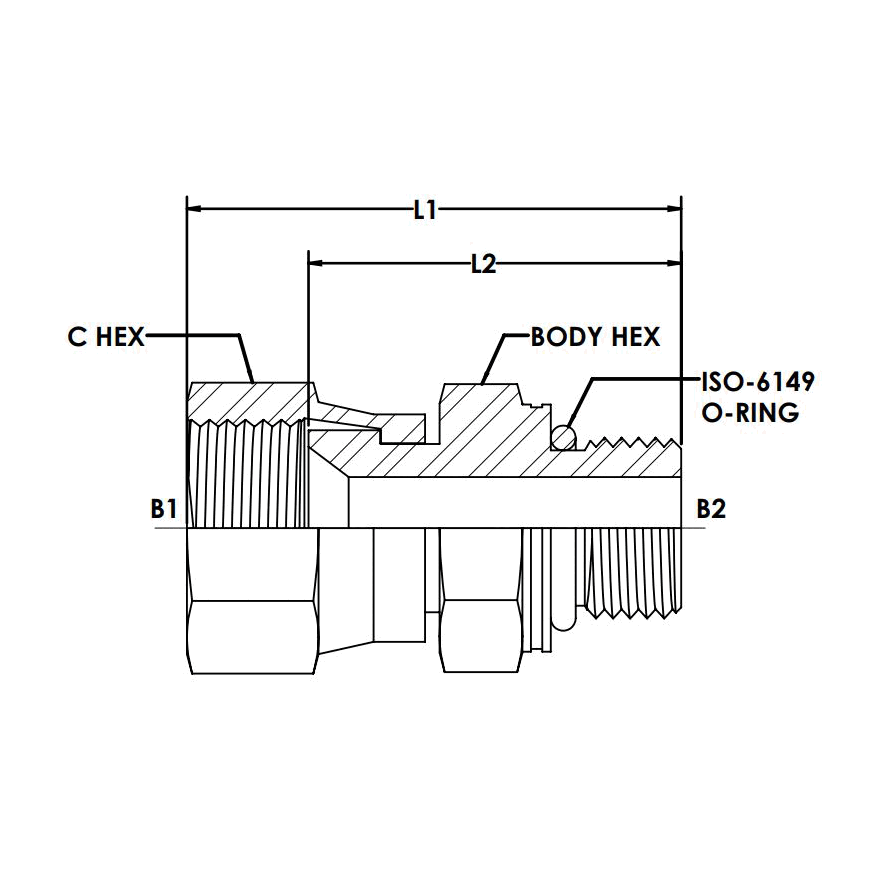

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	4.37
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	14.0
C HEX 1 (MM)	14.27
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	25.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.423
