7708-FG

Attribute: 7708-06-06 (06MJ-06MJIS Bulkhead...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIS 30 DEGREE FLARE
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.0
THREAD SPECIFICATION B2	JIS B 0202

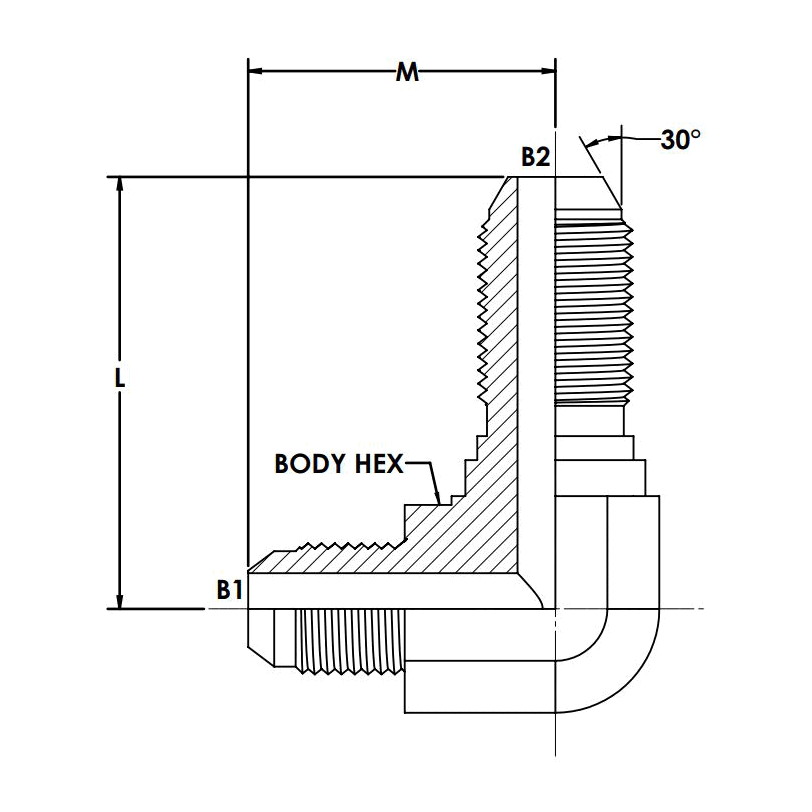

BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	32.51
CENTERLINE LENGTH L (MM)	45.72
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.689
