7701-ED

7701-04-10

$15.06

Attribute: 7701-04-10 (04MJ-10MM ED Straigh...)

Stock Status: True

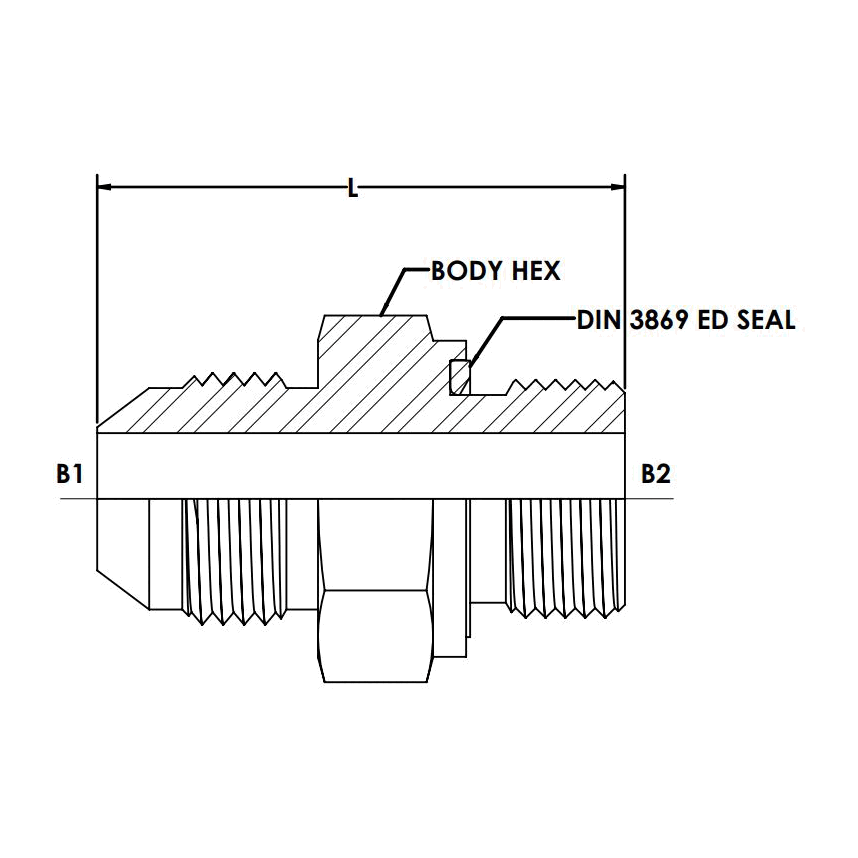

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	7,200
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.371

7701-04-10-SS

$160.22

Attribute: 7701-04-10-SS (04MJ-10MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	7,200
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-04-12-SS

$88.95

Attribute: 7701-04-12-SS (04MJ-12MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M12X1.5
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-04-14-SS

$66.45

Attribute: 7701-04-14-SS (04MJ-14MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M14X1.5
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-05-12

$17.17

Attribute: 7701-05-12 (05MJ-12MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	5.94
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.591

7701-05-12-VITON

$26.49

Attribute: 7701-05-12-VITON (05MJ-12MM ED S...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	5.94
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.591

7701-05-14

$87.16

Attribute: 7701-05-14 (05MJ-14MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M14X1.5
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-06-12-SS

$79.41

Attribute: 7701-06-12-SS (06MJ-12MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	7.54
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

7701-06-14

$18.86

Attribute: 7701-06-14 (06MJ-14MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	7.54
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

7701-06-14-SS

$418.83

Attribute: 7701-06-14-SS (06MJ-14MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	7.54
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

7701-06-16

$19.59

Attribute: 7701-06-16 (06MJ-16MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	35.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.037

7701-06-16-SS

$73.60

Attribute: 7701-06-16-SS (06MJ-16MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	35.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.037

7701-08-14

$33.99

Attribute: 7701-08-14 (08MJ-14MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M14X1.5
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-08-16

$22.40

Attribute: 7701-08-16 (08MJ-16MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	37.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.111

7701-08-18

$26.28

Attribute: 7701-08-18 (08MJ-18MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.402

7701-08-18-SS

$99.45

Attribute: 7701-08-18-SS (08MJ-18MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.402

7701-08-22

$17.23

Attribute: 7701-08-22 (08MJ-22MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M22X1.5
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-08-22-SS

$187.90

Attribute: 7701-08-22-SS (08MJ-22MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M22X1.5
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-10-18

$30.42

Attribute: 7701-10-18 (10MJ-18MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M18X1.5
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-10-22

$35.24

Attribute: 7701-10-22 (10MJ-22MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.29
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

7701-10-22-SS

$205.60

Attribute: 7701-10-22-SS (10MJ-22MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.29
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

7701-12-18

$39.83

Attribute: 7701-12-18 (12MJ-18MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M18X1.5
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7701-12-22

$45.09

Attribute: 7701-12-22 (12MJ-22MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.180

7701-12-27

$65.32

Attribute: 7701-12-27 (12MJ-27MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M27X2.0
THREAD DRILL B2 (MM)	15.47
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.187

7701-12-27-SS

$338.52

Attribute: 7701-12-27-SS (12MJ-27MM ED Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M27X2.0
THREAD DRILL B2 (MM)	15.47
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.187

7701-16-33

$67.24

Attribute: 7701-16-33 (16MJ-33MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M33X2.0
THREAD DRILL B2 (MM)	23.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	51.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.293

7701-20-42

$76.40

Attribute: 7701-20-42 (20MJ-42MM ED Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.38
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ED SEAL
THREAD SIZE B2	M42X2.0
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

Connections	JIC, Metric
Shape	Straight

ID	10149771
Category	Conversion Adapters

Description

Description

Variations (27)

7701-04-10

7701-04-10-SS

7701-04-12-SS

7701-04-14-SS

7701-05-12

7701-05-12-VITON

7701-05-14

7701-06-12-SS

7701-06-14

7701-06-14-SS

7701-06-16

7701-06-16-SS

7701-08-14

7701-08-16

7701-08-18

7701-08-18-SS

7701-08-22

7701-08-22-SS

7701-10-18

7701-10-22

7701-10-22-SS

7701-12-18

7701-12-22

7701-12-27

7701-12-27-SS

7701-16-33

7701-20-42

General Attributes

PDF Documents
