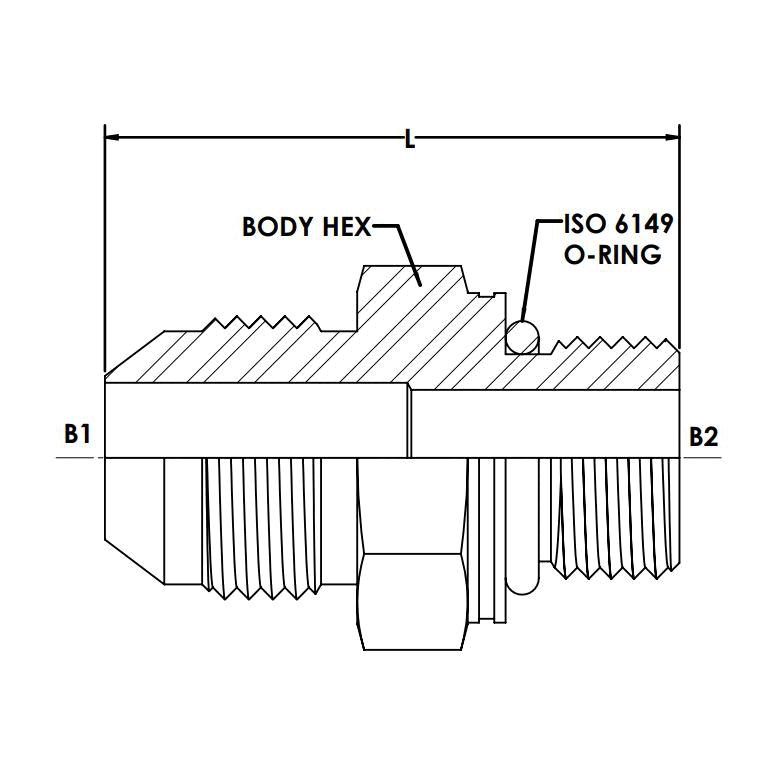

7640-O-ISO 6149

7640-04-10-O-R.025

$33.18

Attribute: 7640-04-10-O-R.025 (04MJ-10MMOR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	0.635
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	29.97
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.038
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.358

7640-04-12-O

$11.72

Attribute: 7640-04-12-O (04MJ-12MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	4.37
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	32.50
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.573

7640-04-14-O

$15.36

Attribute: 7640-04-14-O (04MJ-14MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	7.50
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.50
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.738

7640-04-16-O

$12.78

Attribute: 7640-04-16-O (04MJ-16MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M16X1.5
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

7640-06-10-O

$9.75

Attribute: 7640-06-10-O (06MJ-10MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	4.50
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	29.50
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.520

7640-06-14-O

$12.55

Attribute: 7640-06-14-O (06MJ-14MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	7.50
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.10
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.751

7640-06-18-O

$19.79

Attribute: 7640-06-18-O (06MJ-18MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	11.00
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	36.00
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.265

7640-08-10-O

$13.33

Attribute: 7640-08-10-O (08MJ-10MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M10X1.0
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7640-08-12-O

$14.18

Attribute: 7640-08-12-O (08MJ-12MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M12X1.5
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7640-08-16-O

$14.28

Attribute: 7640-08-16-O (08MJ-16MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.00
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.00
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

7640-08-18-O

$24.57

Attribute: 7640-08-18-O (08MJ-18MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	10.16
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	39.10
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.374

7640-08-22-O

$19.64

Attribute: 7640-08-22-O (08MJ-22MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.00
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	37.50
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.668

7640-10-22-O

$38.69

Attribute: 7640-10-22-O (10MJ-22MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.29
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	12.29
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.90
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.206
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.908

7640-12-22-O

$41.84

Attribute: 7640-12-22-O (12MJ-22MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.50
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

7640-12-22-O-VITON

$48.98

Attribute: 7640-12-22-O-VITON (12MJ-22MMOR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.50
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

7640-12-27-O

$33.32

Attribute: 7640-12-27-O (12MJ-27MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.50
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M27X2.0
THREAD DRILL B2 (MM)	15.50
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.00
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.331
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7640-16-27-O

$72.40

Attribute: 7640-16-27-O (16MJ-27MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M27X2.0
THREAD DRILL B2 (MM)	18.00
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	50.50
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

7640-16-33-O

$67.34

Attribute: 7640-16-33-O (16MJ-33MMOR ISO 61...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ISO 6149 O-RING
THREAD SIZE B2	M33X2.0
THREAD DRILL B2 (MM)	23.00
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	52.70
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.544
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.406

Connections	JIC, Other
Shape	Straight

ID	10149710
Category	Conversion Adapters

Description

Description

Variations (18)

7640-04-10-O-R.025

7640-04-12-O

7640-04-14-O

7640-04-16-O

7640-06-10-O

7640-06-14-O

7640-06-18-O

7640-08-10-O

7640-08-12-O

7640-08-16-O

7640-08-18-O

7640-08-22-O

7640-10-22-O

7640-12-22-O

7640-12-22-O-VITON

7640-12-27-O

7640-16-27-O

7640-16-33-O

General Attributes

PDF Documents
