7463-NWO-FG

Attribute: 7463-08-06-08-08-NWO-FG (08MAORB...)

Stock Status: True

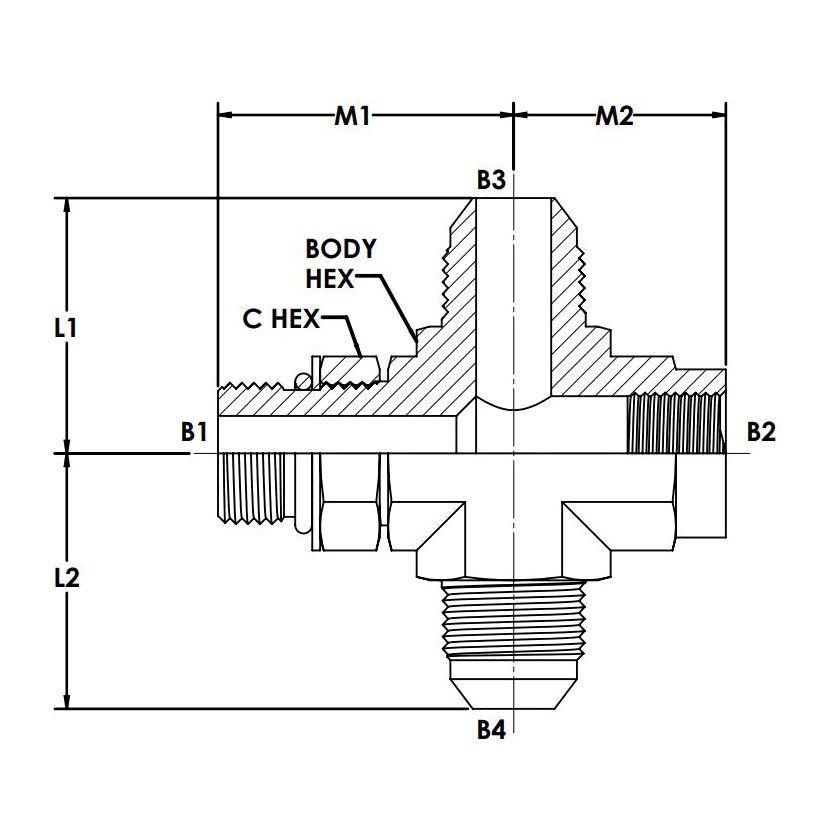

THREAD TYPE B1	MALE SAE ADJUSTABLE ORING BOSS
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	3/4-16
THREAD SPECIFICATION B3	SAE J514
THREAD TYPE B4	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B4	3/4-16
THREAD SPECIFICATION B4	SAE J514
BODY HEX (MM)	22.22
C HEX 1 (MM)	22.22
CENTERLINE LENGTH M1 (MM)	39.12
CENTERLINE LENGTH M2 (MM)	28.07
CENTERLINE LENGTH L1 (MM)	33.78
CENTERLINE LENGTH L2 (MM)	33.78
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: 7463-10-06-10-10-NWO-FG (10MAORB...)

Stock Status: True

THREAD TYPE B1	MALE SAE ADJUSTABLE ORING BOSS
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	7/8-14
THREAD SPECIFICATION B3	SAE J514
THREAD TYPE B4	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B4	7/8-14
THREAD SPECIFICATION B4	SAE J514
BODY HEX (MM)	22.22
C HEX 1 (MM)	25.4
CENTERLINE LENGTH L1 (MM)	36.83
CENTERLINE LENGTH L2 (MM)	36.83
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
