7404-NWO-FG-ORR

7404-02-02-02-NWO-SS

$231.51

Attribute: 7404-02-02-02-NWO-SS (02MBSPP-02...)

Stock Status: True

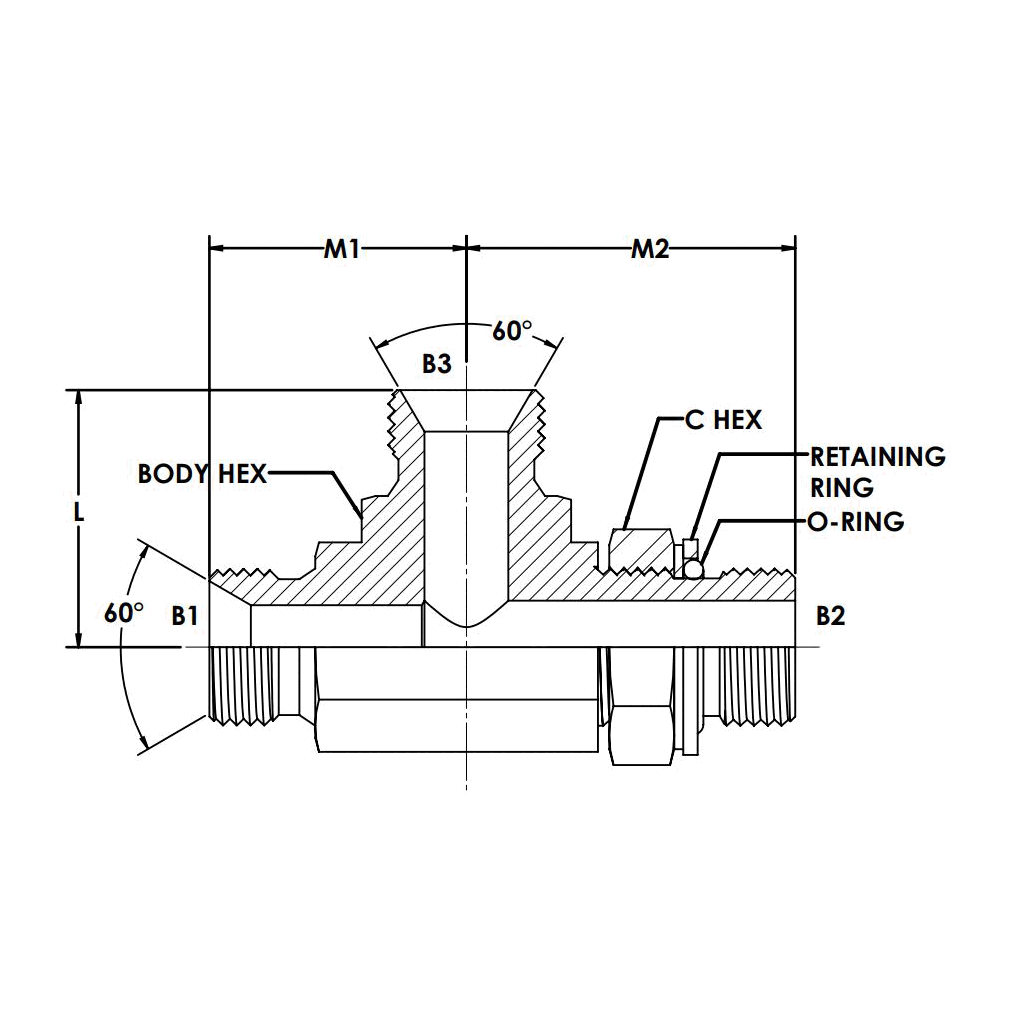

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/8-28
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/8-28
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
HEX C 1 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7404-04-04-04-NWO-FG

$23.18

Attribute: 7404-04-04-04-NWO-FG (04MBSPP-04...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH L (MM)	27.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.387

7404-04-04-04-NWO-SS

$259.51

Attribute: 7404-04-04-04-NWO-SS (04MBSPP-04...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/4-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/4-19
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH L (MM)	27.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.387

7404-06-04-06-NWO-FG

$63.35

Attribute: 7404-06-04-06-NWO-FG (06MBSPP-04...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	34.0
CENTERLINE LENGTH L (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.523

7404-06-06-06-NWO-FG

$93.16

Attribute: 7404-06-06-06-NWO-FG (06MBSPP-06...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
HEX C 1 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7404-06-06-06-NWO-SS

$352.82

Attribute: 7404-06-06-06-NWO-SS (06MBSPP-06...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/8-19
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/8-19
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	34.0
CENTERLINE LENGTH L (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.523

7404-08-06-08-NWO-FG

$130.43

Attribute: 7404-08-06-08-NWO-FG (08MBSPP-06...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
HEX C 1 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

7404-08-08-08-NWO-FG

$95.40

Attribute: 7404-08-08-08-NWO-FG (08MBSPP-08...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	43.5
CENTERLINE LENGTH L (MM)	34.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.874

7404-08-08-08-NWO-SS

$472.32

Attribute: 7404-08-08-08-NWO-SS (08MBSPP-08...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1/2-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1/2-14
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	43.5
CENTERLINE LENGTH L (MM)	34.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.874

7404-12-12-12-NWO-FG

$135.47

Attribute: 7404-12-12-12-NWO-FG (12MBSPP-12...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/4-14
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	33.3
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	53.0
CENTERLINE LENGTH L (MM)	43.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.156
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.580

7404-12-12-12-NWO-SS

$595.55

Attribute: 7404-12-12-12-NWO-SS (12MBSPP-12...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	3/4-14
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	3/4-14
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	33.3
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	53.0
CENTERLINE LENGTH L (MM)	43.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.580

7404-16-16-16-NWO-FG

$178.54

Attribute: 7404-16-16-16-NWO-FG (16MBSPP-16...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-11
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.27
HEX C 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	46.0
CENTERLINE LENGTH M2 (MM)	56.0
CENTERLINE LENGTH L (MM)	46.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.117

7404-16-16-16-NWO-SS

$821.44

Attribute: 7404-16-16-16-NWO-SS (16MBSPP-16...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-11
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.27
HEX C 1 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	46.0
CENTERLINE LENGTH M2 (MM)	56.0
CENTERLINE LENGTH L (MM)	46.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.117

7404-20-20-20-NWO-SS

$1,252.66

Attribute: 7404-20-20-20-NWO-SS (20MBSPP-20...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/4-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-1/4-11
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
HEX C 1 (MM)	50.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

7404-24-24-24-NWO-SS

$1,848.17

Attribute: 7404-24-24-24-NWO-SS (24MBSPP-24...)

Stock Status: True

THREAD TYPE B1	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B1	1-1/2-11
THREAD SPECIFICATION B1	60 DEG SEAT SWIVEL CONNECTION
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B3	1-1/2-11
THREAD SPECIFICATION B3	60 DEG SEAT SWIVEL CONNECTION
HEX C 1 (MM)	55.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	BSP
Shape	Tee

ID	10149640
Category	Conversion Adapters

Description

Description

Variations (15)

7404-02-02-02-NWO-SS

7404-04-04-04-NWO-FG

7404-04-04-04-NWO-SS

7404-06-04-06-NWO-FG

7404-06-06-06-NWO-FG

7404-06-06-06-NWO-SS

7404-08-06-08-NWO-FG

7404-08-08-08-NWO-FG

7404-08-08-08-NWO-SS

7404-12-12-12-NWO-FG

7404-12-12-12-NWO-SS

7404-16-16-16-NWO-FG

7404-16-16-16-NWO-SS

7404-20-20-20-NWO-SS

7404-24-24-24-NWO-SS

General Attributes

PDF Documents
