Description

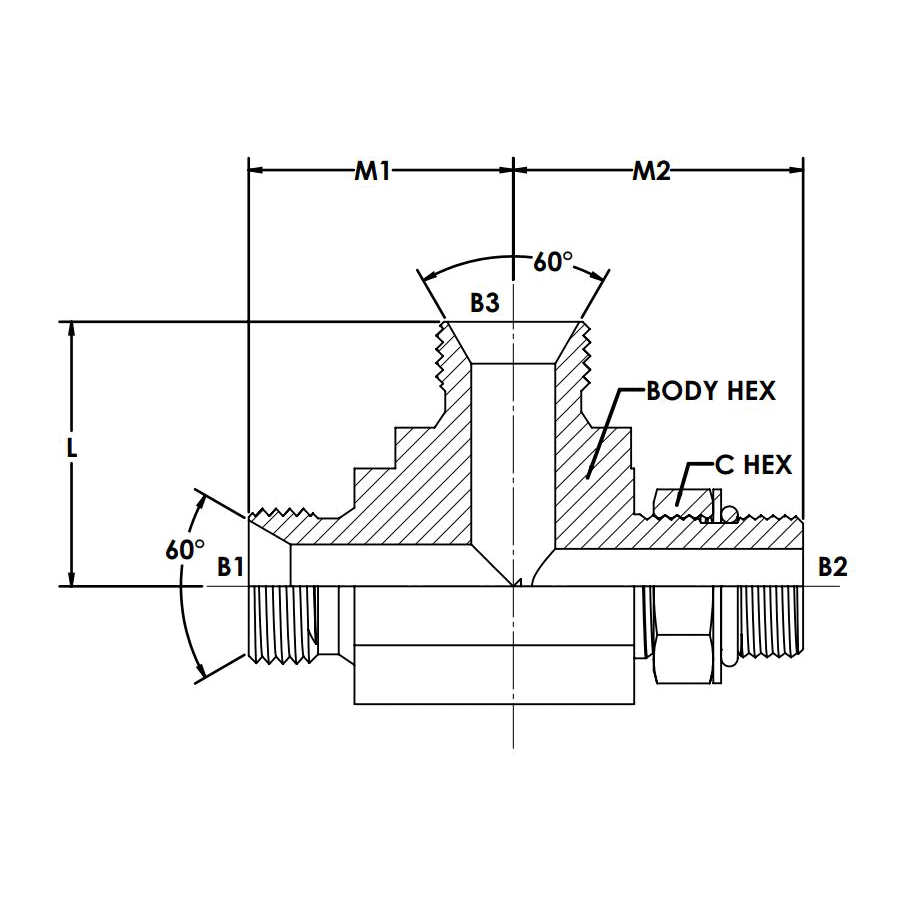

MBSPP-MAORB-MBSPP TEE. MALE SAE ADJUSTABLE O-RING BOSS
Description
Variations (7)
7406-02-04-02-NWO-FG
$46.12Attribute: 7406-02-04-02-NWO-FG (02MBSPP-04...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD SIZE B2 | 7/16-20 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B3 | 1/8-28 |
| THREAD SPECIFICATION B3 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7406-04-06-04-NWO-FG
$54.54Attribute: 7406-04-06-04-NWO-FG (04MBSPP-06...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD SIZE B2 | 9/16-18 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B3 | 1/4-19 |
| THREAD SPECIFICATION B3 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7406-06-08-06-NWO-FG
$70.09Attribute: 7406-06-08-06-NWO-FG (06MBSPP-08...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD SIZE B2 | 3/4-16 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B3 | 3/8-19 |
| THREAD SPECIFICATION B3 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7406-08-10-08-NWO-FG
$83.01Attribute: 7406-08-10-08-NWO-FG (08MBSPP-10...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD SIZE B2 | 7/8-14 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B3 | 1/2-14 |
| THREAD SPECIFICATION B3 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7406-12-10-12-NWO-FG
$142.02Attribute: 7406-12-10-12-NWO-FG (12MBSPP-10...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD SIZE B2 | 7/8-14 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B3 | 3/4-14 |
| THREAD SPECIFICATION B3 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7406-12-12-12-NWO-FG
$129.12Attribute: 7406-12-12-12-NWO-FG (12MBSPP-12...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD SIZE B2 | 1-1/16-12 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B3 | 3/4-14 |
| THREAD SPECIFICATION B3 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7406-16-16-16-NWO-FG
$166.00Attribute: 7406-16-16-16-NWO-FG (16MBSPP-16...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD SIZE B2 | 1-5/16-12 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B3 | 1-11 |
| THREAD SPECIFICATION B3 | 60 DEG SEAT SWIVEL CONNECTION |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | ORB, BSP |
|---|---|
| Shape | Tee |
