Description

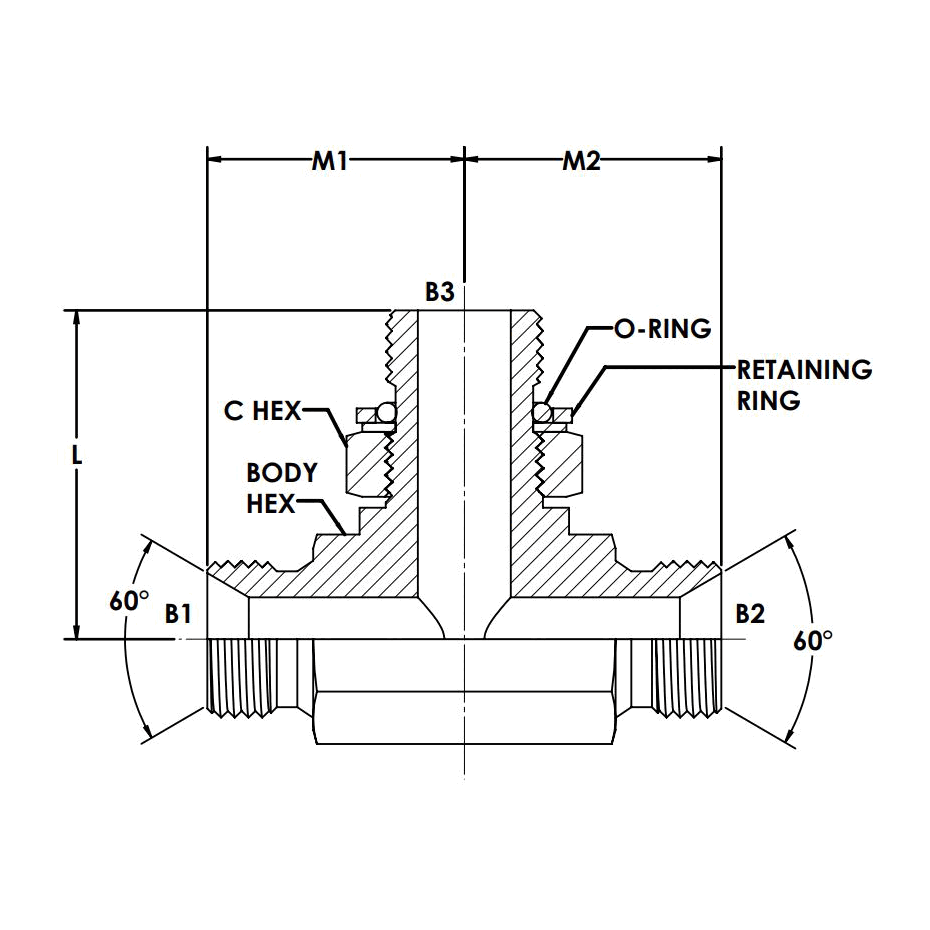

MBSPP-MBSPP-MBSPPAORB RR TEE. MALE BSPP ADJUSTABLE WITH O-RING AND RETAINING RING
Description
Variations (16)
7403-02-02-02-NWO-FG
$57.77Attribute: 7403-02-02-02-NWO-FG (02MBSPP-02...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1/8-28 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-02-02-02-NWO-SS
$231.51Attribute: 7403-02-02-02-NWO-SS (02MBSPP-02...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1/8-28 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-04-04-04-NWO-FG
$29.73Attribute: 7403-04-04-04-NWO-FG (04MBSPP-04...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1/4-19 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-04-04-04-NWO-SS
$259.51Attribute: 7403-04-04-04-NWO-SS (04MBSPP-04...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1/4-19 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-06-06-04-NWO-FG
$111.77Attribute: 7403-06-06-04-NWO-FG (06MBSPP-06...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1/4-19 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-06-06-06-NWO-FG
$27.61Attribute: 7403-06-06-06-NWO-FG (06MBSPP-06...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 3/8-19 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-06-06-06-NWO-SS
$352.82Attribute: 7403-06-06-06-NWO-SS (06MBSPP-06...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 3/8-19 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-08-08-06-NWO-FG
$130.43Attribute: 7403-08-08-06-NWO-FG (08MBSPP-08...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 3/8-19 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-08-08-08-NWO-FG
$47.01Attribute: 7403-08-08-08-NWO-FG (08MBSPP-08...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1/2-14 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-08-08-08-NWO-SS
$472.32Attribute: 7403-08-08-08-NWO-SS (08MBSPP-08...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1/2-14 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-12-12-12-NWO-FG
$80.28Attribute: 7403-12-12-12-NWO-FG (12MBSPP-12...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 3/4-14 |
| THREAD SPECIFICATION B3 | BS 5200 |
| BODY HEX (MM) | 33.32 |
| HEX C 1 (MM) | 36 |
| CENTERLINE LENGTH M1 (MM) | 43 |
| CENTERLINE LENGTH M2 (MM) | 43 |
| CENTERLINE LENGTH L (MM) | 53 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 1.150 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 13.161 |
7403-12-12-12-NWO-SS
$595.55Attribute: 7403-12-12-12-NWO-SS (12MBSPP-12...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 3/4-14 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-16-16-16-NWO-FG
$219.88Attribute: 7403-16-16-16-NWO-FG (16MBSPP-16...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1-11 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-16-16-16-NWO-SS
$821.44Attribute: 7403-16-16-16-NWO-SS (16MBSPP-16...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1-11 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,700 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-20-20-20-NWO-SS
$1,252.66Attribute: 7403-20-20-20-NWO-SS (20MBSPP-20...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-1/4-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1-1/4-11 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7403-24-24-24-NWO-SS
$1,848.17Attribute: 7403-24-24-24-NWO-SS (24MBSPP-24...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1-1/2-11 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-1/2-11 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B3 | 1-1/2-11 |
| THREAD SPECIFICATION B3 | BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Tee |
PDF Documents
No PDF documents scraped.
